Groundnut Processing Equipment Efficiency Groundnut Shells Machine
- 500 Piece / Pieces per Month
- Any Port of China
- T/T L/C D/P D/A Credit Card PayPal Other
- 15 days
You May Like
-
Peanut Shelling Machine Peanut Shelling Machine
-
Groundnut Separator Machine Diesel Engine Home Use
-
Automatic Peanut Sheller Shelling Machine Peanut Shucker
-
Threshing Machine Peanut Groundnut Shelling Machine
-
Diesel Engine Home Use Nut Shelling Machine
-
Shelling Machine Peanut Shucker Groundnut Shell Removing Machine
Product Details
| Place of Origin | China |
Wooden packing
Product Description
Equipment use
The peanut shelling and cleaning machine is an environmentally friendly machine. After removing the heavy debris such as stones, shovel, iron blocks and the like and debris and floating dust, the peanut fruit is transported by the wind transport device to the shelling system for shelling. A mechanical device that separates the kernel from the shell. The machine is unique in design, with three-roll shelling; two sets of stripping rods with different shapes; sorting and sorting screen; equipped with spring flapping door that can discharge capsules.
It is widely used in peanuts with different sizes and different wet and dry conditions. It has high shelling efficiency, low content in the kernel and low breakage rate. It is suitable for indoor installation and factory operation.
working principle
The peanut shelling unit consists of a de-doping system and a shelling system.
The de-missing system consists of an electric motor, a feed hopper, a sorting screen, a crankshaft, a suction fan, and a wind transport device.
The peanut-containing peanuts flow from the feed hopper into the sorting screen, and the debris and floating dust containing the peanuts are sucked out of the machine under the action of the crankshaft and the suction fan. The heavy impurities are sorted through a sorting sieve, and flow out from the sieve surface to the exhaust port. The depleted peanut fruit flows from the screen surface through the discharge port into the air transport device and is transported to the hopper of the shelling system.
The shelling system consists of an electric motor, a feeding hopper, a shelling mechanism, a sorting sorting screen, a crankshaft, a suction fan, an A transporting device, and a B transporting device.
Peanut shelling and cleaning unit

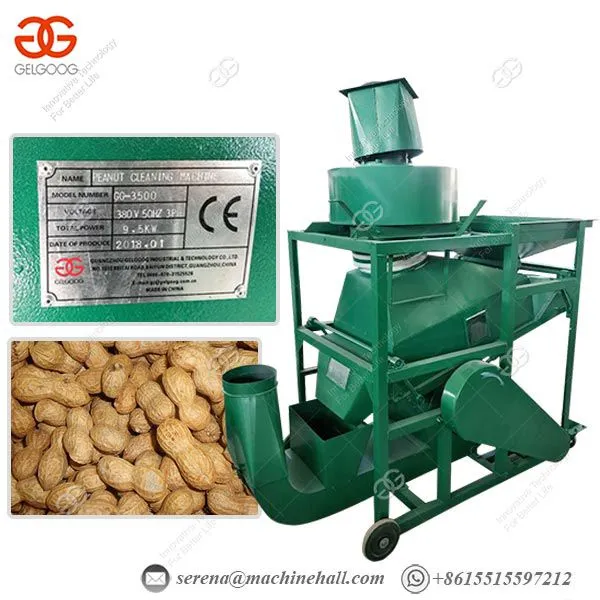

Model | GG-3500 | GG-4500 | GG-6000 |
Capacity | 3500KG/H | 4500KG/H | 6000KG/H |
Nut Shelling Rate | More than 98% | More than 98% | More than 98% |
Breaking Rate | Less than 3.8% | Less than 3.8% | Less than 2.8% |
Loss Rate | Less than 0.5% | Less than 0.5% | Less than 0.5% |
Damage Rate | Less than 3% | Less than 3% | Less than 3% |
Impurity Rate | Less than 2% | Less than 1% | Less than 0.4% |
Power | Cleaner: 4KW, Grade 2; 3KW, Grade 4 Sheller: 7.5KW, Grade 6; 7.5KW, Grade 4 | Cleaner:5.5KW, Grade 2; 4KW, Grade 4 Sheller: 7.5KW, Grade 6; 3KW, Grade 4, 7.5KW, Grade 2. | Cleaner: 5.5KW, Grade 2; 5.5KW, Grade 4 Sheller: 15KW, Grade 6; 5.5KW, Grade 4, 15KW, Grade 2. |
Dimension | 3010*1360*2820mm | 3010*4350*2940 | 3750*4500*3530mm |
Weight | 1100kg | 1640kg | 2760kg |
