Home > Products > Impact Tester > Impact Testing Machine

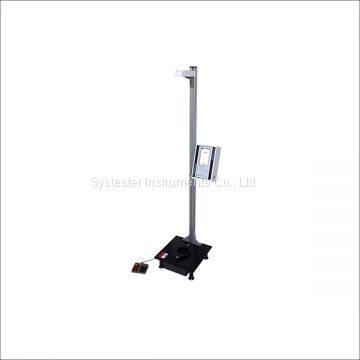

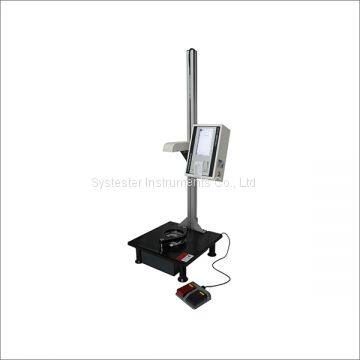

Impact Testing Machine
- 1000 Set / Sets per Month
- Jinan
- T/T L/C
- 8 days
Product Details
Place of Origin: | China | Model Number: | FDI-8001 | Power: | Electronic |
Usage: | Auto Testing Machine |
Product Description
Product Details
Application:
For the determination of the energy causes the plastic film to fail under specified conditions of impact of a free-falling dart.
Features:
1. Our own patent technology.
2. Large size touch screen operation.
3. Designed based on various standards.
4. Falling ball test available.
5. Method A, Method B, customized method available.
6. Test results, curve display.
7. Result multiple units display.
8. Micro-printer prints mini-report.
9. High performance pneumatic sample clamp.
10. Foot pedal operation available.
11. Safety cover.
12. Result statistics.
13. RS232 communication port. (optional)
Technical Indexes:
Test method | Method A, method B, others |
Dart mass | Method A |
Method B | 300~2000g |
Result accuracy | 0.1g ( 0.1J ) |
Sample clamp | Pneumatic. |
Dart release | Electromagnetism |
Gas source | 0.5MPa~1.0MPa (self-provide) |
Sample size | not less 150mm×150mm |
Unit dimension | Method A |
Method B | 450mm(L)×450mm(B)×2160mm(H) |
Power supply | AC 220V 50Hz |
Net weight | 70kg |
