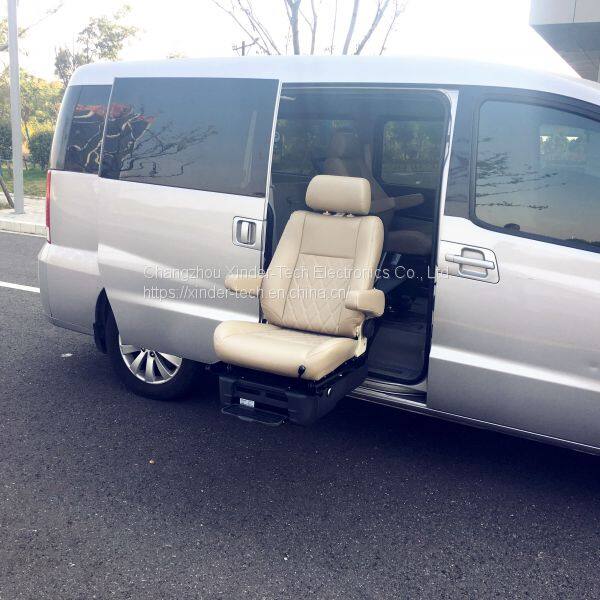

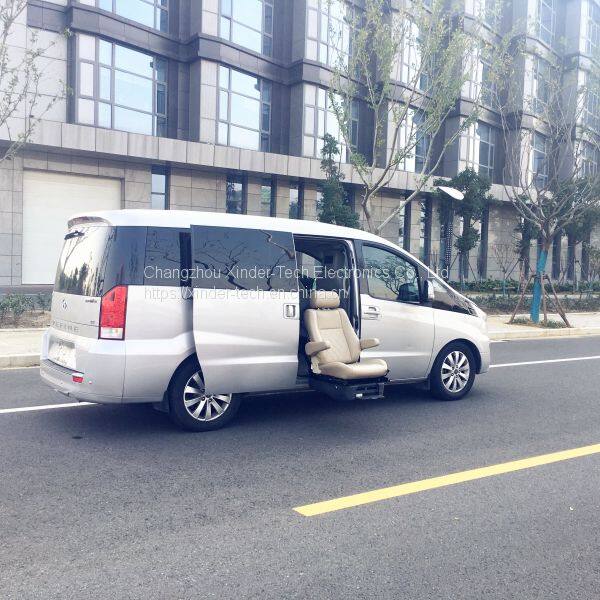

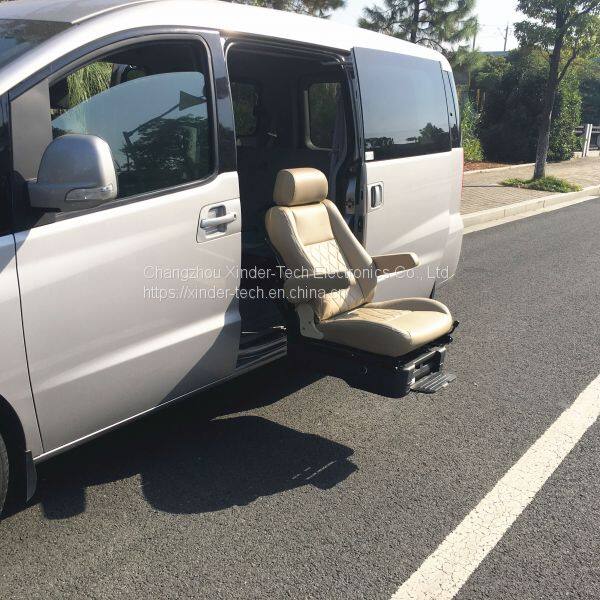

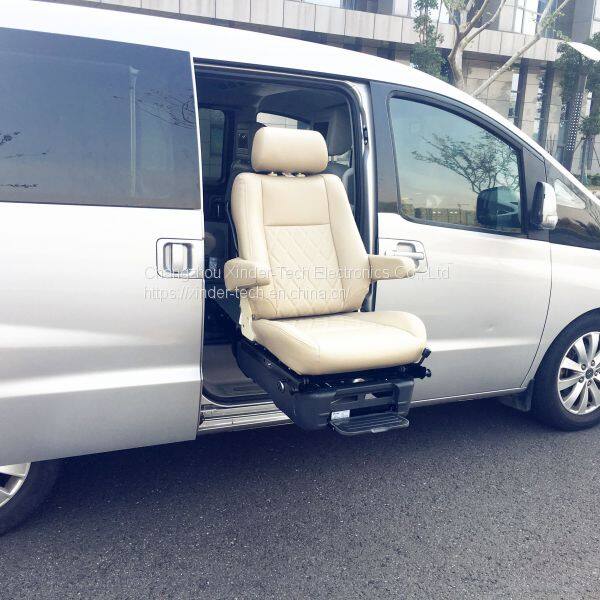

S-LIFT Pro Programmable Swivel Lifting Seat for Toyota MVP

1.Introduction

S-LIFT Pro swivel seat is a kind of equipment to make easy entrance of SUV, MVP and etc. It can helps the old or the disabled to get seated safely,conveniently and comfortably.

It is operated by wired remote control. switches on seat or by your mobilephone.

this seat is programmabled by the wired remote control including programming the movement of the lengthwise,rotation and seat backrest angle.

when the power is low, the seat will lock itself and give the warning. if the power is cut off when the seat is running. after repower the seat can be recovered without fault.

turning direction can be clockwise or anti-clockwise.

Advantages:

passed EMC TEST

manaul emergency function

door interlock function

programmable by the wired remote control

automatic filter

auto sleep mode

use the wired remote control to backup or copy the program to other seats without computer

can be controlled by wores remote control, switches on seat or your mobilephone.

Technical Function:

• Voltage: 12Vdc;

• Power:120w;

• Loading Capacity: 150kg;

• Lowering Height: 395mm;

• Rotating angle: 0-113;
