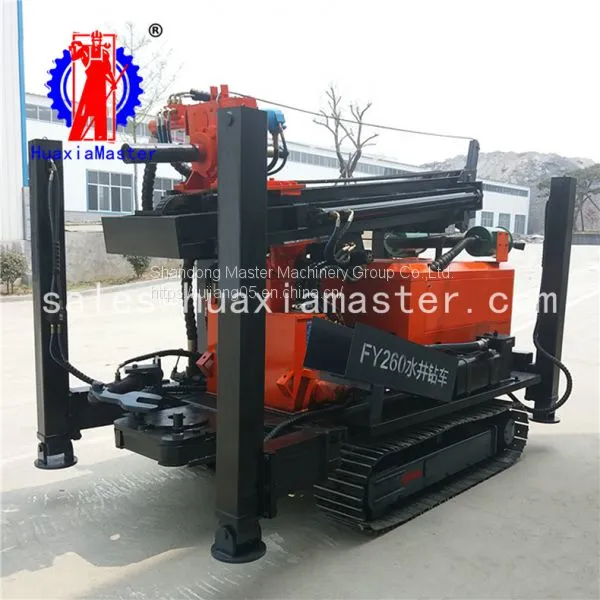

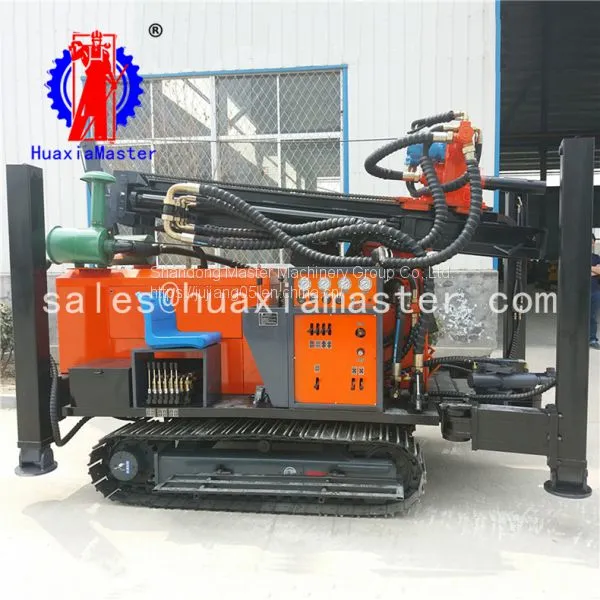

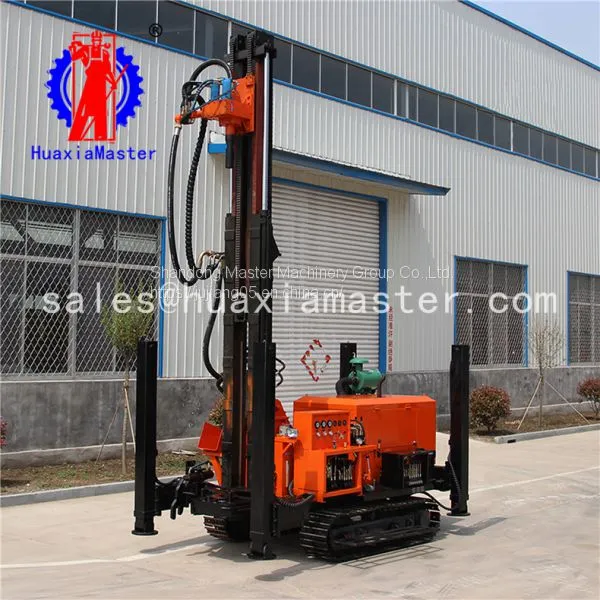

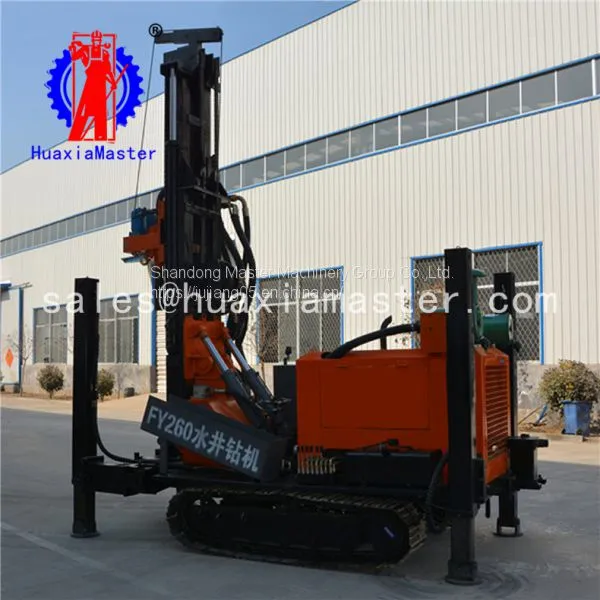

New Type FY260 Crawler Mounted Impact Rock Core Drilling Rig Fast To Drill Water Well
US$ 1300 - 1500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia Master
Place of Origin:
China
Model Number:
FY260
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
3 days
Related Products
-
FY300 Crawler Type Pneumatic Drilling Rig Pneumatic Rock DrillUS$ 1300 - 1500MOQ: 1 Set -
FY400 400 Meter Power Hammer Impacted Crawler Air Water Drilling RigUS$ 1300 - 1500MOQ: 1 Set
-
Made In China FY600 Crawler Rock Core Drilling Rig Water Well Drilling MachineUS$ 1300 - 1500MOQ: 1 Set
-
KQZ-200D Electric And Air Dth Drilling Rig Water Well Drill Machine On SaleUS$ 1300 - 1500MOQ: 1 Set
-
In Stock HZ-130Y Portable Hydraulic Water Well Drilling Rig for SaleUS$ 1300 - 1500MOQ: 1 Set
Brand Name
Huaxia Master
Place of Origin
China
Model Number
FY260
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Weight
drilling rig
Dimension(L*W*H)
3900*1950*2550mm
Voltage
Diesel
Condition
New
Power(W)
85kw
CNC or Not
CNC
Drilling Speed
water well drilling rig
1. The applications of FY260 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling,
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2. The specifications of FY260 crawler pneumatic water well drilling rig
Model |
FY260 |
|
Gross weight |
t |
6.2 |
External dimension |
mm |
3900*1950*2550 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
260 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.0 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
85 |
Rotary speed |
rpm |
40-70 |
Rotation torque |
n.m |
7000-9000 |
