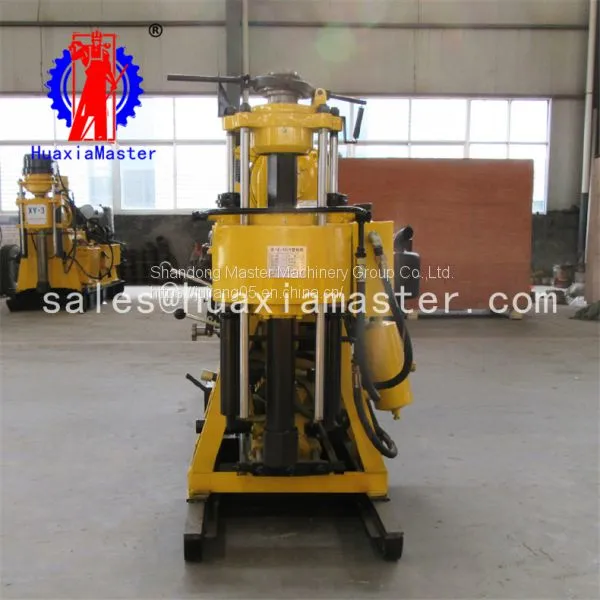

Help CenterHZ-130Y Hydraulic Rotary Drilling Rig Small Portable Drilling Machine for Sale
Related Products
-
Hot Sale! XYX-130 Wheel Type 130meters Hydraulic Water Well Drilling RigUS$ 1300 - 1500MOQ: 1 Set -
Host Sale XYD-130 Crawler Hydraulic Rotary Drilling Rig Truck Mounted Water Well Drilling Rig for SaleUS$ 1300 - 1500MOQ: 1 Set
-
Convenient Loading and Unloading XYD-200 Crawler Drill / Crawler Drilling Machine / Borewell Drilling MachineUS$ 1300 - 1500MOQ: 1 Set
-
XYC-200 Tractor Mounted Drilling Rig / Rotary Water Well Drilling Rig / Drilling Rig Water WellUS$ 1300 - 1500MOQ: 1 Set
-
Easy and Efficiency Tractor Mounted Drilling Rig XYC-200A / Drilling Machine Water / Water Well Auger DrillUS$ 1300 - 1500MOQ: 1 Set
1.Applications of HZ-130Y hydraulic water well drilling rig
· civil water well
· geological survey and exploration
· basic exploration for roads
· high-rise buildings
· inspection holes for various concrete structures
· river embankments
· grouting holes
· direct grouting,
· ground temperature central air conditioners.
2. Features of HZ-130Y hydraulic water well drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Specifications of HZ-130Y hydraulic water well drilling rig
HZ-130Y hydraulic water well drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142、285、570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
