Hot Tensile Tester , Benchtop Tension Tester , Universal Tester
US$ 499 - 1,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DahoMeter
Place of Origin:
Guangdong, China
Model Number:
Universal Tester , Tensile Tester
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen for Tensile Tester Benchtop Tension Tester Universal Tester
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Desktop Rubber Tensile Testing Machine , Rubber And Plastic Tensile Testing Machine ChinaUS$ 999 - 3,999MOQ: 1 Set -
Metal Bending Strength Testing Instrument , Metal Tensile Testing MachineUS$ 499 - 1,999MOQ: 1 Set
-
Tensile Strength Testing Machine 300knUS$ 499 - 1,999MOQ: 1 Set
-
Universal Measuring Instruments , Universal Testing Machine 100kn PriceUS$ 499 - 1,999MOQ: 1 Set
-
Popular Supplier Bend Tensile Machine , Tensile Testing EquipmentUS$ 499 - 1,999MOQ: 1 Set
Brand Name
DahoMeter
Place of Origin
Guangdong, China
Model Number
Universal Tester , Tensile Tester
Power
Other
Usage
Universal Testing Machine
Product Description
Hot Tensile Tester , Benchtop Tension Tester , Universal Tester
Capacity:
1KN-5KN
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
ASTM, ISO, DIN, GB and other international standards.

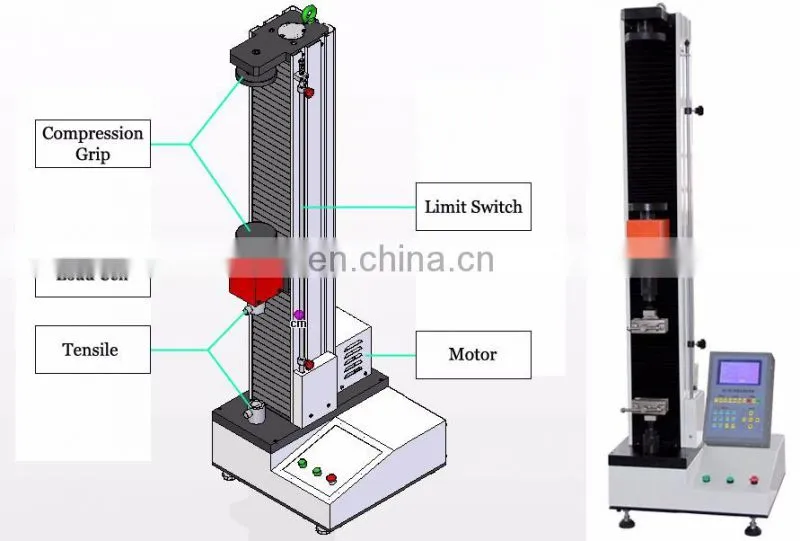

Main Unit Feature:
- Adopt single column structure, lower for tensile, upper for compression, double space. The beam is step less lifting, light but rigid.
- Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
- The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
- The shield plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
- The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
- The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
- Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
- Adopt bolt type grip installation, make the grip replace easier.
Main Technical Parameters:
- Model:WDW-05S
- Max. load:500N
- Structure:Single column double spaces
- Control method:Single chip control
- Load accuracy:1 class
- Load range:2%~100%F•S/0.4%-100% FS
- Displacement Resolution:0.01mm
- Test speed:0.05-500mm/min(can be customized)
- Tensile space:600mm (can be customized)
- Compression space:600mm (can be customized)
- Power supply:AC220V±10%,50Hz(can be customized)
- Grips:Wedge type, plate type and other grips as consumer’s demand
- Dimension:520*390*1690mm
- Weight:124 kg
Main Accessories:
- High strength main unit-----------------------------------------------------------------1 set
- High precision arc synchronous deceleration system----------------------------1 suit
- High precision ball screw---------------------------------------------------------------2 pcs
- Motor and Control system (Panasonic optional)----------------------------------1 set
- High precision load sensor(CELTRON optional)------------------------------------1 pc
- High accuracy photoelectric encoder-------------------------------------------------1 pc
- Tensile fixture ------------------------------------------------------------------------------1 suit
- Compression fixture ----------------------------------------------------------------------1 suit
- LCD controller-------------------------------------------------------------------------------1 set
- Printer(optional)----------------------------------------------------------------------------1 set
