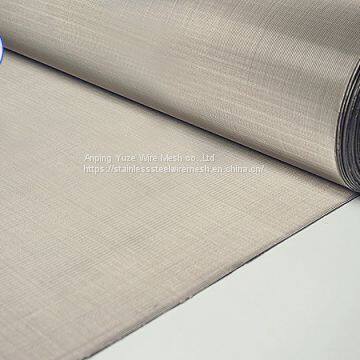

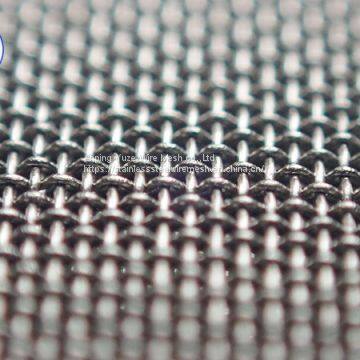

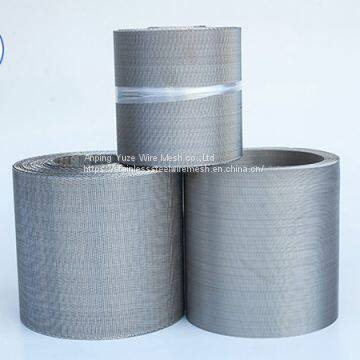

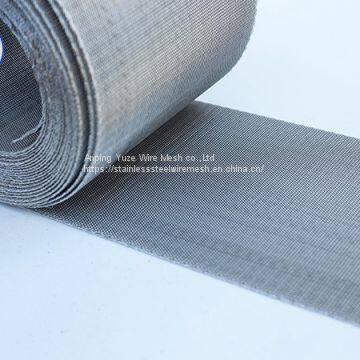

Stainless Steel Dutch Wire Mesh
Yuze offers custom wire cloth to meet clients’ filtration needs. Dutch weave mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries. Dutch weave mesh with width 3m are far more than customer expectation
Alloy:
316L ,317L 904L stainless steel woven square mesh and dutch weave mesh as main supporting and filtration media of leaf filter which is used in the processing of food ,edible oil, pharmaceuticals and chemicals.
Dutch Weave Mesh:
Plain Dutch and Twill Dutch and particular RDT mesh are normally used in the applications of Water well treatment and sand control system.
Fine Dutch Weave Mesh as finer absolute filtration layer of sintered mesh and accurate chemical filtration,with max width 3m.which is outstanding performance in China woven mesh industry.
Packing: wrapped with moisture-proof paper, then in wooden cases
| Mesh/Inch (warpXweft) |
Wire Dia.warpXweft(mm) | Normal size (um) | Effective area% | Cloth thicknes(mm) | Weight (kg/sq.m) |
| 7×14 | 0.71×0.63 | 320 | 14.2 | 1.97 | 5.24 |
| 8×60 | 0.63×0.45 | 300 | 20.4 | 1.53 | 4.04 |
| 8×85 | 0.35×0.32 | 270 | 27.3 | 0.93 | 2.51 |
| 10×90 | 0.45×0.28 | 250 | 29.2 | 0.98 | 2.57 |
| 10×76 | 0.50×0.34 | 245 | 21.8 | 1.2 | 3.16 |
| 12×86 | 0.45×0.31 | 215 | 20.6 | 1.06 | 2.86 |
| 12×64 | 0.56×0.40 | 210 | 16 | 1.36 | 3.89 |
| 12×76 | 0.45×0.35 | 190 | 15.9 | 1.16 | 3.26 |
| 14×100 | 0.40×0.28 | 185 | 20.3 | 0.96 | 2.56 |
| 14×88 | 0.50×0.30 | 180 | 23 | 1.1 | 2.85 |
| 14×110 | 0.35×0.25 | 175 | 22.2 | 0.85 | 2.28 |
| 16×100 | 0.40×0.28 | 160 | 17.6 | 0.96 | 2.64 |
| 16×120 | 0.28×0.22 | 145 | 19.2 | 0.72 | 1.97 |
| 20×140 | 0.315×0.20 | 130 | 21.5 | 0.71 | 1.97 |
| 20×150 | 0.25×0.18 | 125 | 27 | 0.59 | 1.53 |
| 25×140 | 0.28×0.20 | 100 | 15.2 | 0.68 | 1.92 |
| 24×110 | 0.36×0.25 | 90 | 13 | 0.85 | 2.4 |
| 30×150 | 0.25×0.18 | 80 | 13.6 | 0.6 | 1.68 |
| 35×170 | 0.22×0.16 | 70 | 12.8 | 0.54 | 1.58 |
| 40×200 | 0.18×0.14 | 60 | 15 | 0.46 | 1.4 |
| 50×250 | 0.14×0.11 | 50 | 16 | 0.36 | 0.99 |
| 60×300 | 0.14×0.09 | 40 | 14.1 | 0.32 | 0.96 |
| 80×400 | 0.125×0.06 | 35 | 16.6 | 0.25 | 0.77 |
