Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing

Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing photo-1

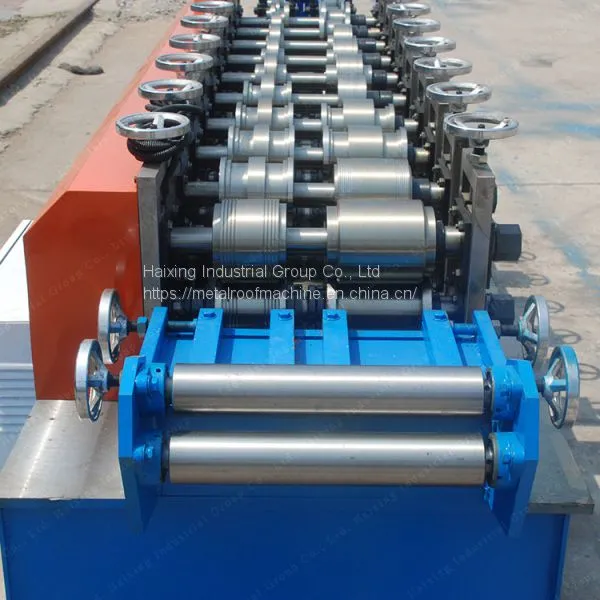

Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing photo-2

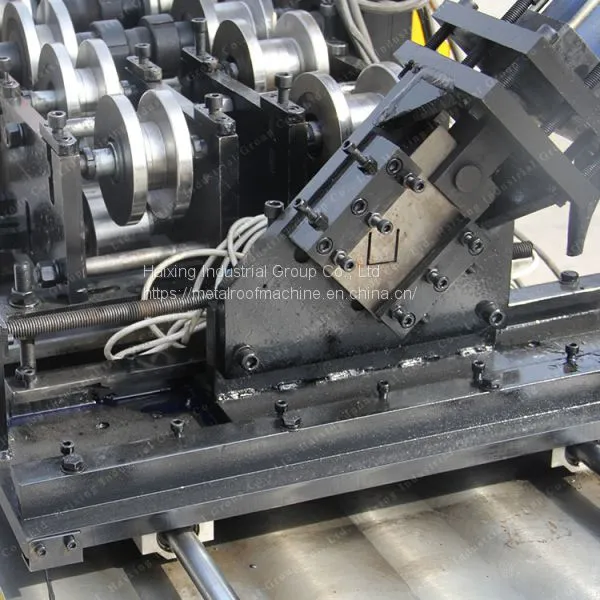

Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing photo-3

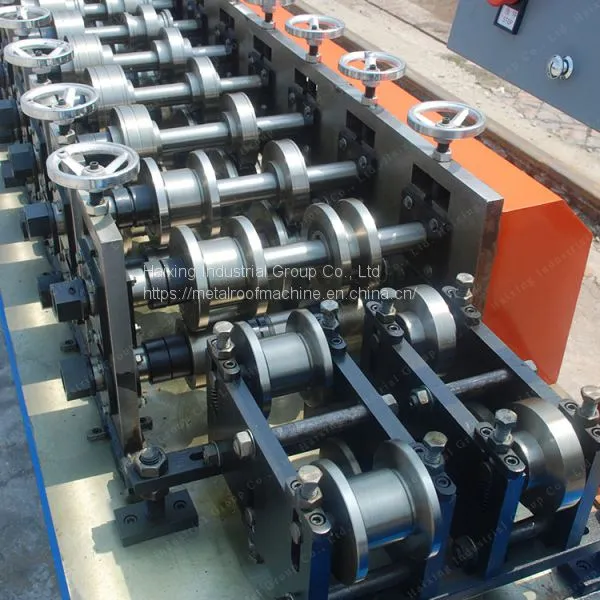

Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing photo-4
Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing photo-5
US$ 7500 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HX
Place of Origin:
China
Use:
Other, Construction
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
45 days
Brand Name HX
Place of Origin China
Use Other, Construction
Certification ISO 9001, CE, SGS
After-sales Service Provided Engineers available to service machinery overseas
Warranty 2 years
Weight 2~12T
Dimension(L*W*H) 5000mm*1000mm*1500mm
Production Capacity 8-15 m/min
Condition New
Voltage 380V/3 phase/50HZ (or as your request)
Power(W) 4kw/3 phase (or as your request)
Type Other, steel keel machine
Tile Type Steel


Machine parameters

Ceiling U Light Steel Keel Roll Forming Machine Building Structural Material Manufacturing

1 Main motor power 4kw/3 phase (or as your request)
2 Hydraulic motor power 3kw
3 Hydraulic pressure 10~12MPa
4 Voltage 380V/3 phase/50HZ (or as your request)
5 Control System PLC Delta /Panasonic/Siemens/
6 Main Frame 300/350mm H-Beam
7 Backboard Thickness 17/20mm
8 Chain size 1/2inch
9 Feeding material color steel coils
10 Feeding thickness 0.18~0.8mm
11 Feeding width Better as your profile or from our design
12 Effective width Better as your profile or from our design
13 Productivity 0-3min
14 Roll station 11~20 roll steps(according to different design)
15 Roller diameter 75mm (according to different design)
16 Roller material 45#steel
17 Cutter material Cr12
18 Cr-Plating size 0.05mm
19 Overall size 5000mm*1000mm*1500mm
20 Total weight 2~12T



Machine picture display



Terms

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).



After Service

a. Two years guarantee for whole machine.

b. 24 hours technical support by email or calling

c. If there is any problem found of the machine, we will repair it for free in one year.



Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


Product Tags: light keel roll forming machine , keel machine
