glass washing and drying machine

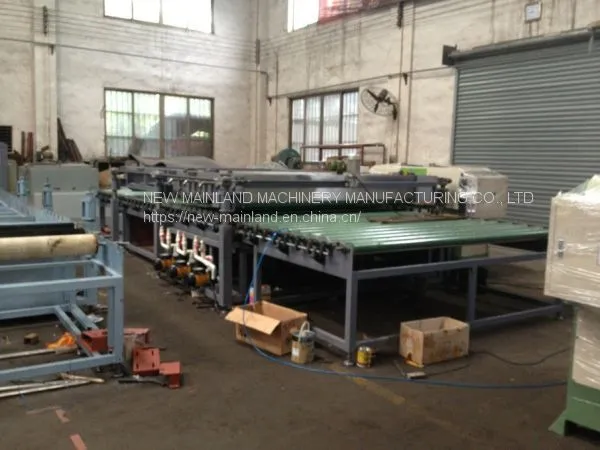

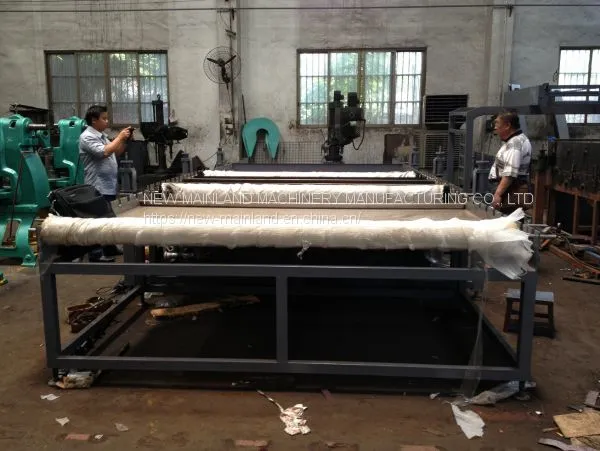

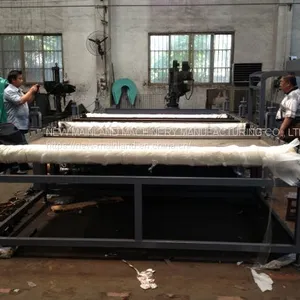

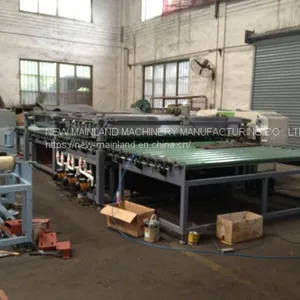

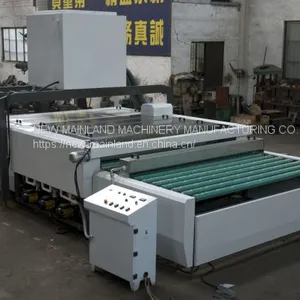

BX-2500H Glass washing machine

This machine adopts nit rile rubber roller, environment temperature can be -10℃~90℃, helical gear driving was stable and durable, in washing part have 3 pairs brushes in upper and lower for three-stage washer, first two pairs hard brushes can be up and down with pneumatically, it’s easy to wash low-e glass; And last is soft brush. The brush used belt transmission with smoothly and quietly. There are two pairs of stainless air knife for drying on upper and lower, it adopt 22kw high pressure and strong wind for drying. Thickness can be displaying on figures. Washing and drying parts can be up and down electronically, rising height up to 350mm, it’s easy for cleaning and changing brush or water nozzle. All cover parts of washing, water tray and water tank are made by stainless.

Main technical specifications:

Occupy area: 6700×3550×3000mm

Total weight: 4000kg

Glass thickness: 3-25mm

Power: 27kw

Working table height: 450mm

Min size: 400×400mm

Max width: 2440mm

Transmit speed: 0.5-5m/min

Brushes: 3 pairs

Air knife: 2 pairs
