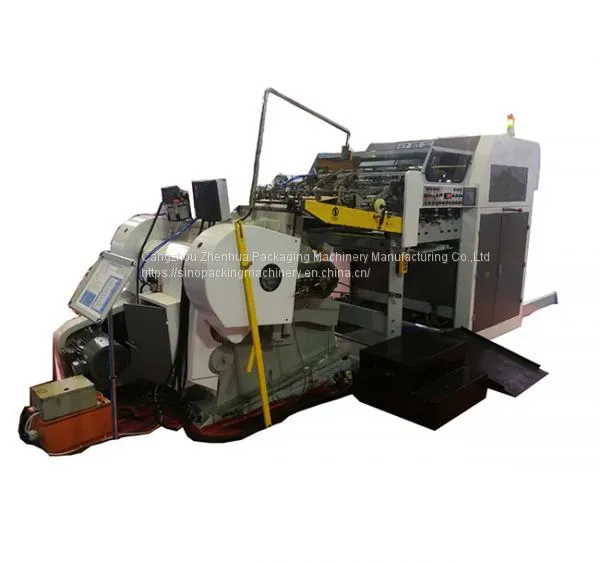

Automatic Cutter and Creaser
Automatic Partition Machine, Semi-Automatic Corrugated Box Stitching Machine, Auto Folder Gluer Machine Supplier China
Function and Characteristics
The feeding table has device for replenish table, which can work continuously. It will not stop operation and it owns high efficiency.
The front lay and the side lay can be adjusted automatically in terms of the size of the paper. It can be adjusted easily, with high accuracy.
Using vacuum oxygen when the paper enter or be collected , which can eliminate gripper problem of the general automatic machine. It can used on common board E,B,A wave paper and plastic board
The delivery board has plate trailer, which works easily and with labor-saving. Outfit put paper counter can also be added.
With multi view electric eyes, the fault rate of the paper can be reduced. It is precise and safe. You can handle it with high proficiency.
The feeder part has track device. When you make the board , it separates freely and conveniently.
SPECIFICATION
SPECIFICATION/MODEL |
ZHML-1100 |
ZHML-1300 |
ZHML-1500 |
Max. cutting size（mm） |
1100×780 |
1300×900 |
1500×1000 |
Min. cutting size（mm） |
540×360 |
650×480 |
650×550 |
Thickness of cutting paper（cm） |
Paperboard纸板≤8mmCardboard卡纸≥300g |
Paperboard纸板≤8mmCardboard卡纸≥300g |
Paperboard纸板≤8mmCardboard卡纸≥300g |
Work efficiency（sheets/hour） |
1500~2100 |
1200~1500 |
1200~1500 |
Total weight of machine（kg） |
7500 |
8500 |
9500 |
Dimensions(L×W×H)mm |
6000×1930×2200 |
6450×2650×2200 |
6600×2800×2200 |
High Efficiency Rotary Roller Die-Cutting Machine, Automatic Creaser Machine, Manual Die Cutting Machine Supplier. More information please view here.
