Amorphous solar panel 275w CIGS Flexible thin film Solar Panel
产品别名:
-
CIGS Solar Panel
Amorphous solar panel
flexible solar panel
品牌名称:
Macsun Solar
原产地:
China
规格说明:
-
1. Feature:
Brand Name: Macsun Solar
Module Number: MS-FLEX-TSP275
Type: CIGS thin film solar module
Max.Power: 275W
Size: 5745*494*3.5mm
Working condition: Sunny ,Cloudy, or even Rainy days
Special feature: Good performance in diffuse light or low -lux condition
2. Electrical Specifications
Capacity rating Pmax 275W
Tolerance of Pmax % +10/-7%
Module aperture area efficiency % 12.5%
Rated voltage Vmpp 51.5V
Rated current Impp 5.3A
Open circuit voltage Voc 67.6V
Short circuit current Isc 6.3A
3. Mechanical Specifications
Demension: 5745×494Weight: 7.2 kg without adhesive (2.5kg/㎡) ; 9.3kg with adhesive(3.3kg/㎡)
Junction Box - Top Mounted: TE Connectivity SOLARLOKTM Micro Junction Box
Cables: 4mm² dual rated with SOLARLOKTM connectors
Junction Box - Bottom Mounted: MC-JM/FM (MC4 Connectors)
Front Sheet: Non-stick ETFE
Solar Cells: 108 CIGS cells (210×100mm )
Adhesive: ADCO HelioBondTM PVA 600BT butyl mastic
Hot Spot Protection: Bypass diodes at each cell ; 1 at junction box
Materials: Lead free and exempt from RoHS requirements
Maximum Series Fuse Rating: 10Amp
Color Options: Black (B) or White (W) backsheet behind cells
Temperature Range: -40℃ to + 85 ℃
Maximum System Voltage: 1000V DC IEC, 600V DC UL
WarrantyMaterials and workmanship- 25 years
Power output -25 years ( 90%@ 10years,80 @ 25years) Limited Warranty
3. Application
• Directly onto metal Standing-Seam roofs
• Roof membranes• Roofs rated at less than 5-10kg/m2 additional load
• Curved roof / architectural structures • Mobile applications - RVs, Trucks
• Landfills
• Larger Mobile applications - Boats, Containers • Tensioned-Fabric structures
• Corrugated roofs rated at 7-10kg/m2• Elastomeric Coated Roofs
• Poles and Towers
• Architectural glass
• Larger Shingle
4. Packaging & Delivery
Packaging Details: Bags & Cartons according to your requirements
Delivery Detail: Shipped in 15 days after payment

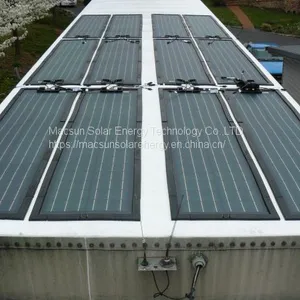

4. Designed specially for rooftops
Integrates with roofing surface. No mounting hardware .No roof penetrations
No wind load. Low profile
Flexible module
Fits many roof types. Durable, non-breakable
High performance
Performs in all light conditions Shade tolerant. Shade protecte 目前出口市场:
-
