ChinaHome > Products > Rotary Drilling Rig > Drilling Rig Brand New Hydraulic Crawler

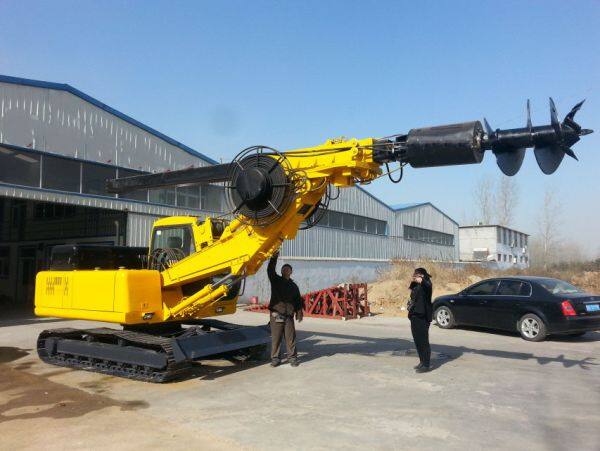

Drilling Rig Brand New Hydraulic Crawler
- 1000 Piece / Pieces per Month
- Any Port of China
- T/T L/C D/P D/A PayPal
- 7 days
You May Like
Product Details
Product Description
Product Description
Max. drilling diameter | Φ2000mm |
Max. Drilling depth | 65m |
Rated output torque of rotary drive | 220kN.m |
Rated working rotation speed of rotary drive | 7~22r/min |
Discharge speed of rotary drive | 110~120r/min |
Max. stress of pressurized device | 160KN |
Max. Pulling force of pressurized device | 180KN |
Stoke of pressurized system | 5m |
Laterally lean operation angle | ±5° |
Front-lean operation angle | 5° |
Hoisting force of main winch(The first floor) | 220KN |
Hoisting force of auxiliary winch(The first floor) | 80KN |
Lifting speed of main winch | ≥65(The second floor) |
Lifting speed of auxiliary winch | ≥60(The second floor) |
Max. working radius | 4800mm |
Min. working radius | 3800mm |
Max. gradeability | 17° |
Min. Steering radius | 3800mm |
Min. Steering passable radius | 7700mm |
Turning angle | 360° |
Max.turning angle | 3.3r/min |
Rear turning radius | 4400mm |
Dimension Length x Width x Height (Transporting status) | 15920 x 3500 x 3457mm |
Dimension Length x Width x Height (Working status) | 10200 x 4400 x 21700 |
Overall weight | 70t |
Advantages
Advantage:
1)High efficiency and energy-saving hydraulic system.
2)Big torque and full hydraulic driver.
3)180 degree free rotation.
4)Wide application, high construction efficiency and stable performance.
5)Deep pile, fast speed, convenient movement.
6)Low cost of purchase, low transportation cost and fast profit.
Details of product
1.Drills up to 200m deep, 75-500mm diameter , trailer mounted.
2. Hydraulic control, diesel engine. Drill speed: 15m/hour.
3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.
4. Used for Water wells drilling for farm/industry irrigating ,fresh water drinking, or anywhere need fresh water. etc.
5. It is a full set of machine can be used upon arrival.
