Loading Arm

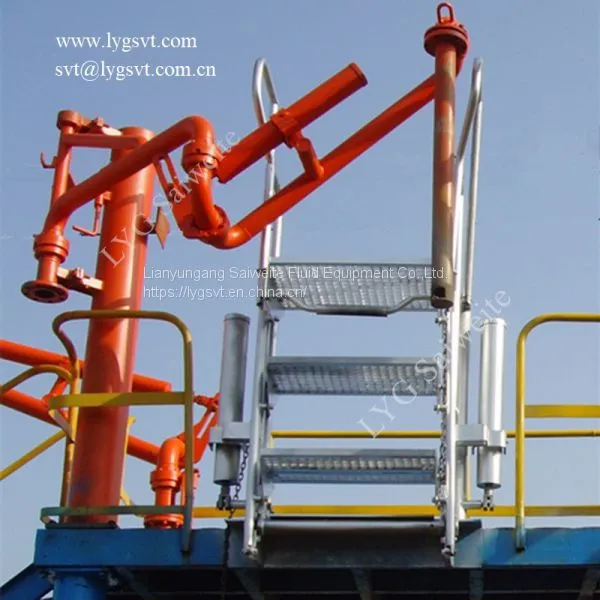

Our loading arm is especially designed for loading and unloading liquids from railcars and tank truck.
The type of land loading arm is divided into top loading arm and bottom loading arm.Our loading arm can be
customized as the requirements of customer, characteristics of liquids, local conditions etc.
Equipped with loading platform, folding stairs and safety cage to make the loading arm into a complete loading system.
Product Features
Double base swivel joints are made of carbon steel, stainless steel ASTM304 or ASTM316.
PTFE seal rings ensure no leakage.
Balancing of the arm is made by a spring balance cylinder.
Be able to move along with road tanker during loading within normal range.
High quality surface treatment and coating make loading arms have excellent weather-resistance.
Numerous accessories are available to make a loading arm more effective and safety.
Design Parameters
| Nominal Diameter | 2"(DN50), 3"(DN80), 4"(DN100), 6"(DN150), 8"(DN200) |
| Design Pressure | -0.06MPa~5.0MPa |
| DesignTemperature | -196°C~+250 °C |
| Balancing Method | Spring balance cylinder |
| Pipeline Material | Carbon steel, Stainless steel, Aluminum and Alumium Alloy, PTFE-lined. |
| Service Product | Crude oil, Refined oil products (petroleum, diesel, aviation kerosene, ect. ) and chemicals |
Structure Drawing
Major Models:
Company Information
Lianyungang Saiweite Fluid Equipment Co., Ltd. (LYGSVT) specializes in the design, manufacture, sale and installation of petrochemical storage and transfer equipment & system.
LYGSVT offers wide variety in products for the tank storage and fluid transfer in the petroleum and petrochemical industry. Our main products include:
Storage Tank Equipment
• Internal Floating Roofs
• Floating Roof Seals
• Floating Suction Unit
Fluid Handling Equipment
• Land Loading Arms
• Folding Stairs
• Marine Loading Arms
• Gangway Tower
• Automatic Quantitative Loading System
