Home > Products > 4G antenna > LPDA antenna with 10m LRM200 cable FME female connector yagi Active Directional antenna 4g antenna outdoor
LPDA antenna with 10m LRM200 cable FME female connector yagi Active Directional antenna 4g antenna outdoor
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T PayPal Other
- 7 days
Product Details
| Brand Name: | Gisantone | Place of Origin: | China | Model Number: | G13102H |
Product Description
ü Outdoor LPDS Antenna
ü Frequency band 806-960/1710-2700MHz
ü Gain 11/12DBI
ü Horizontal/Vertical Beam width 60/45 degree
ü 1 * FME female connector

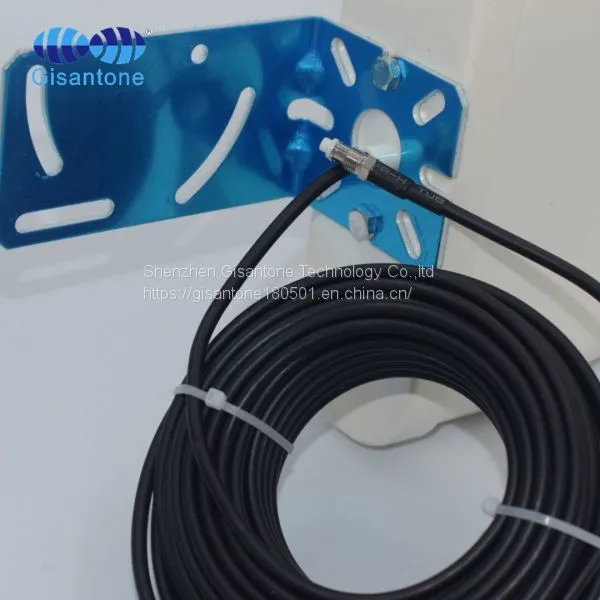

ü 10M LMR200 Black cable
Electrical Specifications | ||
Model No. | G13102H | |
Frequency Range | 806-960/1710-2700MHz | |
Gain | 11/12dBi | |
VSWR | ≤1.5 | |
Input Impedance | 50Ω | |
Polarization | Vertical | |
Horizontal Half Power Angle | 60° | 50° |
Vertical Half Power Angle | 45° | 35° |
PIMD 3th | ≤-85dBm（@2W） | |
Max Input Power | 100W | |
Lightning Protection | DC Ground | |
Mechanical Specifications | ||
Connector Type | FME female | |
Cable Type | LMR200 Black | |
Cable Length | 10M | |
Working Temperature | -40℃~﹢65℃ | |
Antenna Weight | 750g | |
Size | 440x205x60mm | |
Pole Diameter | Φ38~55mm | |
Rated Wind Velocity | 210km/h | |
Antenna Cover Material | ABS | |
Package Size | 79*59*45.5CM / 20PCS | |
Weight | 16.8KG | |
