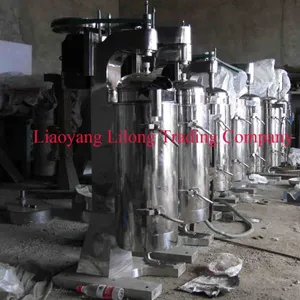

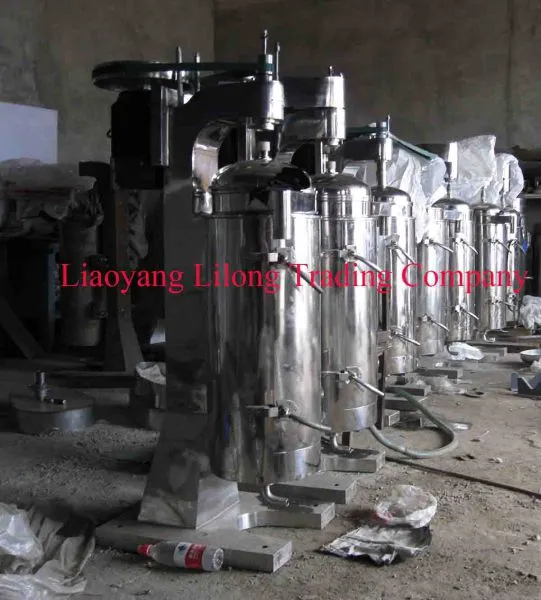

Tubular Bowl Centrifuge Separator for Sugar and Honey
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.
It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,
There are two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.
For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.
Tubular Bowl Centrifuge Separator for Sugar and Honey
| parameter | ||||||
| model | GQ(F)45A | GQ75A | GF(Q)105A | GQY125A | GQ150A | |
| item | GQ(F)45J | GQ75J | GF(Q)105J | GQY125J | GQ150J | |
| bowl | diameter(mm) | 45 | 75 | 105 | 125 | 142 |
| effective height in mm(mm) | 280 | 430 | 730 | 735 | 700 | |
| settling volume L(L) | 0.45 | 2 | 5.5 | 7.4 | 10 | |
| speed(r/min) | 0-28000 | 20000 | 16000 | 15000 | 14000 | |
| max separation factors | 0-19800 | 16770 | 15025 | 15500 | 15570 | |
| nozzle diameter(mm) | 2.3 | 2.3.5 | 4.6.8.10 | 6.8.10 | 8.10.12 | |
| inlet pressure(Mpa) | >0.05 | >0.05 | >0.05 | >0.05 | >0.05 | |
| capacity(kg/h) | ≈100 | ≈500 | ≈1200 | ≈2000 | ≈3000 | |
| motor | type | universal motor | Y90S-2 | Y90S-2 | Y90L-2 | Y100L-2 |
| power(kw) | 0.6 | 1.5 | 2.2 | 3 | 3 | |
| speed(r/min) | 0~4500 | 2840 | 2880 | 2880 | 2880 | |
| size(mm) | 580×650×750 | 800×400×1200 | 800×700×1400 | 850×500×1600 | 800×700×1600 | |
| weight(kg) | 120 | 300 | 400 | 610 | 520 | |
