Home > Products > engineering driller > QZ-2A Three Phase Electric Sampling Drilling Rig rock stample drilling rig

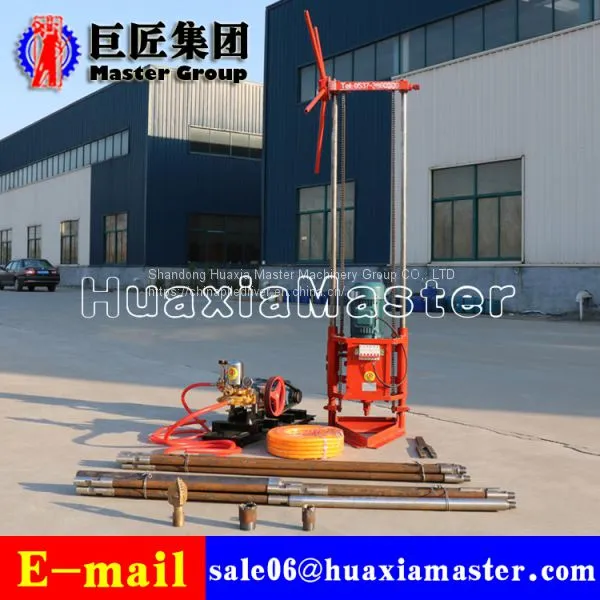

QZ-2A Three Phase Electric Sampling Drilling Rig rock stample drilling rig
- 100 Set / Sets per Month
- Qingdao
- L/C D/P D/A
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia Master | Place of Origin: | China | Model Number: | QZ-2A |
| Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 6 months | Weight: | 90kg | Dimension(L*W*H): | core drilling rig |
| Power Type: | Electric | Voltage: | 380V | Usage: | Other, core sampling |
| Condition: | New | Power(W): | 3kw |
Product Description

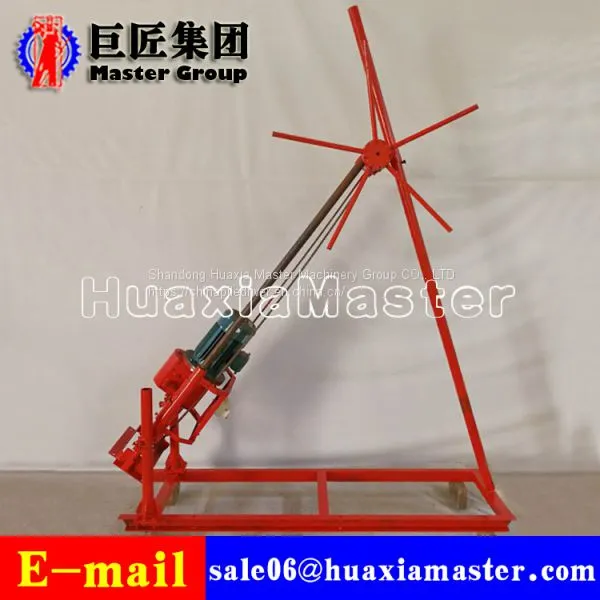

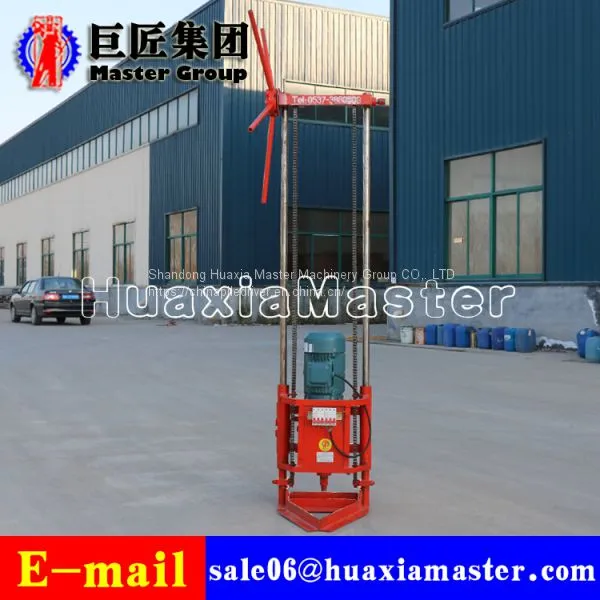

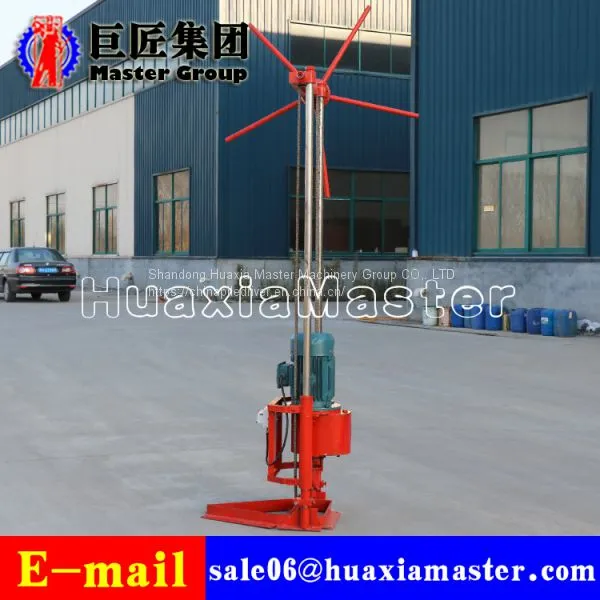

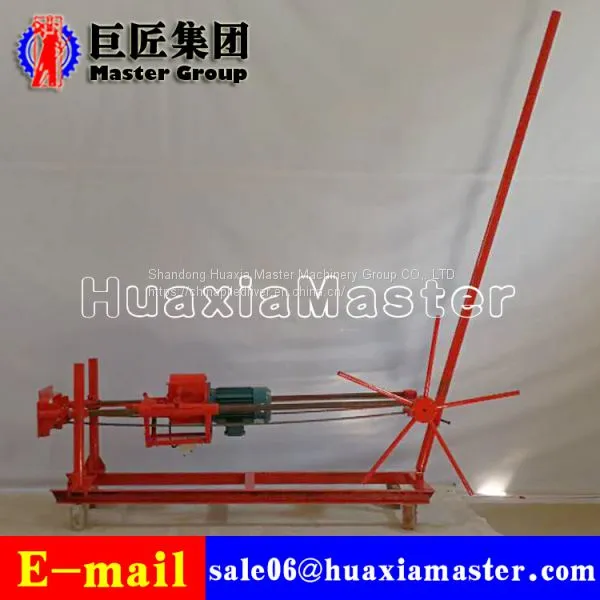

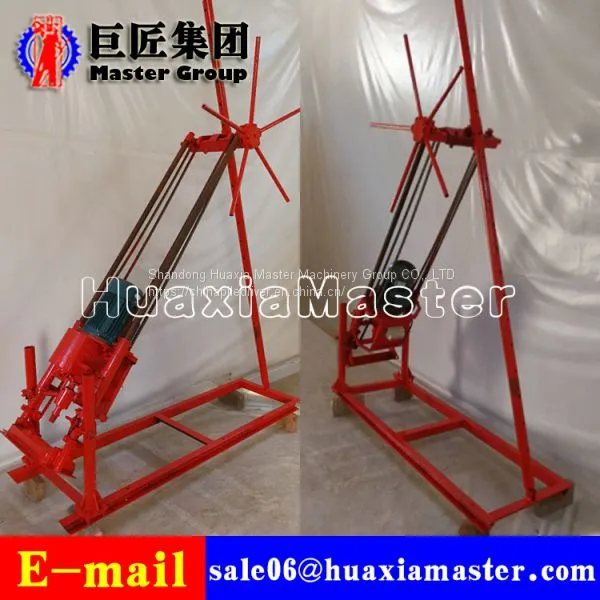

1. Brief introduction of QZ-2A electric sampling drilling rig
QZ-2A type three-phase sampling drill rig is a portable core sampling drilling rig, produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.
2. Specifications of QZ-2A electric sampling drilling rig
QZ-2A electric sampling drilling rig | |
Borehole diameter (mm) | 46-91 |
Drilling depth（m） | layer 91：10-15m rock 91：5-10m rock 75：10-15m rock 60：15-20m rock 46：20-25m |
Drilling pipe diameter (mm) | 32 |
Rotate speed（r/min） | 185-380 |
Torque（n.m） | 80 |
Power（kw） | 3 |
Dimension（l*w*h） | 600*450*1900 |
Weight（kg） | 95 |

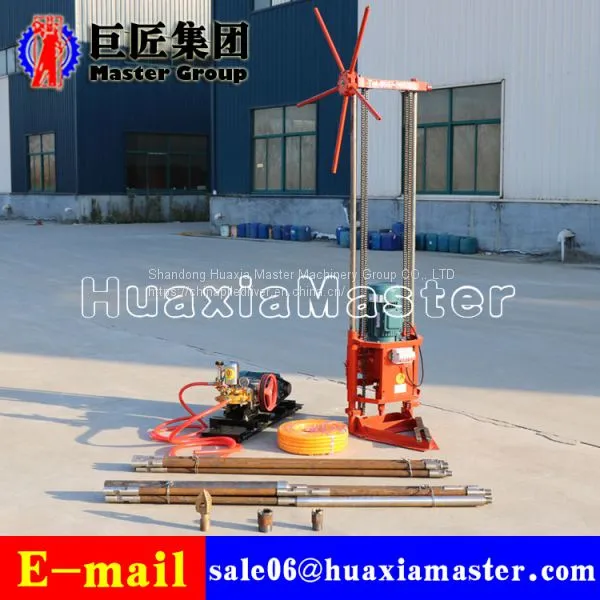

3. Configuration List of QZ-2A
Item | Parameter | Unit | Quantity |
Three phase electric sampling drill | QZ-2A | platform | 1 |
Drilling pipe | 28*1500 | pc | 6 |
Drilling pipe | 28*800 | pc | 8 |
Drilling joint | 35 | pc | 14 |
Reducing nipple | 45/35 | pc | 1 |
Core barrel | 45*800 | pc | 1 |
Alloy bit | 46 | pc | 1 |
Reducing nipple | 58/35 | pc | 1 |
Core barrel | 58*800 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Three-wing bit | 0 | pc | 1 |
Safety clamp | hold | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 17*50*10 | pc | 2 |
Control wheel | set | 1 |

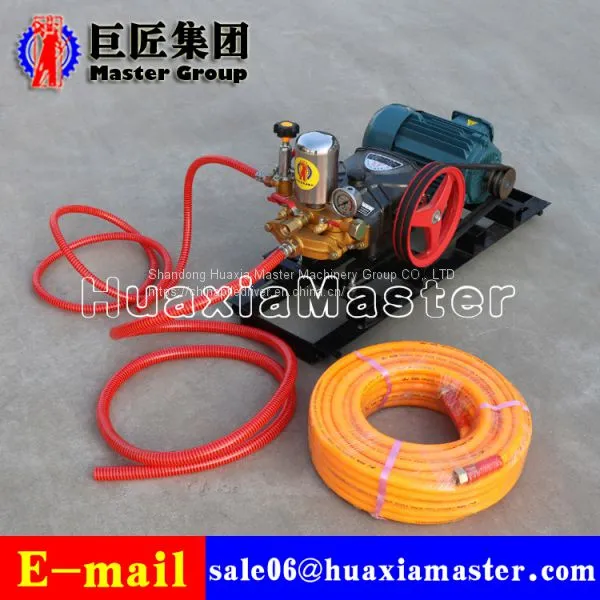

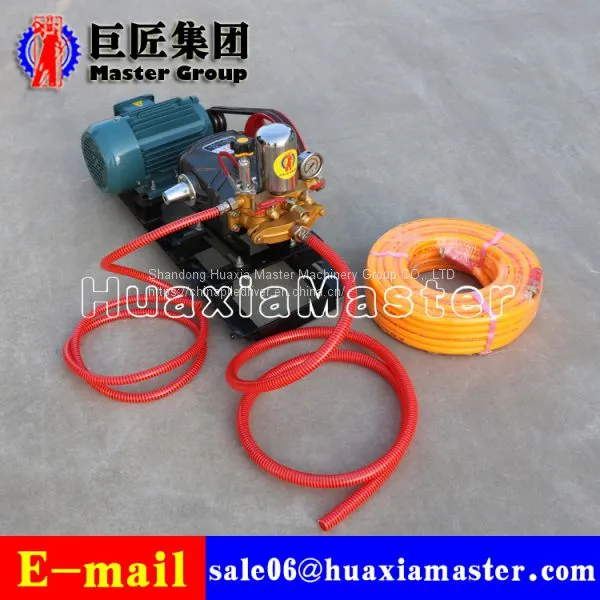

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
