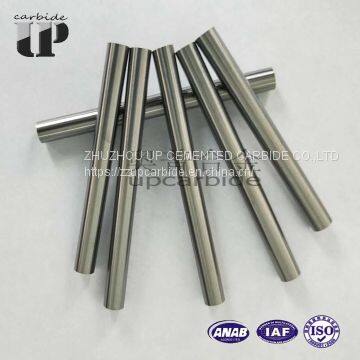

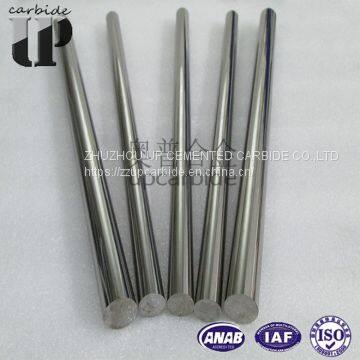

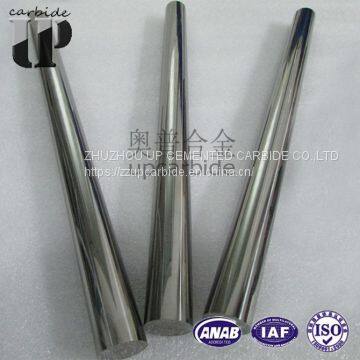

Unground Cemented Carbide Rods Length 330mm

Unground Cemented Carbide Rods Length 330mm thumbnail-1
Unground Cemented Carbide Rods Length 330mm thumbnail-2
Unground Cemented Carbide Rods Length 330mm thumbnail-3
Unground Cemented Carbide Rods Length 330mm thumbnail-4
Unground Cemented Carbide Rods Length 330mm thumbnail-5
Unground Cemented Carbide Rods Length 330mm photo-1
Unground Cemented Carbide Rods Length 330mm photo-2
Unground Cemented Carbide Rods Length 330mm photo-3

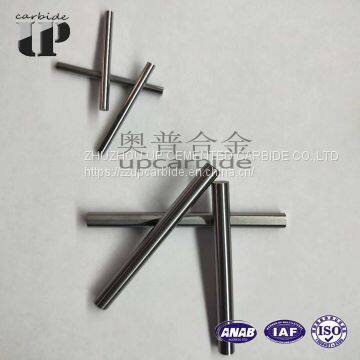

Unground Cemented Carbide Rods Length 330mm photo-4
Unground Cemented Carbide Rods Length 330mm photo-5
US$ 62 - 65 MOQ: 5 Kilograms
Key Specifications
Get Latest Price
Brand Name:
UP
Place of Origin:
China
Model Number:
rod01
Contact Supplier Request Quote Chat Now
Zhuzhou Up Cemented Carbide Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai guangzhou shenzhen
Delivery Detail:
9 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UP
Place of Origin China
Model Number rod01
Particle Tungsten Carbide WC+Co
Alloy Specification Tungsten Carbide WC+Co

Specification of  Carbide rods and bars

GRADE OVERVIEW
CHEMICAL COMPOSITION PHYSICAL PROPERTIES
GRADE WC+others Co GRAIN
SIZE
(μm)		 HARDNESS
(HV30)		 HARDNESS
(HRA)		 TRS
(N/mm²)		 TRS
(KPSI)		 DENSITY
(g/cm³)		 Fracture Toughness
 KIC
   Mpa.m1/2
XN208 92.00% 8% 0.2 2100 94.6 4700 681.5 14.46 10.5
XN209 91.00% 9% 0.2 2050 94.2 4800 696 14.36 11
YU06A 94.00% 6% 0.4 2100 94.7 3800 551 14.75 8.31
XU30 88.00% 12% 0.4 1750 92.5 4000 580 14.1 15.20
YF06 94.00% 6% 0.5 1850 93.1 3600 522 14.9 9.17
XF20T 90.00% 10% 0.6 1650 91.7 3800 551 14.45 15.40
XF30 88.00% 12% 0.6 1700 92.3 4000 580 14.1 13.26
YL10.2 90.00% 10% 0.8 1600 91.5 4000 580 14.42 14.60
YL10A 92.00% 8% 1.0 1780 92.8 3800 551 14.65 10.74





Carbide Rod



As sintered



Length 330(310)mm


Type D Tolerance(mm) D L Tolerance(mm)L
Bφ0.5×330 0.5 +0.10/0.20 330 -0/+10.0
Bφ1.0×330 1.0 +0.10/0.20 330 -0/+10.0
Bφ1.2×330 1.2 +0.10/0.20 330 -0/+10.0
Bφ1.6×330 1.6 +0.10/0.20 330 -0/+10.0
Bφ1.8×330 1.8 +0.10/0.20 330 -0/+10.0
Bφ2.3×330 2.3 +0.10/0.30 330 -0/+10.0
Bφ2.5×330 2.5 +0.10/0.30 330 -0/+10.0
Bφ3.0×330 3.0 +0.10/0.30 330 -0/+10.0
Bφ3.5×330 3.5 +0.10/0.30 330 -0/+10.0
Bφ4.0×330 4.0 +0.20/0.50 330 -0/+10.0
Bφ4.5×330 4.5 +0.20/0.50 330 -0/+10.0
Bφ5.0×330 5.0 +0.20/0.50 330 -0/+10.0
Bφ5.5×330 5.5 +0.20/0.50 330 -0/+10.0
Bφ6.0×330 6.0 +0.20/0.50 330 -0/+10.0
Bφ6.5×330 6.5 +0.20/0.50 330 -0/+10.0
Bφ7.0×330 7.0 +0.20/0.50 330 -0/+10.0
Bφ7.5×330 7.5 +0.20/0.50 330 -0/+10.0
Bφ8.0×330 8.0 +0.20/0.50 330 -0/+10.0
Bφ8.5×330 8.5 +0.20/0.50 330 -0/+10.0
Bφ9.0×330 9.0 +0.20/0.50 330 -0/+10.0
Bφ9.5×330 9.5 +0.20/0.50 330 -0/+10.0
Bφ10.0×330 10.0 +0.20/0.50 330 -0/+10.0
Bφ10.5×330 10.5 +0.20/0.50 330 -0/+10.0
Bφ11.0×330 11.0 +0.20/0.50 330 -0/+10.0
Bφ11.5×330 11.5 +0.20/0.50 330 -0/+10.0
Bφ12.0×330 12.0 +0.20/0.60 330 -0/+10.0
Bφ12.5×330 12.5 +0.20/0.60 330 -0/+10.0
Bφ13.0×330 13.0 +0.20/0.60 330 -0/+10.0
Bφ13.5×330 13.5 +0.20/0.60 330 -0/+10.0
Bφ14.0×330 14.0 +0.20/0.60 330 -0/+10.0
Bφ14.5×330 14.5 +0.20/0.60 330 -0/+10.0
Bφ15.0×330 15.0 +0.20/0.60 330 -0/+10.0
Bφ15.5×330 15.5 +0.20/0.60 330 -0/+10.0
Bφ16.0×330 16.0 +0.20/0.60 330 -0/+10.0
Bφ16.5×330 16.5 +0.20/0.60 330 -0/+10.0
Bφ17.0×330 17.0 +0.20/0.60 330 -0/+10.0
Bφ17.5×330 17.5 +0.20/0.60 330 -0/+10.0
Bφ18.0×330 18.0 +0.20/0.60 330 -0/+10.0
Bφ18.5×330 18.5 +0.20/0.60 330 -0/+10.0
Bφ19.0×330 19.0 +0.20/0.60 330 -0/+10.0
Bφ19.5×330 19.5 +0.20/0.60 330 -0/+10.0
Bφ20.0×330 20.0 +0.20/0.60 330 -0/+10.0
Bφ21.0×330 21.0 +0.20/0.65 330 -0/+10.0
Bφ22.0×330 22.0 +0.20/0.65 330 -0/+10.0
Bφ23.0×330 23.0 +0.20/0.65 330 -0/+10.0
Bφ24.0×330 24.0 +0.20/0.65 330 -0/+10.0
Bφ25.0×330 25.0 +0.20/0.65 330 -0/+10.0
Bφ26.0×330 26.0 +0.20/0.65 330 -0/+10.0
Bφ27.0×330 27.0 +0.20/0.65 330 -0/+10.0
Bφ28.0×330 28.0 +0.20/0.65 330 -0/+10.0
Bφ29.0×330 29.0 +0.20/0.65 330 -0/+10.0
Bφ30.0×330 30.0 +0.20/0.65 330 -0/+10.0
Bφ31.0×330 31.0 +0.20/0.65 330 -0/+10.0
Bφ32.0×330 32.0 +0.20/0.65 330 -0/+10.0
Bφ33.0×330 33.0 +0.20/0.65 330 -0/+10.0
Bφ34.0×330 34.0 +0.20/0.65 330 -0/+10.0
Bφ35.0×330 35.0 +0.20/0.65 330 -0/+10.0






Welcome to contact us

Mike chen
Tel.:+86-0731-22160466

IVy yang
Tel.:+86-0731-22160196

China Company Tel.:+86 731 22160466

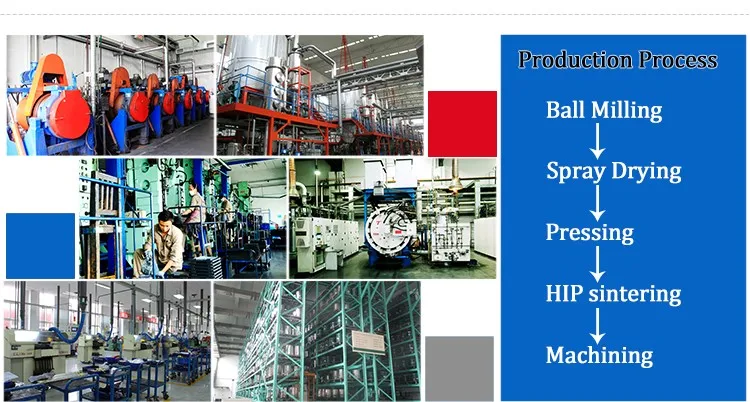

Unground cemented carbide rods length 330mmUnground cemented carbide rods length 330mm

Packaging & Shipping



Our Services

 More types are available on request

We are a manufacturer company,specialized in follwing products series:

1.Rare metal powders

2.Hard materials

3.Drilling&Exploiting for mines&oil Fields
4.Tungsten&molybdenum products

5.Tantalum&niobium products

6.Metal-cutting tools

 company introduction :

Zhuzhou Up Cemented Carbide Co.,Ltd is one of the carbide tools leaders in China and is a professional manufacturer of tungsten carbide products:TC rod & plate,TC dies,TC blank & perform,TC roll,mining tools,non-magnetic TC ,cemented carbide saw blades, tungsten electrode,etc. ,.Our biggest advantages are able to manufacture complicate non-standard TC products,large-size TC products and Non-magnetic TC products.

 Zhuzhou Up Cemented Carbide Co.,Ltd products are popular all over the world.As the raw material supplier,we can control the quality and price from the original step,chich sabe much cost sand guarantee the product quality for our customers.For the stable quality and good service,our company has ertablishe good company image both in domestic and abroad.

Zhuzhou Up Cemented Carbide Co.,Ltd has built a self-improvment, rich experience team, and continously persues advanced technologies, high-level manufacturing equippment and quality testing facilities. Based on the culture of " ABSORPTION MAKES PROFESSION, PROFESSION MAKES EXCELLENCE", ZHUZHOU UP CEMENTED CARBIDE CO.,LTD is sincere and loyal to our customers and partners, and focus on superb quality and excellent service.




Product Tags: cemented carbide rods , Unground cemented carbide rods length 330mm , Unground cemented carbide rods
