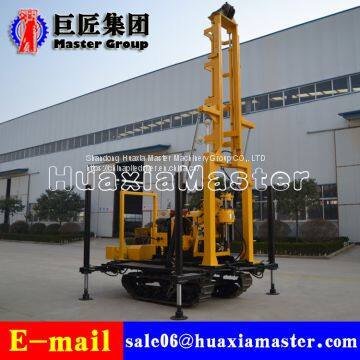

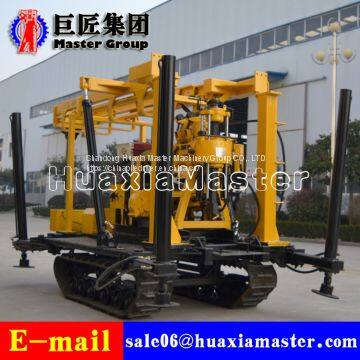

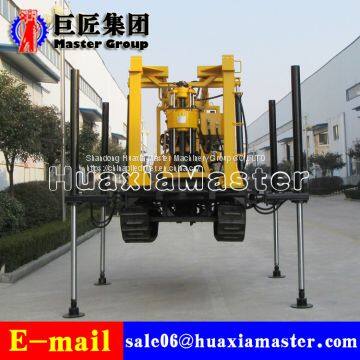

XYD-130 Crawler Type Water Well Drilling Rig
Keywords: crawler drilling machine, hydraulic hard rock drilling machine
1. The features of XYD-130 crawler drilling rig
The drilling machine adopts automatic Telescopic drilling tower, which is supported by two high-strength oil cylinders. Save effort, safe and reliable, maximum for the user to create benefits.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce the vibration of the vehicle body,and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.
The chassis is equipped with four high-strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient, it can be used for leveling of work plane, loading and unloading vehicle reduces the hoisting cost and improve efficiency,and can be used as auxiliary support when working.
2. The adoption of 48V electric starting diesel engine greatly reduces the labor intensity of the operator, especially in the cold season. When the diesel engine starts difficult, it shows greate
r superiority.
2.The specifications of XYD-130 crawler drilling rig
XYD-130 crawler drilling rig | |
Drilling depth | 130m |
Maximum opening hole diameter | 220mm |
End hole diameter | 75mm |
Drilling pipe diameter | 50mm |
Drilling angle | 90° |
Drilling rig weight | 2600kg |
Vertical Spindle | |
Spindle rotating speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
Maximum lifting weight of a single rope | 1600kg |
Lifting speed of a single rope | 0.41 0.82 1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Drum capacity | 27 M |
Mud pump | |
Model | horizontal single urn twin-action |
Displacement | 9577l/min |
Maximum pressure | 1.2mpa |
Working pressure | 0.7mpa |
Water inlet pipe diameter | 30mm |
Water outlet pipe diameter | 20mm |
Triangular belt diameter | B1575mm |
