Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > 2019 SDLG Best Price 5 Ton Wheel Loader L956F

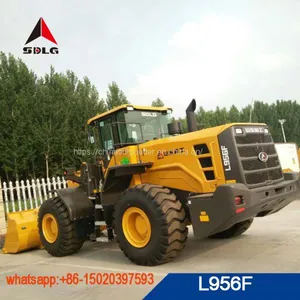

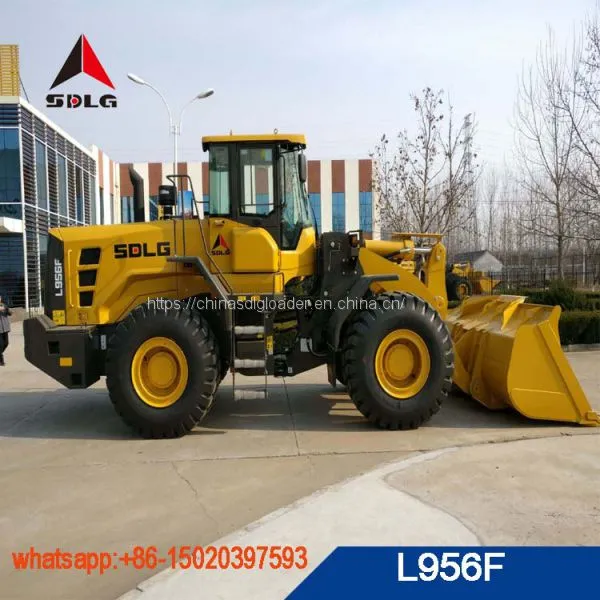

2019 SDLG Best Price 5 Ton Wheel Loader L956F
US$ 54000 - 65000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SDLG
Place of Origin:
China
Model Number:
L956F
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
30 days
Related Products
-
2019 SDLG Low Price 5 Ton Wheel Loader L958FUS$ 50000 - 70000MOQ: 1 Unit -
2019 SDLG Low Price Best Quality Backhoe Loader B877FUS$ 42000 - 60000MOQ: 1 Unit
-
2019 SDLG Low Price 5.4 Ton Wheel Loader L956FH Best QualityUS$ 48000 - 60000MOQ: 1 Unit
-
2019 SDLG Low Price Best Quality Wheel Loader LG946LUS$ 33000 - 45000MOQ: 1 Unit
-
2019 SDLG Low Price Best Quality 3 Ton Wheel Loader LG933LUS$ 27000 - 35000MOQ: 1 Unit
Brand Name
SDLG
Place of Origin
China
Model Number
L956F
Type
Front Loader
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
One year
Condition
New
Dimension(Long * Breadth * High)
8180*3024*3423mm
Moving Type
Wheel Loader
Rated Load
5ton
| Item | Specification | Item | Specification |
| Overall dimension | Min.fuel-consume ratio | ≤ 215g/kw.h | |
| LxWxH | 8180x3024x3423 mm | Emission standard | GB2089-2007 China Phase II |
| Wheelbase | 3200mm | Transmission system | |
| Min.ground clearance | 534mm | Torque converter | Single-stage 4-element double-turbine hydraulic torque converter |
| Max.dumping height | 3040mm | Transmission type | Planetary power shift |
| Dumping distance | 1095mm | Gears | Forward 2 reverse 1 |
| Dumping angle | -45° | Speed at forward gear I | 0~13km/h |
| Wheel tread | 2250mm | Speed at forward gear II | 0~38km/h |
| Steering angle | 35° | Speed at reverse gear III | 0~17km/h |
| Horizontal crossing radius | 7230mm | Hydraulic system of working device | |
| Min.turning radius | 6325mm | Type | Hydraulic pilot control |
| Overall parameter | Total time | ≤ 10.0s | |
| Bucket capacity | 3.0m³ | Brake system | |
| Rated load | 5000kg | Service brake type | Gas-cap oil-clamp disk |
| Operating wight | 17200kg | Parking brake type | Electric pneumatic internal expansion |
| Max.tractive force | 165kN | Steering system | |
| Max.breakout force | ≥ 175kN | Type | Load-sensing fully hydraulic articulated steering |
| Tipping load | ≥ 110kN | System Pressure | 16MPa |
| Engine | Fill capacity | ||
| Model | WD10G220E23 | Fuel | 260L |
| Type | Inline,water-cooled,direct injection,dry cylinder liner | Hydraulic oil | 240L |
| Rated power/speed | 162kw/2000r/min | Engine | 20L |
| Engine displacement | 9726mL | Transmission | 45L |
| Cylinder bore/stroke | 126/130mm | Drive Axle | 2x26L |
| Max.torque | 986 N.m | Brake system | 4L |
