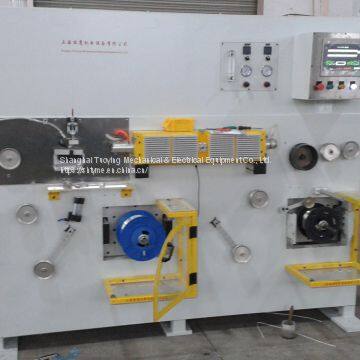

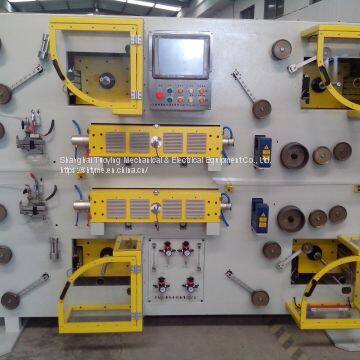

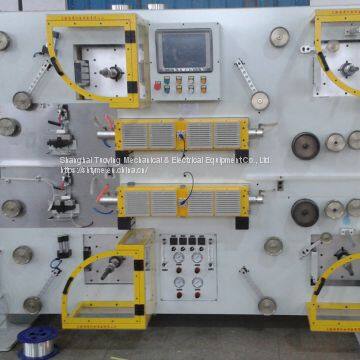

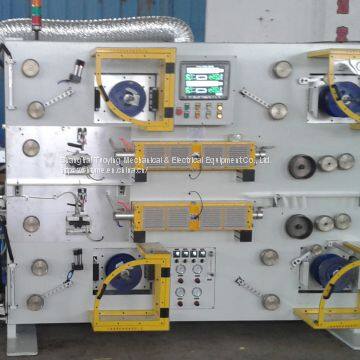

Optical Fiber Coloring & Rewinding Machine

Optical Fiber Coloring & Rewinding Machine thumbnail-1
Optical Fiber Coloring & Rewinding Machine thumbnail-2
Optical Fiber Coloring & Rewinding Machine thumbnail-3
Optical Fiber Coloring & Rewinding Machine thumbnail-4
Optical Fiber Coloring & Rewinding Machine thumbnail-5
Optical Fiber Coloring & Rewinding Machine photo-1
Optical Fiber Coloring & Rewinding Machine photo-2
Optical Fiber Coloring & Rewinding Machine photo-3
Optical Fiber Coloring & Rewinding Machine photo-4
Optical Fiber Coloring & Rewinding Machine photo-5
US$ 25000 - 40000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shanghai Tuoying
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Shanghai Tuoying Mechanical & Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shanghai Tuoying
Place of Origin China

2.1 Construction speed                         2000m/min

2.2 Coloring speed                                2000m/min

2.3 Fiber tension                                   0.4～1.5±0.03N

2.4 Traverse pitch                                  0.1～1.0±0.01mm

2.5 Reel size                                           (25km & 50km Standard optical fiber reel)

Flange diameter                               236～300mm

Reel width                                       108～250mm

Shaft hole diameter                Ф25.4mm

Reel weight                                     Max10kg

2.6 Metering accuracy                            ≤1‰

2.7 Additional loss                                ≤0.01db/km（SM, wave length 1550nm）

2.8 Power source                                 27kw 380v±5% 50Hz AC 3 phases+N line+Earth

2.9 Nitrogen purity                              ≥99.99%，flow is more than 3m3/H。

2.10 Compressed air                          0.4~0.6mpa

2.11 Dimension                                   2500mm (L) ×1300mm (W) ×1850mm (H)

2.12 Working temperature                   15～30℃

2.13 Total weight                                approx. 1000kg


Product Tags: optical fiber coloring , rewinding , optical fiber
