Fiberglass Ceiling Tiles
Details

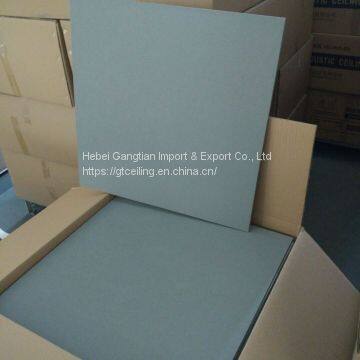

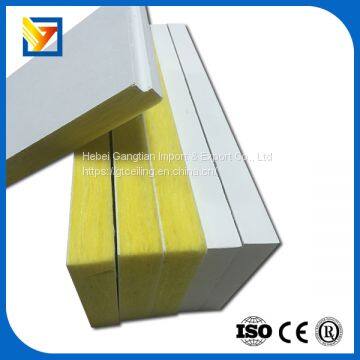

The Fiberglass Ceiling Tiles are manufactured from high density fiberglass wool.The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue.The four edges are sealed and square.The tiles will be parallel to grids system after installation.
1) FIBERGLASS ACOUSTIC CEILING AND PANEL
MATERIAL |
Torrefaction compounded high density fiberglass wool |
FACE |
Special painted laminated with decorative fiberglass tissue- |
COLOR |
White spray/ white paint /black spray/colorful as demanded |
FIRE-RESISTANT |
CLASS A (EN13501-1-2007+A1:2009) |
NRC |
0.8-0.9(ENISO354:2003 ENISO11654:1997) |
THERMAL-RESISTANT |
≥0.4（㎡.k/m） |
HUMIDITY |
Dimensionally stable with RH up to 95% at 40℃ |
No sagging,wrapping or delaminating | |
MOISTURE ARTE |
≤1% |
ENVIROMENTAL IMPACT |
Tiles and packings are fully recyclable |
SAFETY |
Limit of radionuclides in building materials |
Specific activity of 226Ra:Ira≤1.0 | |
Specific activity of 226Ra,232Th,40K:Ir≤1.3 | |
NORMAL SIZE |
600x600/600x1200mm , other size to order |
Width≤1200mm, Length≤2700mm | |
NORMAL DENSITY |
100kgs/m3 , special density can be supplied |
|
MAIN CHARACTERISTIC |
Excellent sound insulation |
Non-combustible | |
No sagging,wrapping or Delaminating | |
Green building material |
MAIN MATERIAL&PROJECT :
APPLICATION
It is recommended that the panels be installed to the opposite two walls to control the echo of the surrounding,thepanels are widely used in hotels,meeting rooms,auditoriums,music rooms,libraries,etc. Where have special requestfor sound absorption.
INSTALLATION
1. Use grids,which size T15mm&T24mm;
2.Tiles are easy to trim and install
3.Both imperial and metric grids are available
