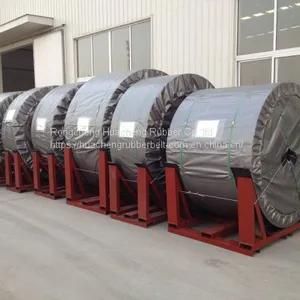

Help CenterSidewall Cleated Rubber Conveyor Belt
Related Products
-
Long-Life Span and Economical Corrugated Sidewall Conveyor BeltUS$ 1 - 100MOQ: 100 Meters -
High Quality Factory PriceUS$ 1 - 100MOQ: 100 Meters
-
Corrugated Sidewall Conveyor BeltUS$ 1 - 100MOQ: 100 Meters
-
China Corrugated Sidewall Rubber Conveyor BeltUS$ 1 - 100MOQ: 100 Meters
-
Corrugated Sidewall Cleated Rubber Conveyor BeltUS$ 1 - 100MOQ: 100 Meters
rubber conveyor belt is one of the most effective ways of elevating materials in a confined space,the economy is achieved by single belt operation,wide range material can be handled. Corrugated sidewall belt can be designed into a set of complete transportation system according to application.
Technical date for corrugated sidewall conveyor belt:
Sidewall |
S60 |
S80 |
S100 |
S120 |
S160 |
S200 |
S220 |
S240 |
S300 |
S400 |
S500 |
Cleat |
TC75 |
TC90 |
TC110 |
TC140 |
TC180 |
TC200 |
TC220 |
TC280 |
TC340 |
TC380 |
|
TCS180 |
TCS200 |
TCS220 |
TCS280 |
TCS360 |
TCS380 |
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
Cleat typesT, TS, C, TC and TCS.
"TS" and "TCS" cleat are normally used for abrasion condition
"T" and "TS" cleat are normally used up to 45 degree
"TC" and "TCS" are normally used from 45 degree to 87
Structure
Four parts: Top cover rubber; Bottom cover rubber; Reinforced core; Cross rigid.
Min top cover thickness: 3 mm;
Min bottom cover thickness: 1.5 mm.
Belt carcass ( casing ply): EP, Cotton, Nylon Steel CordCharacteristcis:
1) Conveying angle 30~90ºC
2) Smaller area covering;
3) Bigger throughput, higher hoisting height;
4) Smooth transition from horizontal to tilt or vertical;
5) Saving time
6) Strong conveying capacity
Cleat:
Cleat types: T, TC
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
"T" cleat are normally used up to 40 degree
"TC" normally used from 0 degree to 90
Classify by constructure:
1) Conventional type
2) Transverse reinforcement type: XE, XE+2, XE-SC+2 etc
Standard: GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Application:
Applying for large angle transporting,the maximum angle is 90°
