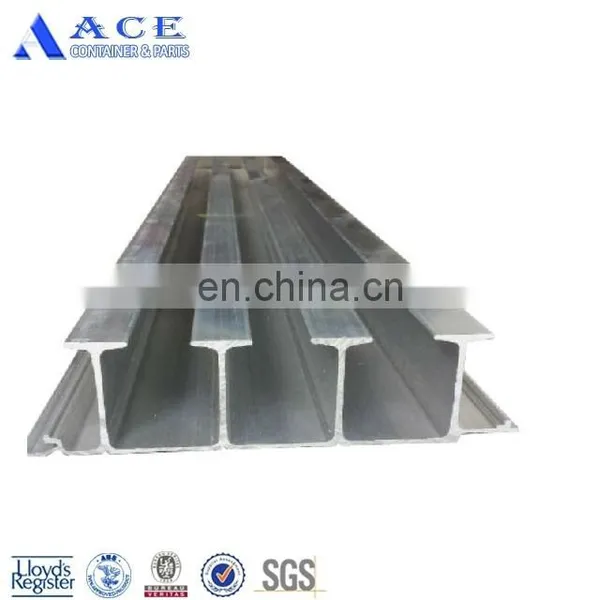

Reefer Container Spare Parts T Floor
- Structure Steel Material: SPA-H (Corten-A) (Including: Panels, Door sill, Top and bottom Side rail, Door header etc.)
- Corner Casting: SCW49 (8pcs per set)
- Plywood: Hard wood/Apitong (28mm 19 plies)
- Door Looking Parts: Casting steel & SUS
- Door Gasket: EPDM
- Ventilator: ABS
- Tarpaulin: PVC (650g)

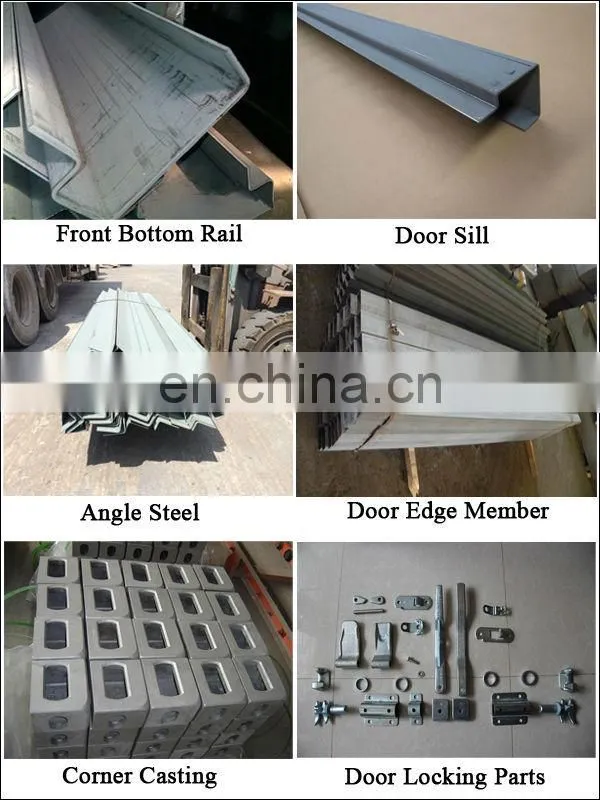

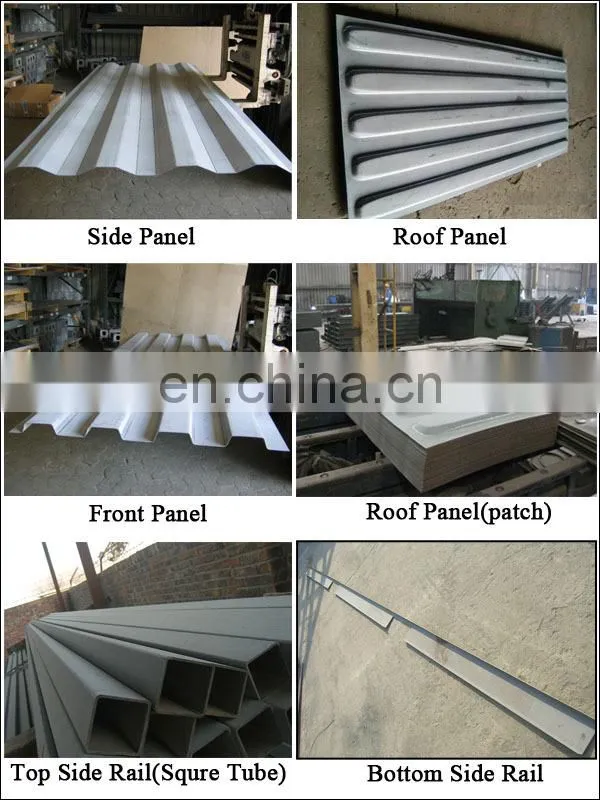

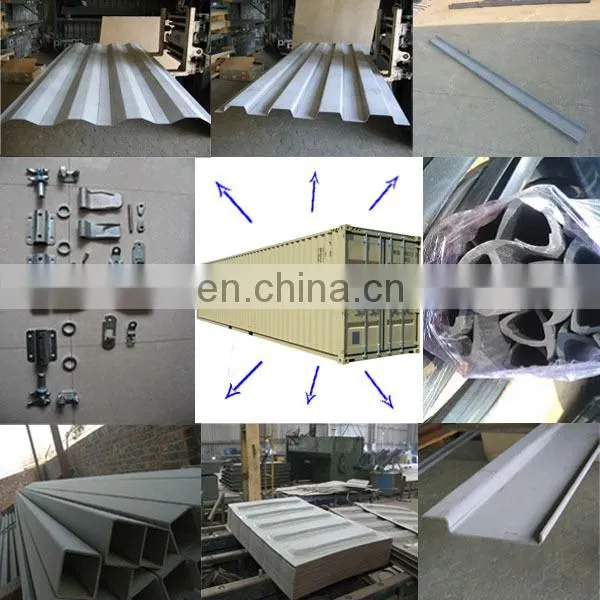

2. The Photos Display of container spare part:

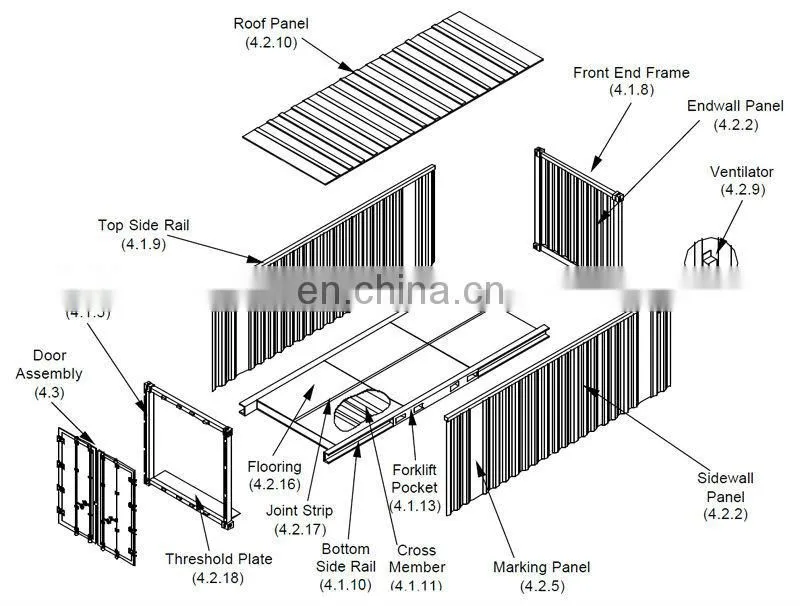

3. Details Specifications of container spare part:
| Part | Descriptions | Dimensions(mm) | Material |

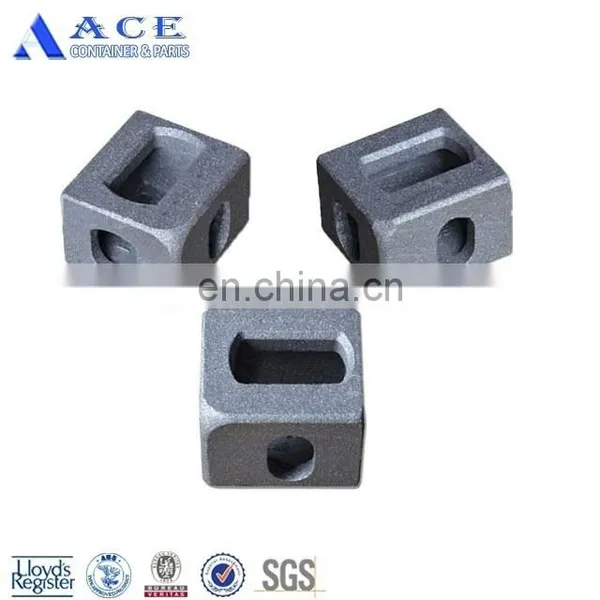

| Door End | ISO Corner Fitting, 8pcs/set | 178x162x118 | SCW490 |

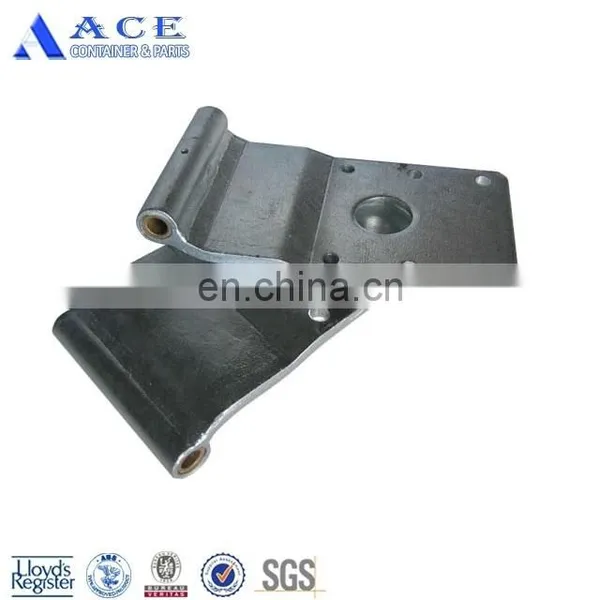

| Door Hinge Set | Blade, Pin, Lug, Bush | ||

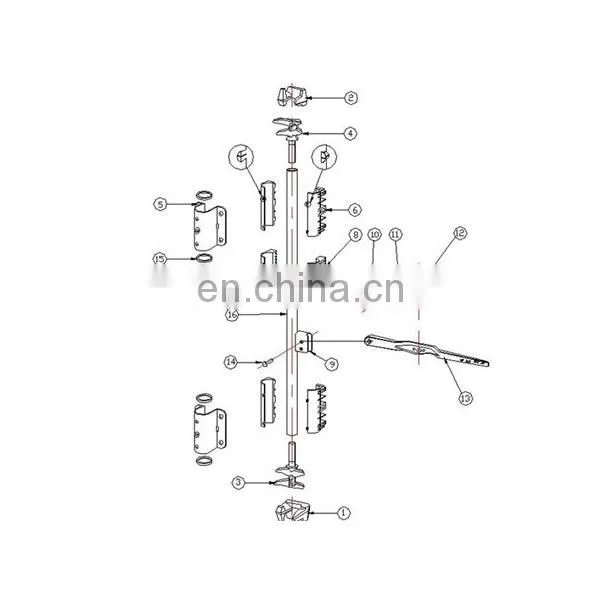

| Container Door Locking Device | |||
| Door Gaskets | 1143x2254 | EPDM | |
| Gasket Retainer | SUS304 | ||
| CSC plate | 0.8x100x200 | SUS304 | |
| Door Panel (3 CORR) | 2.0X943X1957 | CORTEN | |
| Door Vertical Member Edge SQ.Tube | 3.2x50x100x2260 | CORTEN | |
| Door Horizontal Member Edge, Channel | 3.0x50x150x1024 or 943 | CORTEN | |
| Door Sill | 4.5x158x150x2400 | CORTEN | |
| Door Header Lower | 4.0x112.5x113x137.5x2400 | CORTEN | |
| Rear Corner Post inner | 12x113x40x2353 | CORTEN | |
| Rear Corner Post outer | 6.0x70x39x230x2400 | CORTEN | |
| Front End | Front End Panel | 2.0x1024x2400 | CORTEN |
| Front Corner Post | 6.0x209x225x2400 | CORTEN | |
| Front Bottom Rail | 4.0X115X154x2400 | CORTEN | |
| Top End Member SQ.Tube (Horizontal) | 3.0x60x60x2112 | CORTEN | |
| Roof | Container Roof Panel (5 CORR) | 2.0x1045x2356 | CORTEN |
| Door Header Upper (Extension Plate) | 3.0x388x2400 | CORTEN | |
| Top End Rail (Extension Plate) | 3.0X397x2400 | CORTEN | |
| Side | Container Side Panel | 1.6x1116x2400 | CORTEN |
| Top Side Rail, SQ. Tube | 3.0x60x60x5702 | CORTEN | |
| Ventilator Cover | 204x67x25 | ABS | |
| Base | Container Plywood Flooring, 19ply | 28x1160x2400 | Hardwood |
| Floor screw | L=5 to 120 | ||
| Bottom Side Rail | 4.5x50x162x30x5702 | CORTEN | |
| Cross Member Small | 4x45x122x45x2350 | CORTEN | |
| Cross Member Large | 4x45x122x75x2350 | CORTEN | |
| Fork Pocket Bottom Plate | 360x300 | CORTEN | |
| Fork Pocket Top Plate | 360x2350 | CORTEN | |
| Gooseneck parts | CORTEN | ||
| Other | Lashing Ring | SS41 | |
| Hexagon Set screws Nuts and Bolts | L=6 to 200 | CORTEN | |
| Sealed pop rivet Blind rivet | 4.8*16.5 | CORTEN | |
| Decals: Weight& Capacity, UIC, Container Type, Ower's Serious | CORTEN | ||
| Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring | |||
| Flat Rack: Twistlocks | |||

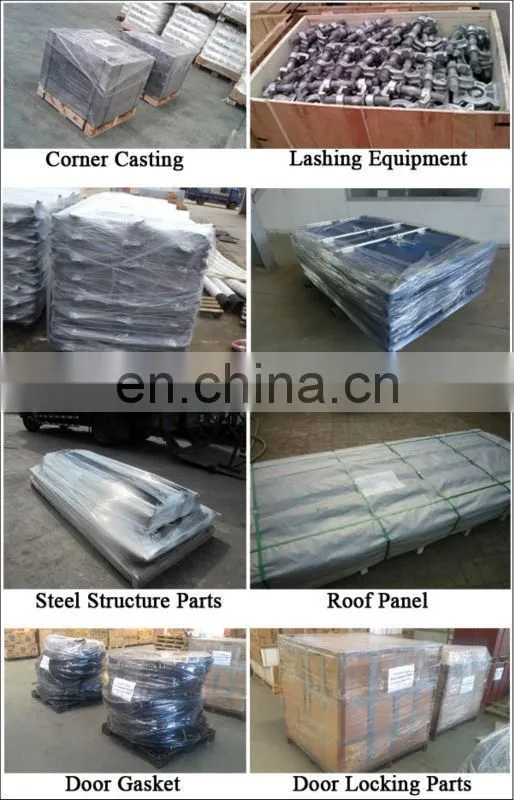

We are sure that our package is standard exported packing, which is strong enough to protect your cargoes from any damages. "This is Our Responsibility, ACE is Your Best Choice".
5. ACE Service:
With Development of container line, we are also further extending and improving our service, please check as follows:
- Buyer’s Logo and Color.
- Delivery to Main ports in China for free.
- 45 day’s Free stock in our CY
- Clearing Customs for the container for free.
- Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
We could arrange sea transportation to world main ports, and could arrange“One Way” service to some ports.
- One Way is very very popular way in Container and Logistic Line, and is also very better way to save sea freight cost.
- One Way is generally suitable for ISO shipping container, such as 20GP 40ft HC.
- One Way need more time than normal , since will take time to collect goods.
6. ACE Company Information:
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 4 years Gloden Member in Alibaba, Trade Assurance Serive in Alibaba. Also ACE Container has exported products to over 40 countries.
- Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
- Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
11 year's experience Exported to 42 country till the end of 2013

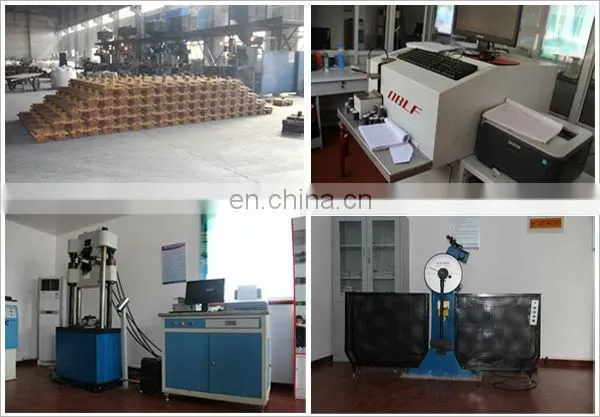

Testing Equipment:

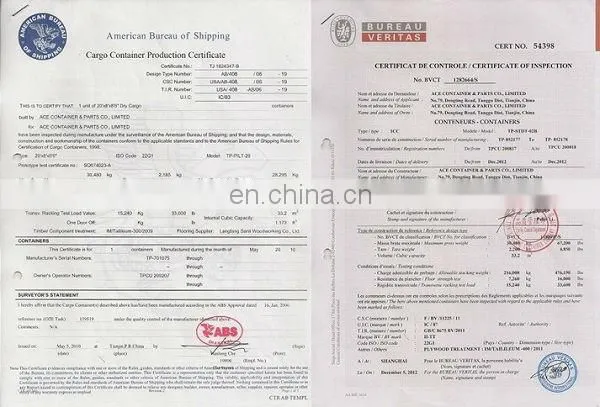

ABS, BV Certificate Display:

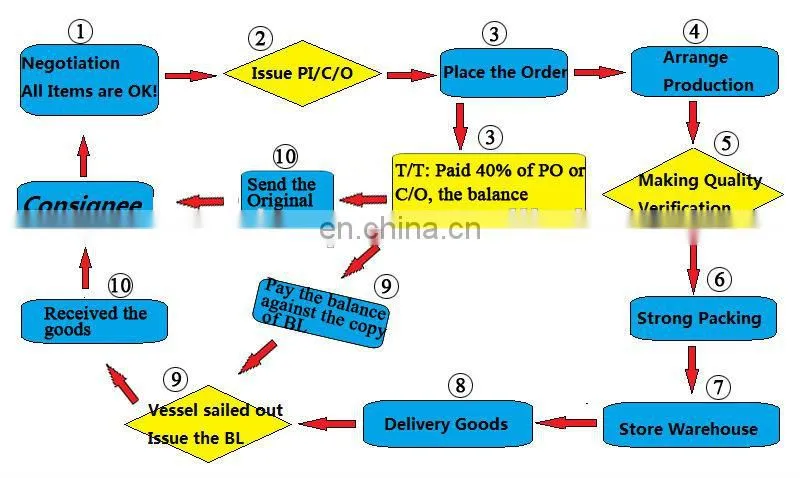

Exported Process:
7. FAQ:
Q: Are your container parts good quality?
Yes, all of our container are ABS, BV, GL, CCS Certificate. If our parts are not good, our container won't be good. How can we pass the ABS, BV, GL, CCS testing.
Q: Can we order mixed parts?
Sure, you could order.
Q: Any surface treatment for your parts?
Yes, with zinc rich pimer coating or Galvernised.
Q: Can i order a container to load our parts?
Yes, that will be good, since container parts may hard to loading and unloading, this may save your cost in port.
Q: Which port we could get your container in China?
Yes, ACE have stock in TianJin, QingDao, DaLian, LianYunGang, ShangHai, NingBo, XiaMen, ShenZhen, GuangZhou.
