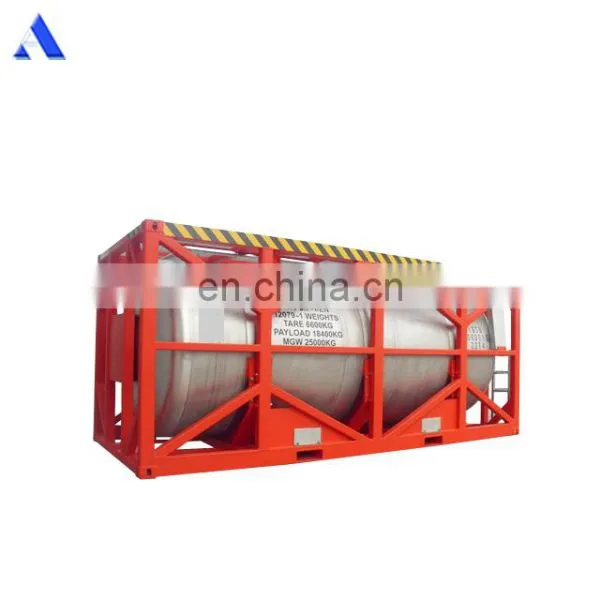

20ft Offshore Tank Container
1.1 General introductions:
DNV 2700L offshore tank container is design to loading hazardous liquid cargoes mounted in steel frame. The main application area is Oil offshore platform. These offshore tank must be complied with DNV2.7-1 & EN12079 standard. Please check as some details as follows:
- Complies with DNV2.7-1:2006 Standard.
- Complies with EN12079-2006 Standard.
- Materials: Frame: SPA-H, Tank Shell: 316L
- Design Temperature: Frame: -20°C, Tank: -40 °C
- DNV2.7-1 Certificate: Issured by DNV, LR
-
Design Standard: DNV2.7-1,EN12079,IMDG, ASME VIII Div 1, ADR/RID

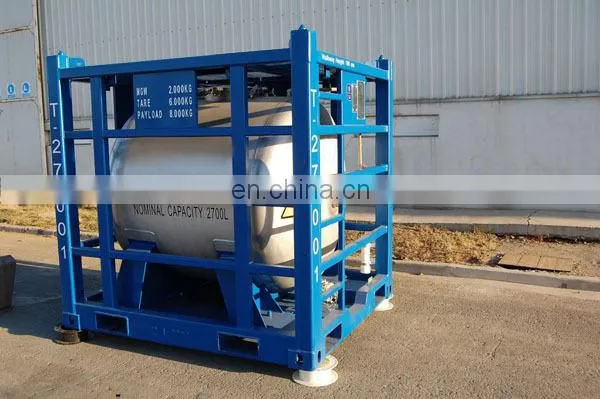

1.2 Photo Display_2700L offshore tank:
1.3 Specifications_2700L offshore tank:
Specifications: | |||
|
Dimensions (L x W x H) |
External |
2.150 x 1.850 x 2.134 |
M |
85’’ x 73’’ x 84’’ |
FT-IN |
||
Max. Capacity (Nominal) |
2700 |
L |
|
713 |
Gallon(US) |
||
Max. Filling capacity |
2565 |
L |
|
678 |
Gallon(US) |
||
Max. Gross Mass |
8000 |
KGS |
|
Tare Mass (Nominal) |
1920 |
KGS |
|
Max. Payload |
6080 |
KGS |
|
Pressure |
Design pressure |
0.267 |
Mpa |
Test pressure |
0.4 |
Mpa |
|
Design Temperature |
Frame |
-20℃ |
|
Tank |
-40℃ |
||
Stacking |
in warehouse |
2 high |
|
in transport |
1 high |
||
Material |
Frame |
SPA-H,Q345D |
|
Tank |
316L |
||
Seal Gasket |
PTFE outer encapsulating EPDM inner |
||
Finish |
Tank |
Internal & External surface: Weld seam: acid cleaning and passivation |
|
Frame |
Painted or hot-dip zinc (according to customer requirements) |
||
SPECIAL FEATURES: | |||
1. Approval by Main Classification Society: BV / DNV / LR | |||
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard | |||
3. Discharge valve: Have three serially fitted and mutually independent shut-off devices; Drip cap and chain. | |||
4. Air vent valve: 3/4" ball valve; Relief valve: 2 1/2"; Dipstick Valve:1 1/2" | |||
5. Document box: PVC; With drip cap and chain; Water tight. Manhole: 460mm | |||
|
6. Four points lifting with 45° Max to the vertical through 4 lugs; 4-way fork pockets (Internal dimensions 300mm x 120mm) | |||

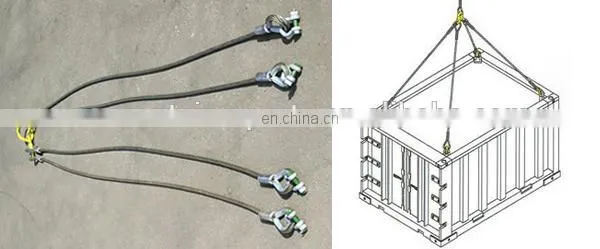

1.4 2700L offshore tank_Sling:

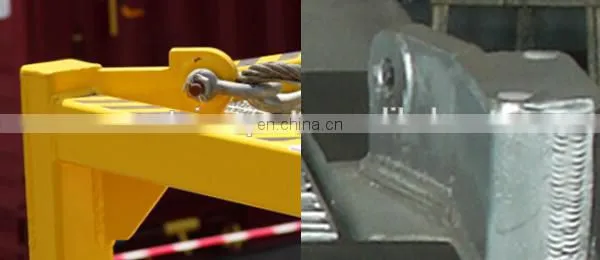

1.5 Offshore tank_Padeye:
Click Here and view more Shipping Containers .
- 20HC, 40GP, 40HC ISO container
- Open Side Container
- Open Top Container
- 10ft, 45ft, 48ft, 51ft 53 ft container
- Flat Rack & Platform
- Storage Container

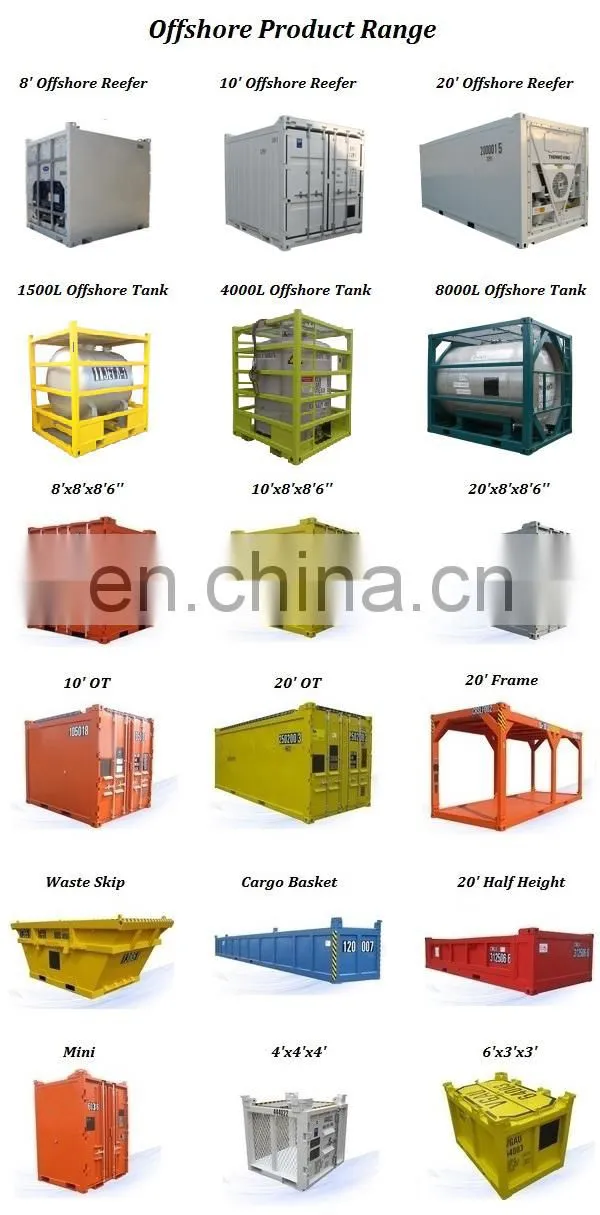

- DNV Offshore Container 10ft 20ft, 10OT, 20OT
2.1 SOC, 2700L offshore tank have fork pocket for easy loading, has no any package,
2.2 Offshore tank Laoded into 40ft HC Container
3.1 With development of container line, we are also further extending and improving our service, please check as follows:
- Buyer’s Logo and Color.
- 45 day’s Free stock in our CY
- Clearing Customs for the container for free.
- Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
- Arrange “One Way” service to some mian ports.
- OEM Tank is available
- Accept third party inpection and testing
- Supply all kinds of offshore equipments.
ACE Container & Parts Co., Ltd. has been container line for many years, have rich expreience for faricating, Design, Shipping and so on.
- Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
- Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
- Exported our product to over 45 countries till the end of 2014
4.1 Equipments:

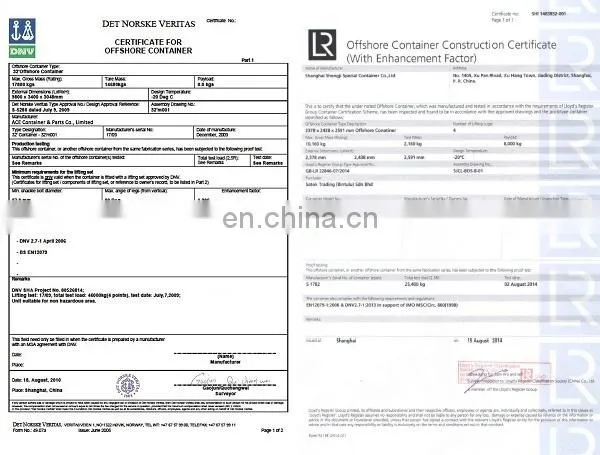

4.2 DNV & LR Certificate Display:
4.3 Transaction Process:
5.1. Are your offshore tank DNV2.7-1 & EN12079 Standard?
Yes.
5.2 Do your offshore tank also meet orther internation standard?
10ft offshore tank also meet IMDG, ADR/RID
5.3 Do you have any Certificate?
Yes, we provide DNV2.7-1 / EN12079 Certificate issued by BV / DNV / LR
5.4 Can you delivery to our named port?
Sure, we have shipped our container to over 45 countries.
5.5 Do you provided DNV Certified sling?
Yes, we exported hundreds of offshore containers and the sling supplier will produce as per our requirement.
