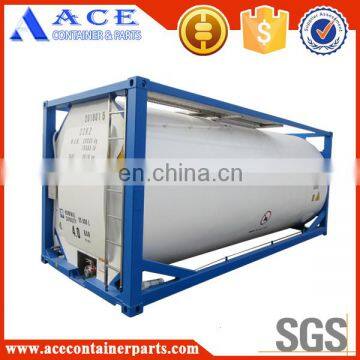

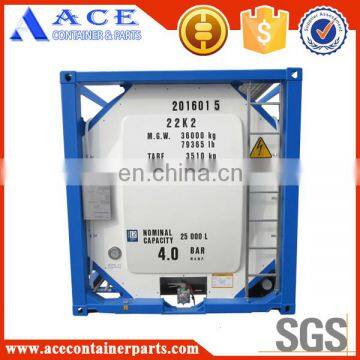

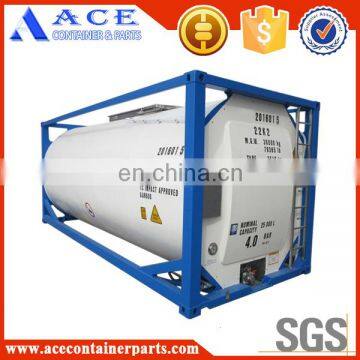

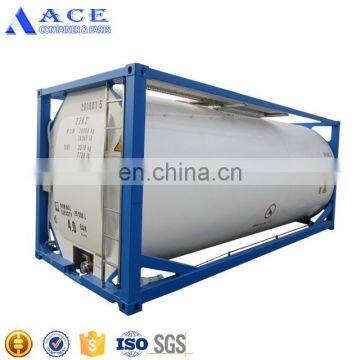

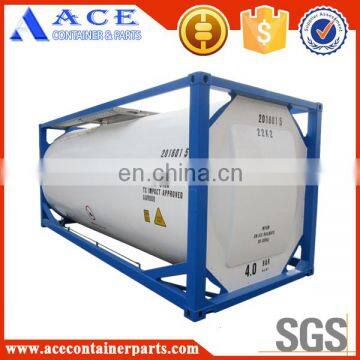

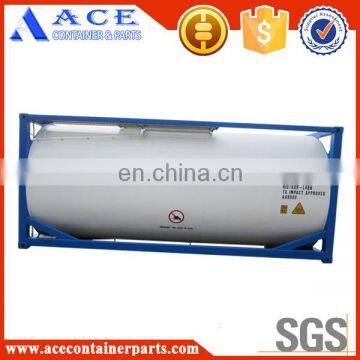

LR Approval T11 Iso Tank Container 20ft

LR Approval T11 Iso Tank Container 20ft thumbnail-1
LR Approval T11 Iso Tank Container 20ft thumbnail-2
LR Approval T11 Iso Tank Container 20ft thumbnail-3
LR Approval T11 Iso Tank Container 20ft thumbnail-4
LR Approval T11 Iso Tank Container 20ft thumbnail-5
LR Approval T11 Iso Tank Container 20ft thumbnail-6
LR Approval T11 Iso Tank Container 20ft photo-1
LR Approval T11 Iso Tank Container 20ft photo-2
LR Approval T11 Iso Tank Container 20ft photo-3
LR Approval T11 Iso Tank Container 20ft photo-4
LR Approval T11 Iso Tank Container 20ft photo-5
LR Approval T11 Iso Tank Container 20ft photo-6
US$ 14,500 - 16,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACE
Place of Origin:
Tianjin, China
Model Number:
20K2
Contact Supplier Request Quote Chat Now
White Tarpaulin Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACE
Place of Origin Tianjin, China
Model Number 20K2
Type Tank Container, UN T11 portable tank
Product Description
Specifications - iso tank container 20ft
Frame Dimensions (L x W x H)
6058 x 2438 x 2591 mm
Nominal Capacity
25000 litre (±0.75%)
Maximum Gross Mass
36000 kgs
Tare Mass
3510 kg (± 3%)
Design Temperature (Frame & Tank)
-40 to +130 °C
Pressure
Working
4.0 bar
Test
6.0 bar
Material
Tank (Shell & Ends)
SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
Frame
SPA-H or equivalent
Insulation
Shell
Rockwool (50kg/m3) 50mm thick on aluminium foil.
Ends
Glasswool (16kg/m3) thickness to suit on aluminium foil.


Steam Heating
6 runs.
110mm width stainless steel 304.
1” BSP inlet, 1” BSP outlet both with captive caps and cable.
4 bar working pressure, 6 bar test with warning decals and markings.
A condensate drain is fitted.
Manhole
500mm low profile, 8 point fixing with Super Tanktyt Lid seal.

Safety Relief
Assembly
1-off.
2½” BSP Supermaxi Highflow relive, without flameproof gauze.
Pressure only set at +4.4 bar (63.8psi).
The assembly is situated off centre on a tangential tank pad.
Air Inlet

assembly
DN 40 ball valve terminating with 1½” BSP connection and cap.
The assembly is situated off centre on a tangential tank pad.
Top Discharge
DN80 stainless steel 316 tank pad with a blind flange.
The assembly is fitted on centre on a horizontal tank pad.
Bottom
Discharge
DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly
valve terminating with a 3” BSP spigot with 3” BSP blind cap and chain.
Thermometer
A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual
scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar.
Document
holder
A clear plastic document holder ø110mm is fitted to the rear right hand side beam.
A drain hole is provided at the lowest point.
Calibration
A calibration plate marked in cm/litres is fitted on the spillbox side wall.
No calibrated stainless steel grade dipstick and bracket fitted.
Design Code
ASME VIII DIV. 1
Approval
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3
Production Process
Our Company

ACE Container & Parts Co., Limited, which is a supplier of shipping container and container parts in China. The main products include ISO dry container, reefer container, tank container, offshore equipment and container house, etc.


The main export countries include United States, Canada, Australia, Japan, New Zealand, Malaysia, Korea, India, South Africa, Germany, Spain, Netherlands, the United Arab Emirates, etc.  With professional product knowledge and many years of export experience, won a good reputation all ove the world.

Certification
FAQ

5.1. Are your iso tank containers for sale brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.


5.2 Does your iso tank containers for sale meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11


5.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production


5.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.


5.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
