Daikin Thermo King Carrier Cooler 40 feet freezer container
1.1 General introductions_40 feet freezer container:
- Approval by BV, GL
- Meet requirement of ISO, UIC, TIR, CSC, TCT

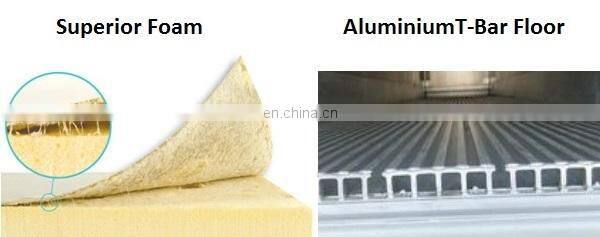

- Materials: Main body: Corten-A steel, Floor: Aluminum T type.
- Our container is sea worthy and water proof.
- Color: as per your requirement, stock color is white
- Also modify container as per your requirement.
- Inside Temperaure Range: -30 to +30 centigrade
- Cooling Unit: Daikin, Carrier, Thermo King.

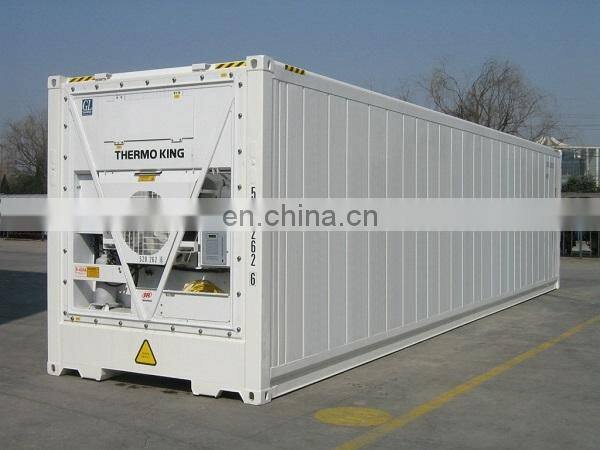

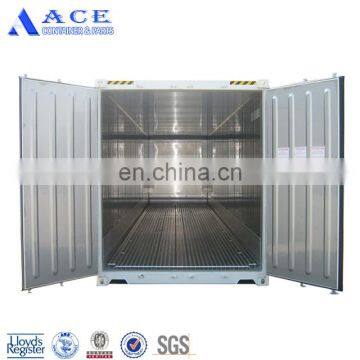

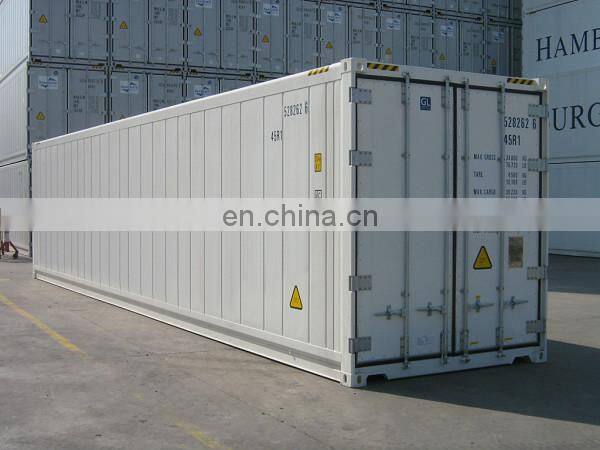

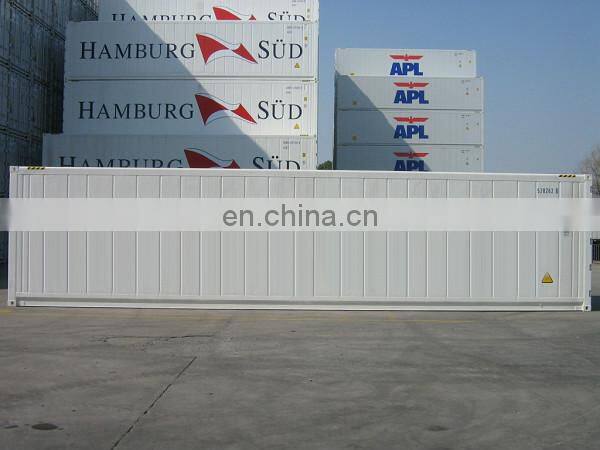

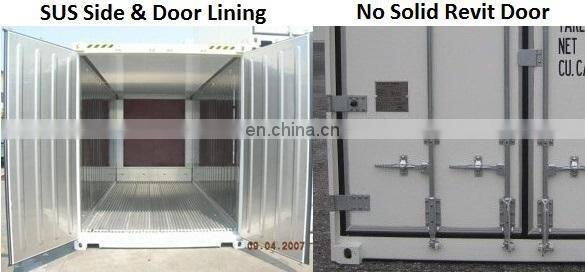

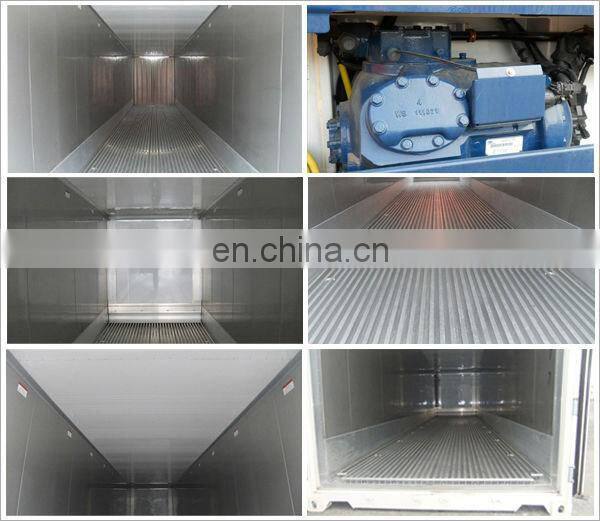

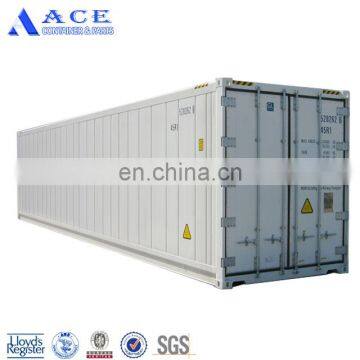

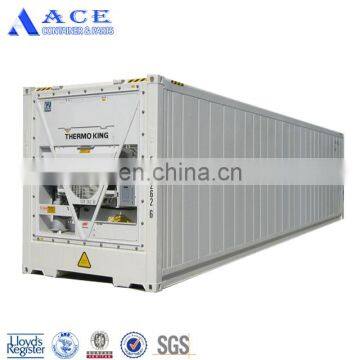

1.2 The Photos_40 feet freezer container:
1.3 Specifications_40 feet freezer container:
|
20FT HC Reefer |
40HC Reefer |
|
|
External Dimensions (MM) |
Length |
6,058 |
12,192 |
Width |
2,438 |
2,438 |
|
Height |
2,591 |
2,896 |
|
|
Internal Dimensions (MM) |
Length |
5,450 |
11,590 |
Width |
2,294 |
2,294 |
|
Height |
2,578 |
2,554 |
|
Door Opening |
Width |
2,290 |
2,290 |
Height |
2,569 |
2,569 |
|
Inside Cubic Capacity (CU.M) |
32.30 |
67.9 |
|
Maximum Gross Weight (KG) |
30,480 |
34,000 |
|
Tare Weight (KG) |
3,060 |
4,560 |
|
Maximum Payload (KG) |
27,420 |
29,440 |
|
Allowable Stacking Weight (1.8G) |
216,000 |
216,000 |
|
Main Circuit |
3 Phase |
||
AC 440, 460V/380, 400, 415 | |||
60/50HZ | |||
Cooler Brand |
Daikin / Thermo King / Carrier |
||
Refrigerant:
| R134a | R404a | |
| Molecular Formula: | CH2FCF3 | R143a, R125a, R134a |
| Molecular Weight: | 102 | ****** |
| ODP | 0 | 0 |
| Boiling Point: | -26.1°c | -46.1°c |
| GWP | 0.2 | 0.6 |
Heat Leakage(Kcal/Hr.°c)
| 20ft reefer | 40ft reefer | |
| ISO1496-2:1996 | ≤26 | ≤51 |
| ACE Prodcut: | 23 | 43 |
| Result: | Good | Good |
Air Leakage(Cbm/Hr):
| 20ft reefer | 40ft reefer | |
| ISO1496-2:1996 | ≤10 | ≤10 |
| ACE Prodcut: | 5 | 5 |
| Result: | Good | Good |

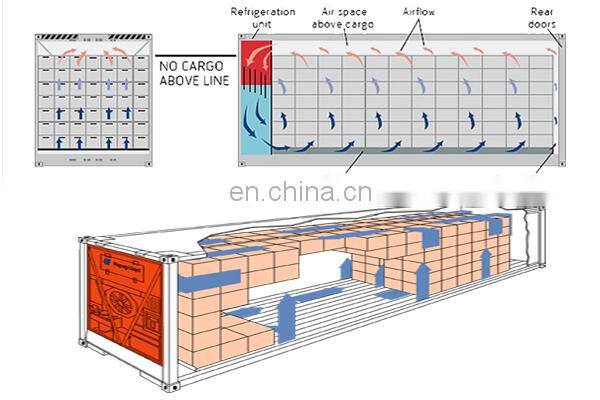

Airflow in Reefer Container:

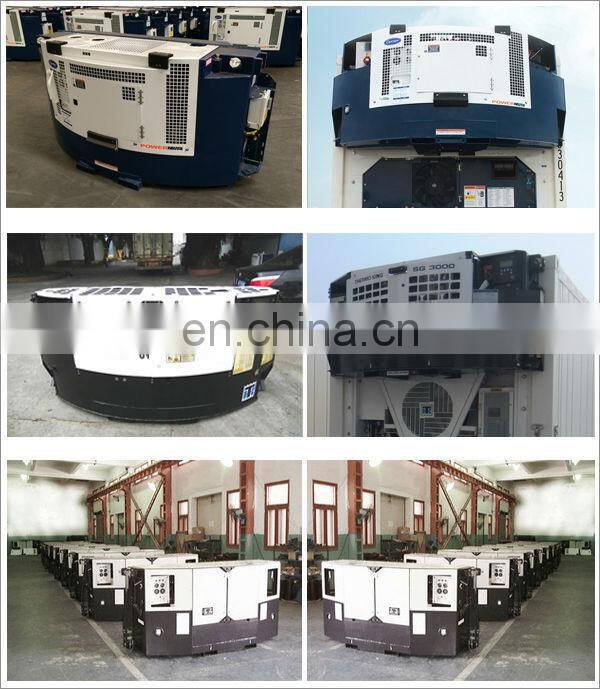

Also Supply Generator for 40 feet freezer container transportation on Land and railway:
—Type : Clip on the reefer container body
—Application Environment: Railway or Land freight and no other power connected
—Fuel/Tank Volum: Diesel/360-475L
2.1 No package requirement for 40 feet freezer container.
- Usually we will arrange SOC empty container if you have no cargoes to load in China.
- If you have cargoes to load, you could load your goods with our container, and exporting together, which will save more cost for container.
12 year's experience Exported to 55 country till the end of 2015
3.1 Factory Equipment:
3.2 Product Certificate:
