Wireless Load Cell Dynamo meter for Water Bag

Wireless Load Cell Dynamometer for Water Bag

The necessary dynamometer for the proof load testing

Description

Wireless Load cell is the necessary dynamometer instrument for the load testing with water filled weight bags.Measuing capacity is available as 1t,2t,3t,5t,10t,20t,30t,50t,100t,and 200t.

Wireless dynamometer used for the wiight measuring of prood load testing using water weight bags.The load cell set consist of a load link with two shackles,wireless indicator.

Our linked-type wireless load cell dynamometer is an extrmely well-built instrument for industry use,as a standard wireless tool offer universal applications.Whether used as conventional crane weight or to measure force.it is microprocessor controlled for precision accuracy,calibration iseasier with wireless indicator.

Specification of Wireless Load Cell Dynamometer

Load Cell Features

1.Rugged construction

2.Accuracy :0.1% of capacity

3.All functions and units are clearly display on the LCD(with backighting)

4.Digits are 1 inch high for easy distant viewing.

5.Two user programmable Set-point can be used for safety and warning applications or for limit weighing.

6.Long battery life on 3 standard"LR6(AA)" size alkaline batteries.

7.All commonly used internationally recognized units are available:Kilograms(kg),short Tons(t),pounds(lb)

8.Infrared Remote control easier to calibration (with password)

9.Infrared Remote control with manyu functions:“ZERO”,"FUNC","PEAK","BKLT","Unit Change",and "Power OFF"

10.3 local mechanical keys:"ON/OFF","ZERO" and "Unit Change". low battery warning.

11.Wireless palm indicator

Wireless Indicator

The dynamometer out-put signal is digital.And parametr adjustment and temperature compensation will be finished in internal. Though 470MHz wireless module to launch after reasonable. Handheld receive load cell output. And its internal battery power consumption values.

The show them on the LCD display.

Mover over the handheld can through RS232 output to computer or large screen display.

Product Characteristics:

Display:

1.LCD 71 x 29 with backlighting,6 bit show weight value;

2.Hold on the peak value,can contact with computer or large *screen display by RS232;

3.Unit:kg;lb;t

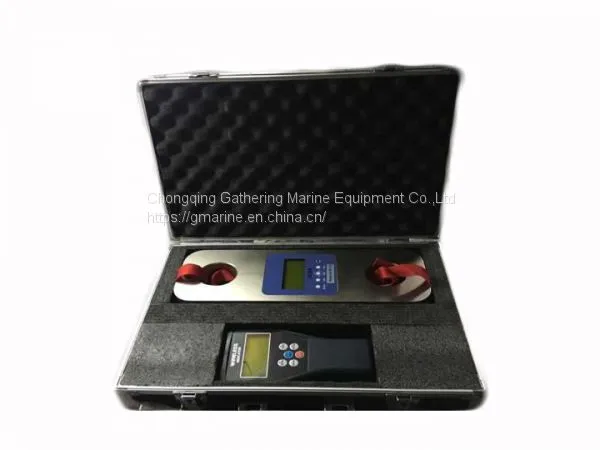

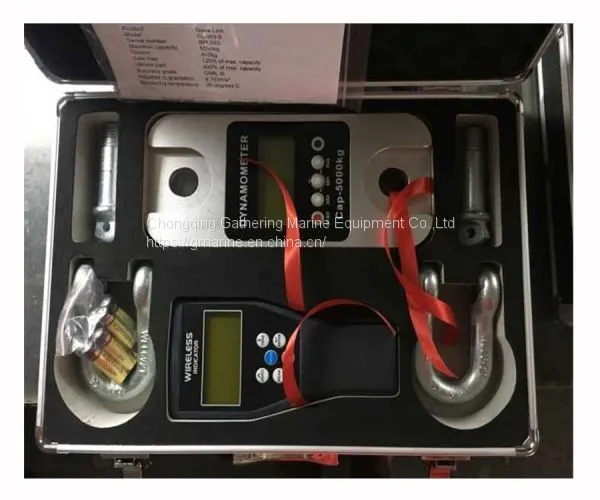

Products show

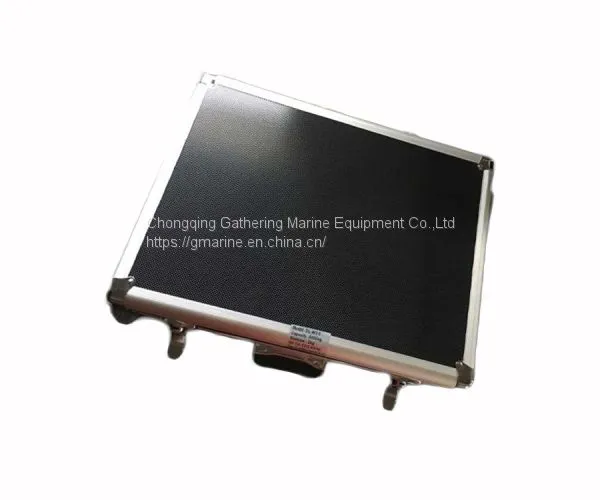

Packaging
