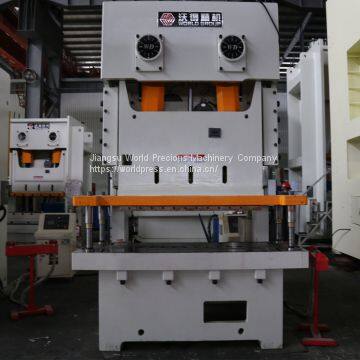

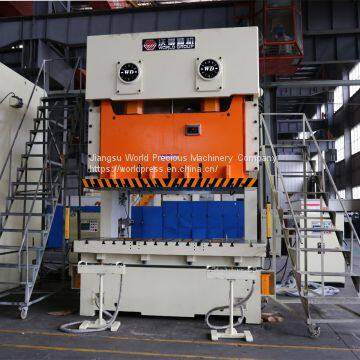

JH25 Series C-frame Two Point Power Press Double Crank Press Machine 250 Ton

Name: JH25 Series C-frame Two Point Power Press Double Crank Press Machine 250 Ton
Brand: WORLD
Availability: InStock

FOB Price

US$ 10000 - 50000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WORLD	Place of Origin	China
Model Number	Jh25-250T	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	3 years
Weight	35000kg	Dimension(LWH)	270028504180mm
Voltage	220V/380V/400V/440V	Condition	New
Power(W)	30kw	CNC or Not	Normal
Power Source	Mechanical

Product Description

Details:
The JH25 C-frame double crank press is the commonly used product in blanking, piercing and cutting the larger piece of sheet metal.
The worktable in large size is more suitable for the progressive dies working on different stations, which can greatly improve the production efficiency.

FEATURES:
1. Welded body with steel plate and high intensity;
2.Suitable for multiple dies automatic line and multi level dies continuous punching;
3.Double crankshaft pitmen totally eliminating side forces by reverse rotation;
4.Combined wet multi discs friction clutch and brake;
5.Cluster gear adopts the flooding oil lubrication;
6.Six-face rectangle lengthen guide;
7.Adopts electric die height adjustment with digital display;
8.Equipped with hydraulic overload protecting device.

Specifications of JH25 Series C-frame Two Points Press
Parameter			Unit	JH25-110	JH25-160	JH25-200	JH25-250	JH25-315
Nominal Capacity			KN	1100	1600	2000	2500	3150
Nominal Stroke			mm	5	6	7	7	7
Slide Stroke Length		S	mm	180	200	250	280	280
		H	mm	110	130	150	170	170
Slide Stroke	Fixed	S	times/min	50	45	35	30	30
		H	times/min	70	60	50	45	40
	Variable	S	times/min	35-65	35-55	25-40	20-35	20-35
		H	times/min	45-85	40-70	30-60	30-50	30-45
Max. Die Set Height		S	mm	400	450	500	550	550
		H	mm	435	485	550	605	605
Die Height Adjustment			mm	90	100	110	120	120
Throat Depth			mm	350	390	430	470	480
Distance Between Uprights			mm	1470	1600	1920	2190	2170
Bolster Size	F x B		mm	680	760	840	920	940
	L x R			1880	2040	2420	2700	2800
Bolster Thickness			mm	155	165	170	180	190
Slide Bottom Size	F x B		mm	520	580	650	700	700
	L x R			1400	1500	1850	2100	2100
Bolster Surface Height			mm	900	900	1000	1100	1090
Overall Size	F x B		mm	1820	2080	2370	2700	2730
	L x R			1970	2150	2550	2850	2840
	H			3200	3380	3820	4180	4180
Motor Power			Kw	11	18.5	22	30	37
Weight			Kg	14000	19000	26500	35000	36000
Press Pressure			Mpa	0.5

Standard Equipments:	Optional Equipments:
1) Wet clutch	1) Light curtain
2) Hydraulic overload protecting pump	2) Foot pedal
3) Auto lubrication system	3) Leather bag die cushion
4) Manual lubrication system	4) Die quick change device
5) Balance cylinders for slide and upper die	5) Auto feed shaft
6) Digital die height indicator	6) Inverter
7) Joint for miss-feeding	7) Absorbing pads
8) Touch screen
9) Electronic crankshaft angle indicator
10) Cam controller
11) Movable control panel
12) Die height adjusted motor
13) PLC
14) Device for knockout
15) Joint for air
16) Foundation bolts

outique Accessories:

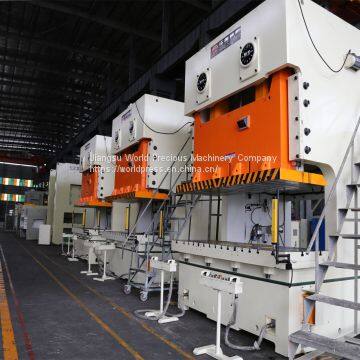

Our Equipment :

Advanced Technological Power :
World (Shanghai) R&D center cooperate with the professional companies in USA, Germany, France, Japan, Sweden and the colleges and universities in china so as to develop and perfect the products with superb technique promptly.
Additionally, authority organization in the field supervises the quality from the parts to the whole machine. professional team with craft design and assembly ensures the accuracy of parts.
We establish R&D center in Shanghai to welcome more excellent talents and develop new craft.
Jinan forging and welding bureau, Shanghai press machine supervision station monitor the quality of parts; the team of professional craft design and manufacture ensure the accuracy of parts based on the excellent craft.

After Service:
In this world, people cooperate with WORLD customers every day. The quality of WORLD products is facing test and they are endowed with great mission.
World thinks quality service is not only simple maintenance. Our service engineers not only find problem for taking action in advance but also advise how to use the machine more properly and carefully.
Worldwide service network and convenient service show the strong responsibility and sense of historical mission.

To all of our customers:
Our best greeting is given to the esteemed customers of World Precise Machinery (Jiangsu) Co. Ltd.
We appreciate that you purchase our presses of varieties of types. we produce about 30 series of presses including300 types of big, intermediate and small presses, such as ordinary numerically controlled guillotine shear, ordinary numerically controlled bending machine, full numerically controlled bending machine, numerically controlled turret punching-machine and varieties of types of oil hydraulic presses.
Guaranty:
If you purchase our product, we promise that the length of warranty for mechanical part is one year and the length of warranty for electrical part is one year and the length of warranty for electrical part is half one year.
