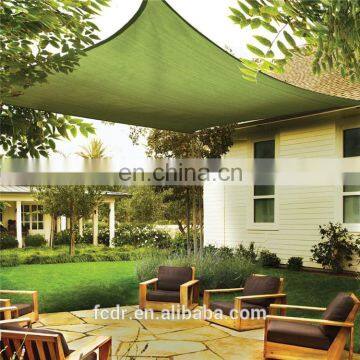

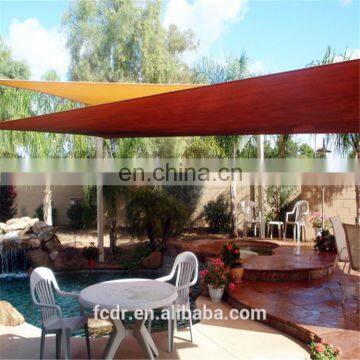

Factory Supply Triangle Shade Sail for Carport , Sun Shade Sail Nets
US$ 2,500 - 2,650
MOQ: 2 Tons
Key Specifications
Get Latest Price
Brand Name:
dingrui
Place of Origin:
Shandong, China
Model Number:
DR-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Shade Sail Wind Screen Canopy Green Generation Commercial NetUS$ 2,500 - 2,650MOQ: 2 Tons -
Garden Shade Sail, Triangle Shade Sail Carport, Hdpe Shade SailUS$ 2,500 - 2,650MOQ: 2 Tons
-
Outdoor Shade Sail Cloth/sail Cloth Shade/triangle Sun Sail ShadeUS$ 1 - 6MOQ: 1000 Pieces
-
Garden Sun Shade Sail Cloth , Discount Shade Sails, Wave Shade SailUS$ 1 - 6MOQ: 1000 Pieces
-
High Quality and Lowest Price Car Packing Sun Shade NetUS$ 2,500 - 2,650MOQ: 2 Tons
Brand Name
dingrui
Place of Origin
Shandong, China
Model Number
DR-1
Feicheng Dingrui Plastic Co.,Ltd
Factory Supply Triangle Shade Sail for Carport , Sun Shade Sail Nets
Product Description

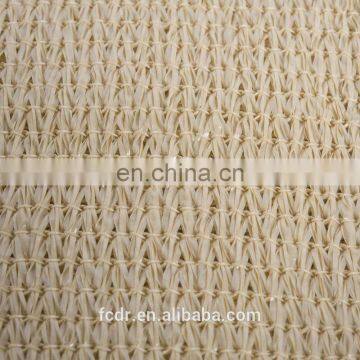

| Description | sun shade netting |
| Material | 100%virgin HDPE And Polyester |
| Net Weight | 160-320G/M2 |
| Shading rate | 95% |
| Colour | blue;black(as per required) |
| Width | 0.6-6M(as per required) |
| Roll Length | 1-50M;1-100M;1-200M (as per required) |
| Type | Wrap knitted :(Two-needle shade netting, three-needle, four-needle, six needle and eight needle netting) |
| U.V. | as customized requirement |
| M.0.Q. | 1.5-2T |
| Terms of Payment | T/T;L/C |
Product Application
Finished Products
Pad Eye;
Used to attach shade sail corner ring to a wall in conjuction with "D" shackle.
In size 6mm or 8mm, other sizes are available on request;
S Hook;
used to link shade sail corner to pad eye or eye bolt;
Normally in size 6mm or 8mm, other sizes availabe on request
Turnbuckle;
used to attach shade sail corner ring to a fixing point and provide tension to the sail.
Size in 8mm or 10mm;
Eye Bolt;
used to to form a fixing through a timber post.
Size: 8x130mm, other size available on request.
D Shackle;
Used to link shade sail corner to pad eye or eye bolt.
In size 6mm or 8mm, other sizes available on request
Snap Hook:
used to link shade sail corner to pad eye or eye bolt.
Size mostly in 8x80, 10x100mm
Chains;
Used to fix shade sail;
In size 4mm x 2metre
Master Cleat.:
Used to hold rope for shade sail;
B- In size 5inch
How to make a shade sail
Gather your supplies
Suitably sized and shaped sail (see Notes, below)
100mm dia. x 4mm wall thickness galvanised steel posts
Concrete mix (4 bags per post)
Suitable stainless-steel fixings for attaching sail to your combination of posts, fasciae and walls. These include eye bolts for posts, pad eyes for wall fixings, external-grade Chemset chemical anchor (if fixing into masonry), U-bolts, strap tensioners, S-hooks, D-shackles, fascia supports and turnbuckles
Step 1
Lay sail out on ground. For a 5 x 3m sail running parallel to wall, it should be 300mm from wall to allow for tensioning. Mark out positions of posts and wall or fascia fixings, allowing an extra 300 and 500mm from each corner to allow for tensioning. Square and rectangular sails are normally installed as a hyperbola, so diagonally opposite posts or fixing points are high or low.
Step 2
For each post, dig a 400 x 400mm hole 800-1000mm deep. If ground is firm, lay about 100mm of 20mm aggregate in base of hole. If ground is soft, pour about 100mm of concrete in hole.
Step 3
Bore a hole near bottom of pole and insert a galvanised steel bolt with nut. This keys post in concrete and stops round posts rotating. Fit a heavy-duty, stainless-steel eye bolt 50-100mm down from top of posts. Use double nuts (1 a lock nut) so it cannot undo.
Step 4
Stand posts in holes with eye-bolt facing diagonally opposite post. Brace posts with temporary props and ensure they are plumb in 2 directions.
Step 5
Fill each post hole with a fairly dry concrete mix and tamp concrete well. For most smaller sails (under 5m square), posts can be vertical, but for larger sails, move top of post away from opposite post by 150-200mm, so it leans out from sail slightly to help take the strain. Re-tamp concrete and finish surface with a slight slope away from post so water can drain. Let concrete cure for 24-48 hours.
Step 6
While concrete cures, secure wall and fascia pad eyes, if required. Never rely on the fascia alone; fit fascia supports to fasciae and rafters first to give adequate strength. If fixing to masonry, use an appropriate anchor system. In many cases, a chemical anchor is ideal, but an alternative is to use epoxy together with a conventional masonry anchor.
Step 7
Once concrete has cured, spread sail back out on ground. Attach fixings to corners of sail with turnbuckles wound out to as slack as possible (you will need turnbuckles on at least 2 corners). Lift each corner to an eye bolt, then tension sail using turnbuckles or tension straps. If you need to extend length of fixing, use straps. Re-tension fixings as necessary over time and clean sails periodically.
Used to attach shade sail corner ring to a wall in conjuction with "D" shackle.
In size 6mm or 8mm, other sizes are available on request;
S Hook;
used to link shade sail corner to pad eye or eye bolt;
Normally in size 6mm or 8mm, other sizes availabe on request
Turnbuckle;
used to attach shade sail corner ring to a fixing point and provide tension to the sail.
Size in 8mm or 10mm;
Eye Bolt;
used to to form a fixing through a timber post.
Size: 8x130mm, other size available on request.
D Shackle;
Used to link shade sail corner to pad eye or eye bolt.
In size 6mm or 8mm, other sizes available on request
Snap Hook:
used to link shade sail corner to pad eye or eye bolt.
Size mostly in 8x80, 10x100mm
Chains;
Used to fix shade sail;
In size 4mm x 2metre
Master Cleat.:
Used to hold rope for shade sail;
B- In size 5inch
How to make a shade sail
Gather your supplies
Suitably sized and shaped sail (see Notes, below)
100mm dia. x 4mm wall thickness galvanised steel posts
Concrete mix (4 bags per post)
Suitable stainless-steel fixings for attaching sail to your combination of posts, fasciae and walls. These include eye bolts for posts, pad eyes for wall fixings, external-grade Chemset chemical anchor (if fixing into masonry), U-bolts, strap tensioners, S-hooks, D-shackles, fascia supports and turnbuckles
Step 1
Lay sail out on ground. For a 5 x 3m sail running parallel to wall, it should be 300mm from wall to allow for tensioning. Mark out positions of posts and wall or fascia fixings, allowing an extra 300 and 500mm from each corner to allow for tensioning. Square and rectangular sails are normally installed as a hyperbola, so diagonally opposite posts or fixing points are high or low.
Step 2
For each post, dig a 400 x 400mm hole 800-1000mm deep. If ground is firm, lay about 100mm of 20mm aggregate in base of hole. If ground is soft, pour about 100mm of concrete in hole.
Step 3
Bore a hole near bottom of pole and insert a galvanised steel bolt with nut. This keys post in concrete and stops round posts rotating. Fit a heavy-duty, stainless-steel eye bolt 50-100mm down from top of posts. Use double nuts (1 a lock nut) so it cannot undo.
Step 4
Stand posts in holes with eye-bolt facing diagonally opposite post. Brace posts with temporary props and ensure they are plumb in 2 directions.
Step 5
Fill each post hole with a fairly dry concrete mix and tamp concrete well. For most smaller sails (under 5m square), posts can be vertical, but for larger sails, move top of post away from opposite post by 150-200mm, so it leans out from sail slightly to help take the strain. Re-tamp concrete and finish surface with a slight slope away from post so water can drain. Let concrete cure for 24-48 hours.
Step 6
While concrete cures, secure wall and fascia pad eyes, if required. Never rely on the fascia alone; fit fascia supports to fasciae and rafters first to give adequate strength. If fixing to masonry, use an appropriate anchor system. In many cases, a chemical anchor is ideal, but an alternative is to use epoxy together with a conventional masonry anchor.
Step 7
Once concrete has cured, spread sail back out on ground. Attach fixings to corners of sail with turnbuckles wound out to as slack as possible (you will need turnbuckles on at least 2 corners). Lift each corner to an eye bolt, then tension sail using turnbuckles or tension straps. If you need to extend length of fixing, use straps. Re-tension fixings as necessary over time and clean sails periodically.
