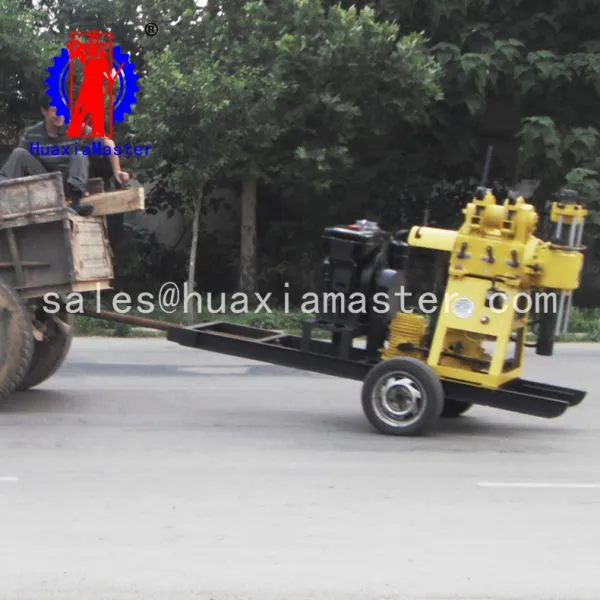

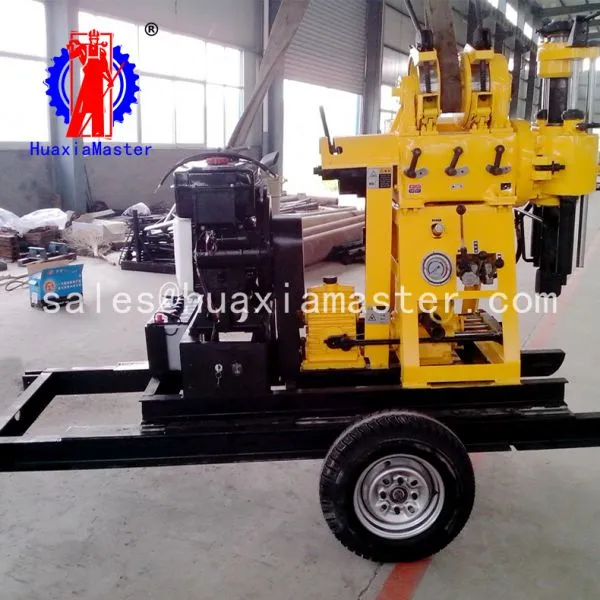

1. Characteristics of XYX-200 wheeled hydraulic core drilling rig
· hydraulic cylinder, high efficiency
· wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.
· pressure gauge display the condition of the bottom of the drill hole.
· the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.
· the working efficiency is high and the operation is convenient, safe and reliable.
2. Technical parameters of XYX-200 wheeled hydraulic core drilling rig
XYX-200 wheeled hydraulic core drilling rig | |
Drill hole depth |
200m |
Maximum opening diameter |
300mm |
Final hole diameter |
75mm |
Drill pipe diameter |
60mm |
Borehole inclination |
90°-75° |
Rig weight (without power) |
1300kg |
Trigonometric belt |
B950*4 B1700*3 |
Active moving distance |
300mm |
Power |
Diesel engine/motor 22hp/16.2kw |
A vertical scroll of painting | |
Shaft rotation speed |
64/128/ 287/ 557 r/min |
Vertical axis stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
2400kg |
Single rope lifting speed |
0.41/ 0.82/1.64m/s |
Wire rope diameter |
13mm |
Wire rope capacity |
35m |
Hug floodgate caliber |
260mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single cylinder double action |
Maximum displacement |
Diesel engine 170L/min Matching motor 150L/min |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Inlet pipe caliber |
40mm |
Outlet pipe caliber |
30mm |
Triangle conveyer belt |
B1728mm |
Type |
CBT-F-314 |
Triangle conveyer belt |
B1100*1 |
