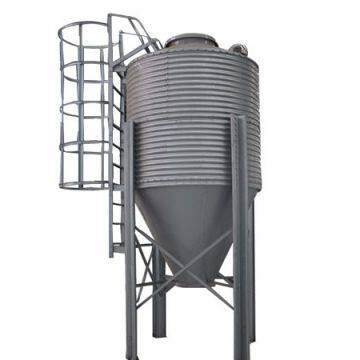

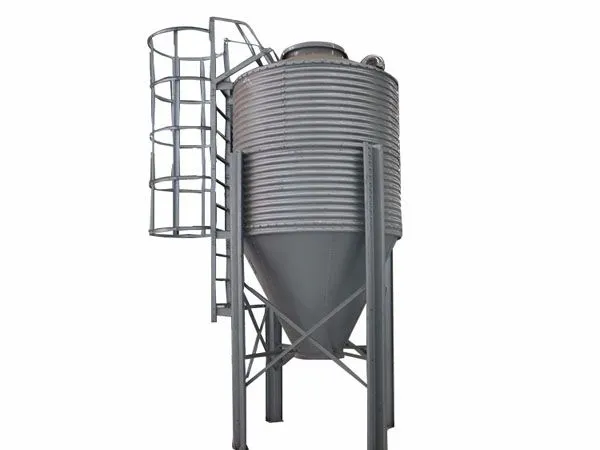

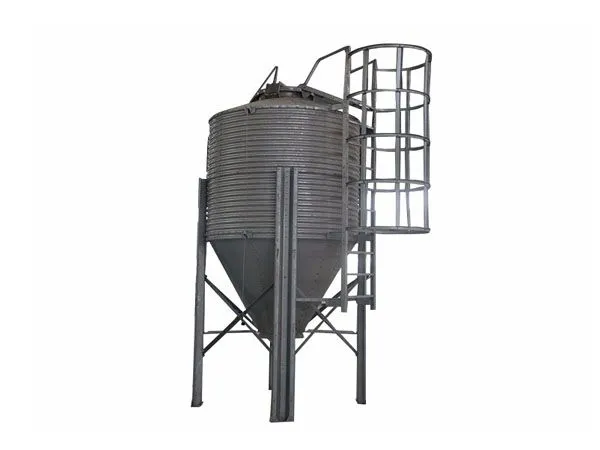

Help CenterPoultry Feed Silo and Hopper for Automatic Poultry Farm
Related Products
-
Broiler Chicken Feeding System and Chicken Farm EquipmentUS$ 15 - 40MOQ: 100 Meters -
Wholesale Chick Farm House Manual Plastic Poultry FeederUS$ 1.7 - 2.2MOQ: 100 Pieces
-
Automatic Water Nipple Drinkers Chicken Farming ToolsUS$ 2 - 4MOQ: 1000 Pieces
-
Automatic Poultry Farm Equipment Chicken Drinking System for Broiler FarmUS$ 4.5 - 15MOQ: 100 Meters
-
Honeycomb Water Paper Air Evaporative Cooling Pad for Poultry Farm HousesUS$ 10 - 40MOQ: 30 Square Meters
Automatic Poultry Feeder for Broiler
Description
Silo body
constructed with hot-galvanized corrugated steel plate;zn-coat thickness≥275g per square meter.
Silo body is 1250mm wide,fit for different thickness requirements(1.0-1.5mm)
All steel plate joints are fixed by Grade8.8,M10 bolt and seal gums,ensuring no leaking seams,security and long operating life
Transparent viewing window
Transparent viewing window is good for observing feed delivery condition in the silo clearly.
Use high strength plastic
fastened strongly and sealed.
Non-friable more secure and durable
Automatic torsion spring controlling
With our special automatic torsion spring controlling and steel wire rope design,
customers can easily open and close stainless steelroof cover on the ground.
Optional anti-block ball is available as per your requirement to convey feed flow more smoothly.
Transparent feed opening
Use high strength plastic
fastened strongly and sealed
Non-friable more secure and durable
Introduction and Advantages:
1. The hopper bottom steel silo series is specially designed by senior engineers in our company, with high-quality galvanizing board.
2. Hopper angles can be 45° and 60°,among which 60° conical bottom is usually used to store larger pellet and powder materials with high viscosity.
3. All BODA silos are precision engineered from high strength, 80mm x 14mm low profile corrugated steel plate, galvanized to 275 g/m2 (or optional 450 g/m2).
4. Lower basic cost with lightweight, low request for foundation, low consumption of steel.
5. High degree of standardization. We can produce the standard components which can be installed on-the-spot. Simple, easy and efficient to install within a short amount of time due to superior component design which are connected by standard bolts.
6. Easy to maintain. As the parts of the silo are connected by standard bolts, so it is easy to remove or repair it.
7. The life cycle of the silos can come up to 30-50 years long. The products are designed comply with the national standard of GB50322-2001.
WZH feed tower chicken farm cosists of silo body sheets, silo lid, collar, hopper sheets, roof panels, silo legs, ladder system. All parts are manufactured to engineering design specifications and quality checked to ensure hassle-free assembly and use
Features of Feed silo
As a professional manufacturer of storage equipment, we have developed, designed and manufactured assembly steel silos
The standard ladder and fence is safe and reliable.
The feed bin is fastened strongly and sealed.
Our feed bin made by high quality galvanized steel sheet.
Bin lever indicators at bottom and roof
Parameter:
| Model | Diameter(CM) | Tonnage(T) | Height(M) | Capacity(m³) | NO. of stents |
| HR18301 | 183 | 2.7 | 3.8 | 4.1 | 4 |
| HR18302 | 183 | 4.2 | 4.7 | 6.5 | 4 |
| HR18303 | 183 | 5.8 | 5.6 | 8.9 | 4 |
| HR18304 | 183 | 7.3 | 6.5 | 11.3 | 4 |
| HR27501 | 275 | 7.5 | 4.9 | 11.6 | 6 |
| HR27502 | 275 | 11 | 5.8 | 17 | 6 |
| HR27503 | 275 | 14 | 6.7 | 22.4 | 6 |
| HR27504 | 275 | 18 | 7.6 | 27.8 | 6 |
| HR36701 | 367 | 15 | 5.8 | 23.5 | 8 |
| HR36702 | 367 | 21.5 | 6.7 | 33 | 8 |
| HR36703 | 367 | 27.5 | 7.6 | 42.5 | 8 |
| HR36704 | 367 | 33.5 | 8.5 | 52 | 8 |
