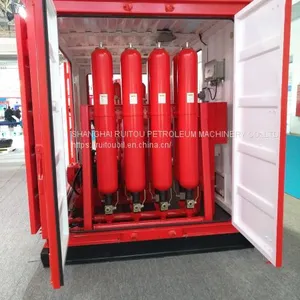

API 16 D Pneumatic Control Systems for Surface-Mounted BOP Stacks Structure
US$ Nagotiation - Nagotiation
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BOP Control System
Place of Origin:
China
Model Number:
RT-BOP control System
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai , Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API 16A BOP/Blowout Preventer/ Sucker Rod BopUS$ Nagotiation - NagotiationMOQ: 1 Set -
API 16A /Blowout Preventer/ Double Ram BOP/Mini Type Double Ram BOPUS$ Nagotiation - NagotiationMOQ: 1 Set
-
API 16A /Blowout Preventer/ Double Ram BOP/Mini Type Double Ram BOPUS$ Nagotiation - NagotiationMOQ: 1 Set
-
API 16A /Blowout Preventer/ Double Ram BOP/Mini Type Double Ram BOPUS$ Nagotiation - NagotiationMOQ: 1 Set
-
Forging Type API 16A Well Driling 18-3/4US$ Nagotiation - NagotiationMOQ: 1 Set
Brand Name
BOP Control System
Place of Origin
China
Model Number
RT-BOP control System
Type
Other
Certification
API 6 A,16A ,16 C
Warranty
12 Months
Weight
Depend on Actual Weight
Dimension(L*W*H)
Depend on Actual Size
Condition
New
API 16D control system or control panel or control box for manifold or BOP stacks

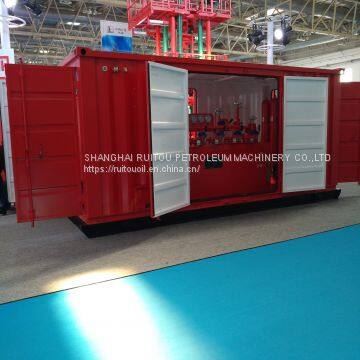

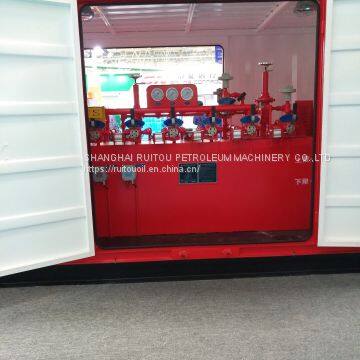

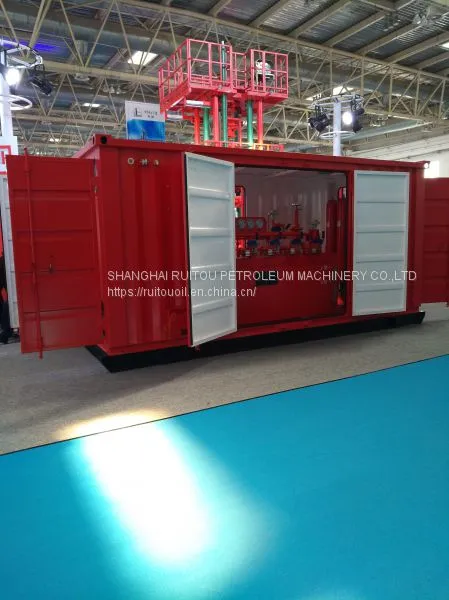

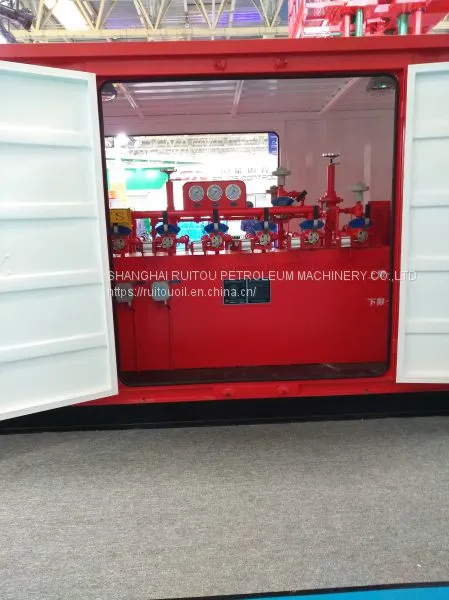

Bop Remote control system is special equipment, which is used to control BOP, hydraulic chock, kill system and diverter equipment, and indispensable equipment for blowout preventer during drilling or workover in petroleum and natural gas industry.

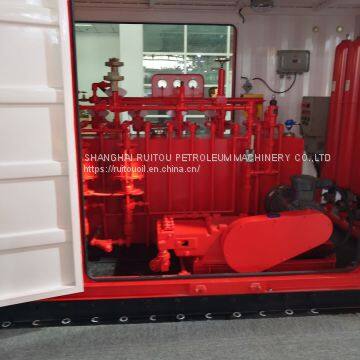

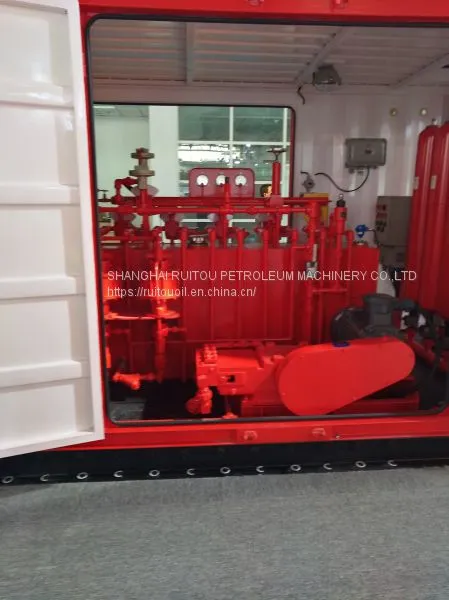

The function of the Remote control system for surface mounted BOP stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the Accumulator Unit will renew the hydraulic oil automatically, to keep the pressure in a certain high value.
| Type | Number of controlled objects | Accumulators sets | Volume |
Motor |
Flow volume of pump | |||||||
| Annular | Ram | Choke | Spare | Nominal |
Effective |
Alignment | Electric |
Pneumatic |
Manual |
|||
| FKQ1440-14 | 1 | 4 | 7 | 2 | 60×24 | 720 | Rear | 2300 | 18.5×2 | 46×2 | 60×4 | |
| FKQ1280-8 | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ960-8 | 1 | 3 | 3 | 1 | 60×16 | 480 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ840-8 | 1 | 3 | 3 | 1 | 60×14 | 420 | Side | 1650 | 18.5 | 46 | 60×2 | |
| FKQ1280-7B | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1600 | 18.5×2 | 46×2 | 60×2 | |
| FKQ800-7 | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7B | 1 | 3 | 2 | 1 | 80×10 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7C | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7D | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7E | 1 | 3 | 2 | 1 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | ||
| FKQ720-6 | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6C | 1 | 3 | 2 | 60×12 | 360 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6D | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6 | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6B | 1 | 3 | 2 | 80×8 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6C | 1 | 3 | 2 | 40×16 | 320 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6D | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6E | 1 | 3 | 2 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | |||
| FKQ480-5 | 1 | 3 | 1 | 40×12 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5B | 1 | 3 | 1 | 80×6 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5C | 1 | 3 | 1 | 40×12 | 200 | Rear | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5E | 1 | 3 | 1 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | |||
| FKQ320-4 | 1 | 2 | 1 | 40×8 | 160 | Side | 790 | 11 | 35 | 60×1 | ||
| FKQ320-4C | 1 | 2 | 1 | 40×8 | 160 | Rear | 790 | 11 | 35 | 60×1 | ||
| FKQ320-4E | 1 | 2 | 1 | 160 | Side | 790 | 11 | 35 | 60×1 | |||
| FKQ240-3C | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 35 | 60×1 | ||
| FK240-4 | 1 | 2 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK240-4E | 1 | 2 | 1 | 120 | Rear | 550 | 11 | 20 | 14/28 | |||
| FK240-3 | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK125-3 | 1 | 1 | 1 | 25×5 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | ||
| FK125-3E | 1 | 1 | 1 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | |||
| FK125-2 | 1 | 1 | 25×5 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | |||
| FK125-2E | 1 | 1 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | ||||
