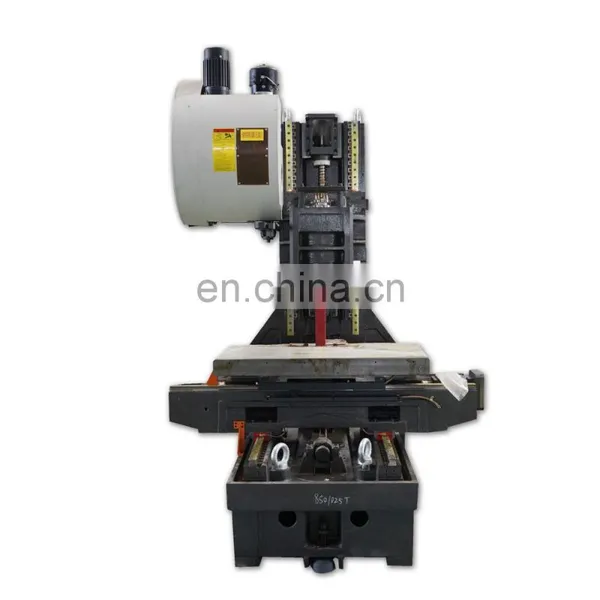

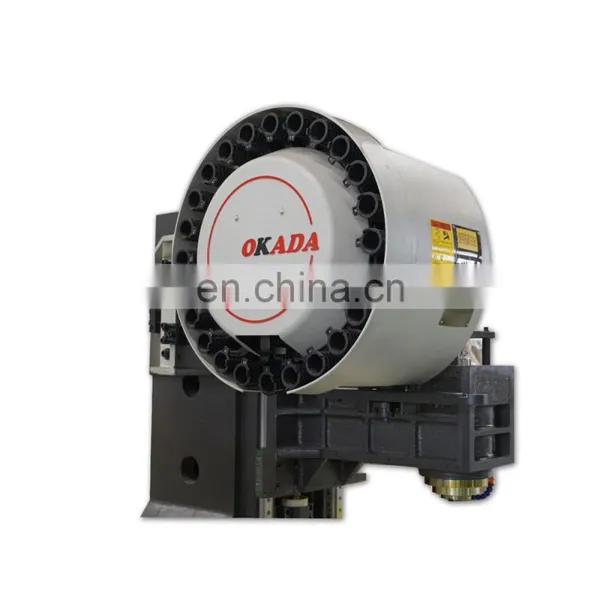

Taiwan Spindle ATC And CTS System Vertical CNC Milling Machine For Metal/Alloy/Steel Parts Machining

FOB Price

USD $22,800 - $39,600 / Set

1 Set(Min.Order)

Product Description

Iterm	VMC350L	VMC460L	VMC600L	VMC850L	VMC1060L	VMC1160L	VMC1270L	VMC1380L	VMC1580L
Table Size (mm)	690*230	800*300	800*360	1000*500	1200*600	1200*600	1360*700	1400*800	1700*800
Load Capacity (kg)	150	200	350	500	800	800	800	1000	1500
T-Slot (mm)	3-16*63	3-14*80	3-14*115	5-18*90	5-18*90	5-18*100	5-18*122	5-18*140	5-22*135
X Axis Travel (mm)	350	460	600	800	1000	1100	1200	1300	1500
Y Axis Travel (mm)	260	320	400	500	600	600	700	800	800
Z Axis Travel (mm)	350	460	500	500	600	600	600	700	700
Distance From Spindle Nose To Table (mm)	90-440	90-550	100-600	150-650	120-720	120-720	87-687	15-850	13-830
Distance From Spindle Center To Column Slide Way (mm)	294	395	430	550	650	650	785	855	810
Tool Shank	BT30	BT30/BT40	BT40	BT40	BT40	BT40	BT40/BT50	BT40/BT50	BT50/155
Spindle Speed (rpm)	10000	10000	10000	8000	8000	8000	6000/8000	6000/8000	6000
Spindle Motor Power (kw)	2.2	3.7	5.5	7.5	11	11	11~15	11/15	11~15
Max.Diameter Of Tool (mm)	φ30/φ80	φ80/φ120	φ120 /φ200	φ80/φ150	φ80/φ150	φ120	φ120	φ120	φ120
Max.Length Of Tool (mm)	120	200	350	250	300	300	200	200	400
Max.Weight Of Tool	3	6	8	8	8	8	8	8	15
X/Y/Z Axis Rapid Moving Speed (mm/min)	10000	10000	10000	48000	36000	36000	24000/ Z:18000	30000	16000/ Z:20000
Feed Rate (mm/min)	1-4000	1-4000	1-10000	1-10000	1-10000	1-10000	20-6000	1-10000	20-5000
Positioning Accuracy (mm)	0.02	±0.012	0.01	±0.008	0.01	0.01	0.01	0.01	0.012
Re-Positioning Accuracy (mm)	0.01/300	0.007	0.007	±0.002/300	0.003	0.005	0.005	0.005	0.006
Dimension (m)	1.521.31.8	1.851.81.9	2.22.12.2	2.62.22.55	32.52.9	3.22.53.2	3.32.83.2	3.43.13.61	4.53.23.6
Machine Weight (kg)	1500	2500	3500	5500	6500	7000	8000	12000	13000

Taiwan Spindle ATC And CTS System Vertical CNC Milling Machine For Metal/Alloy/Steel Parts Machining
