High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine

High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-1

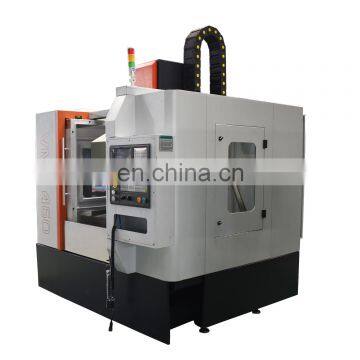

High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-2
High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-3

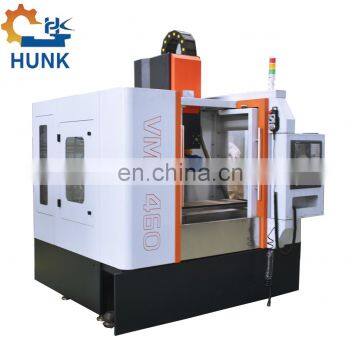

High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-4
High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-5
High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-6

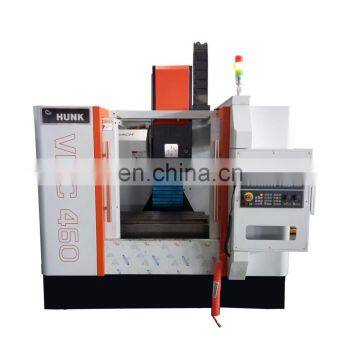

High Precision Mini CNC Mill Aluminum Machining Stainless Steel VMC460L Computer Controlled Milling Machine photo-7
US$ 21500.00 - 22000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Main feature
Technical parameter
Item
unit
VMC460
Table size
mm
800*300
Load capacity
kg
200
T slot
3-14*80
X axis travel
mm
460
Y axis travel
mm
320
Z axis travel
mm
460
Distance from spindle center to table
mm
90-550
Distance from spindle center to columnslide way
mm
395
Tool shank
BT30/BT40
Spindle speed
RPM
10000
Spindle motor power
KW
3.7
MAX.diameter of tool
mm
80/120
MAX,length of tool
mm
200
MAX.weight of tool
kg
6
X/Y-axis rapid moving speed
mm
20000
Z axis rapid moving speed
mm
20000
Feed rate
mm/min
1-4000
Positioning  accuracy
mm
0.012
Repeated positioning accuracy
mm
0.007
Out dimension
mm
1800*1750*2000
Weight
kg
1900

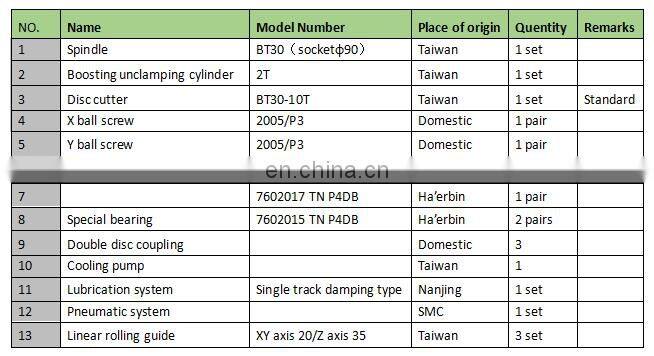

Main components
NO
ITEM
Model Number
Place of origin
Quentity
Remarks
1
Spindle
BT40(socketφ120)
Taiwan
1set
2
Boosting unclamping cylinder
3.5T
Xieqing (Wuxi)
1set
3
Bamboo hat type knife managine
BT40-16T
Taiwan
1set
Standard
4
Disc cutter
BT40-16T or 20T
Taiwan
1set
Optional
5
X ball screw
3210/P3
Domestic
1 pair
Taiwan Optional
6
Y ball screw
3210 /P3
Domestic
1 pair
Taiwan Optional
7
Z ball screw
3210/P3
Domestic
1 pair
Taiwan Optional
8
Special bearing
NSK or FAG
6 pairs
9
Double disc coupling
Domestic
3
10
Cooling pump
Taiwan
1
11
Lubrication system
Single track damping type
Nanjing
1 set
12
Pneumatic system
AirTAC
SMC
1 set
