High precision VMC machining VMC 350L personal 3d CNC milling machine cutters

standard configuration

1) 2.2kw servo motor, spindle speed 8000rpm, BT30

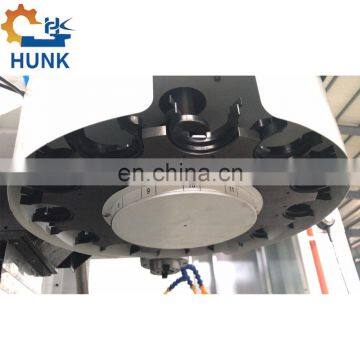

2) 12(standard) tools, Umbrella-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guide way,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

vertical machine center VMC350L

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

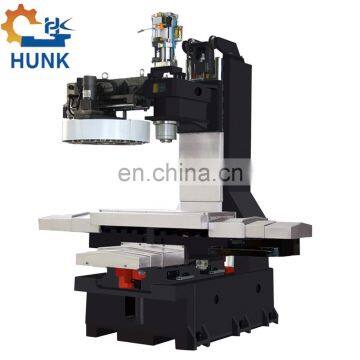

Machine construction

Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT300 cast iron; base is box type structure with symmetric compact and reasonable structure which ensures the basic parts of the high rigidity and bending resistance performance; the column is of A shape bridge span, together with bed inside grid reinforced, effectively ensure the rigidity and accuracy of the Z axis strong cutting force;

Guide way and ball screw

The guide rail of X, Z, Y axis are use Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools
