VMC1160L 4 axis CNC benchtop milling machine

FOB Price

USD $68,000 - $70,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

VMC machine

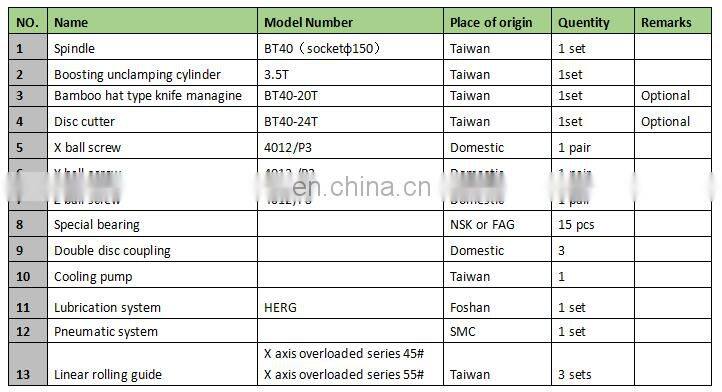

standard configuration:

1)11kw servo motor, spindle speed 8000rpm, BT40
2)24(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, belt driven,
4) HIWIN (Taiwan) ballscrew,
5) Rexroth (Germany) linear guideway,
6) ROYAL/ POSA/ KENTURN (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger

Optional configuration:

1)	No tool magazine
2)	20/24 tools Umbrella-type tool magazine
3)	Spindle speed 10000r
4)	Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, PMI roller type linear guideway
5)	Spindle speed 12000r (with oil cooler),spindle conneted to the drive motor directly, Rexroth roller type linear guideway
6)	4th axis ( bar type, made in China), center height 125mm, with tailstock
7)	4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock
8)	4th axis (bridge type, GSA Taiwan) CNC-170R/200R/250R
9)	5th axis

Technical parameter

Item	unit	VMC850L	VMC1060L	VMC1160L
Table size	mm	1000*500	1200*600	1200*600
Load capacity	kg	500	800	800
T slot		5-18*90	5-18*90	5-18*100
X axis travel	mm	800	1000	1100
Y axis travel	mm	500	600	600
Z axis travel	mm	500	600	600
Distance from spindle center to table	mm	150-650	120-720120-720	100-600
Distance from spindle center to columnslide way	mm	550	650	650
Tool shank		BT40	BT40	BT40
Spindle speed	RPM	8000	8000	8000
Spindle motor power	KW	7.5	11	11
MAX.diameter of tool	mm	80/150	80/150	120
MAX,length of tool	mm	250	300	200
MAX.weight of tool	kg	8	8	8
X/Y-axis rapid moving speed	mm	48000	36000	36000
Z axis rapid moving speed	mm	48000	36000	36000
Feed rate	mm/min	1-10000	1-10000	1-10000
Positioning accuracy	mm	0.008	0.01	0.01
Repeated positioning accuracy	mm	0.002/300	0.003	0.005
Out dimension	mm	270024002160	300025002900	320025003200
Weight	kg	5500	1900	6800

Main feature

Machine construction

Base, sliding block, working bench, vertical column , spindle box and other main basic parts adopt HT300 cast iron; base is box type structure with symmetric compact and reasonable structure which ensures the basic parts of the high rigidity and bending resistance performance; the column is of A shape bridge span, together with bed inside grid reinforced, effectively ensure the rigidity and accuracy of the Z axis strong cutting force;

Guide way and ball screw

The guide rail of X, Z, Y axis are use Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on. Using automatic forced lubrication, it can improve the accuracy of machine tools

ATC

he machine matched with 24 disc type cutter (standard) or 16BT40-20 carousel style tool bank (optional) supplied by Taiwan professional manufacturers. The tool changes accurately , using short time and high efficiency. After a million times running test, it meets reliability requirements; matched with damping structure, it can reduce the impact when move to ensure the service life of the tools;

Spindle

The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm.Spindle is of central blowing structure. When the spindle releases tool , the high pressure gas is used to clean the main shaft, so ensure the precision and service life of the tool .

Packing & Delivery

Our Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use cnc lathe machine.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver CNC lathe machine on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
