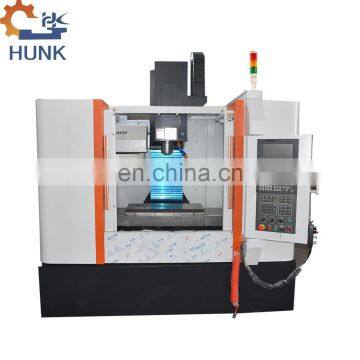

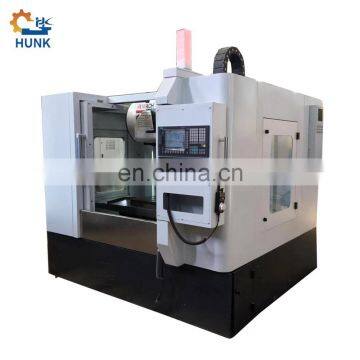

Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame

Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-1
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-2
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-3
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-4
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-5
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-6
Vmc Machine Price VMC600L China CNC Vertical Milling Machine Frame photo-7
US$ 25,500 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Product Description

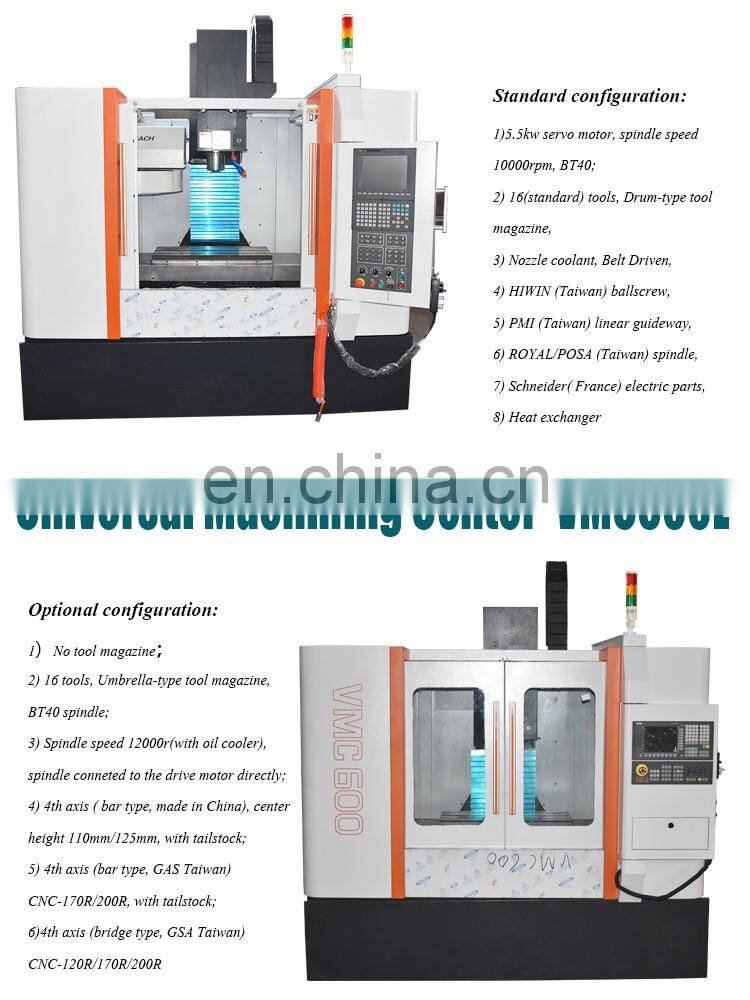

Detailed Images
Technical parameter
Item
Unit
VMC600L
Table size
mm
800*360
Load capacity
kgs
350
T slot
3-14*115
X axis travel
mm
600
Y axis travel
mm
400
Z axis travel
mm
500
Distance from spindle nose to Table
mm
100-600
Distance spindle center to column slide way
mm
430
Tool shank
BT40
Spindle speed
rpm
8000
Spindle motor power
kw
5.5
Max.Diameter of tool
mm
120*200
Max.length of tool
mm
350
Max.weight of tool
kgs
6
X/Y axis Rapid moving speed
mm
10000
Z axis Rapid moving speed
mm
10000
Feed Rate
mm/min
1-10000
Positioning accuracy
mm
0.01
Repeated positioning accuracy
mm
0.007
Out dimension
mm
2200*2100*2200
N.W
kg
3500
Packing & Delivery
Our Service

1.24 hours on Internet and Telephone, free instruction and problem solving.

2. Free training how to use cnc lathe machine.

3. User-friendly English manual or operating video for machine using and maintaining.

4. on-the-spot training and installation can be met if required.

5. We always deliver CNC lathe machine on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers' requirement.
