Description:

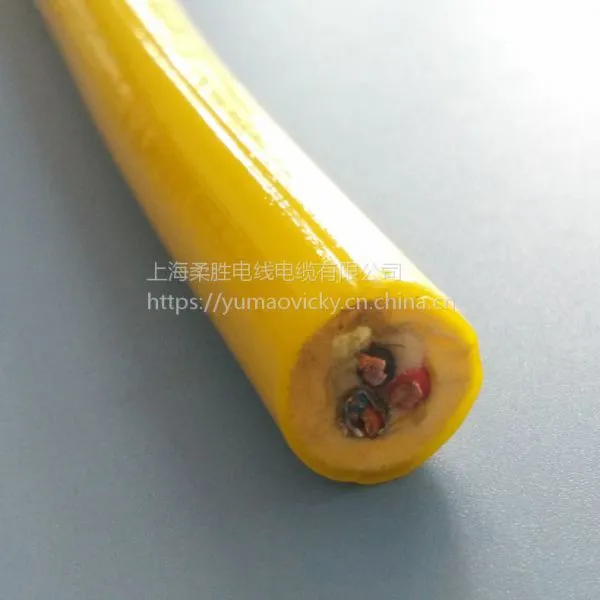

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
Application:
The flexible shielded robot cable with highly torsion and bending resistance are mainly used in industrious sites, indoor and outdoor applications, robots, transmission systems and spindle drives. It also can be used in these places (high frequency and continuous motion back and forth, irregular torsion movement
with bend and irregularly highly speed complex motion). Such as multi-axis articulated robot power
supply systems and control systems.
Features:
Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It has good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
Mechanical:
Braided kevlar strength member (1000 Ibs)
Standard length 500 meters
Sheath material: PVC
Diameter: 0.55” (customization available)
500Ibs(22.7kg) per 500 feet
Electrical:
Conductor: 75 ohm coax, 24awg, 18awg, 22awg
300V rated conductors
Options:
Cable assembly for all cameras and lights
Cable assembly for ROV
