Taiwan Technical Metal Parts Turning Cnc Lathe Machine Price
- 200 Unit / Units per Month
- Qingdao Port China
- T/T Credit Card
-
CK6140 bench top precision cnc lathe milling machine tool turret
-
bed type machine shop lathe milling machine (CK6150)
-
Swiss Type Small Cnc Lathe with Automatic Bar Feeder
-
CK6163 automatic horizontal cnc mill drill lathe machine
-
Small Cnc Turning Lathe Machine with 220v Single Phase
-
Small Low Cost 2 Axis Cnc Controller Lathe Machine for Sale
Product Description

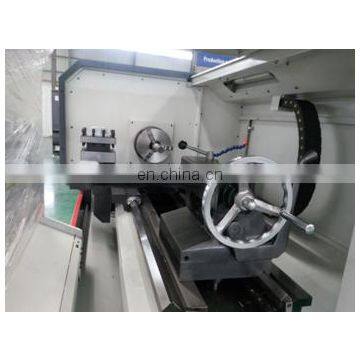

Taiwan Technical Metal Parts Turning Cnc Lathe Machine Price
This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the sliding (hard) rail. The structure and dimension of axis are compact and reasonable. Spindle is gear transmission and variable- frequency variable-speed driven by variable frequency motor through belt which can clamping various plate, shaft, and component all at once. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
CK6140 Universal High Precision Tool Turret CNC Lathe Machine for Sale

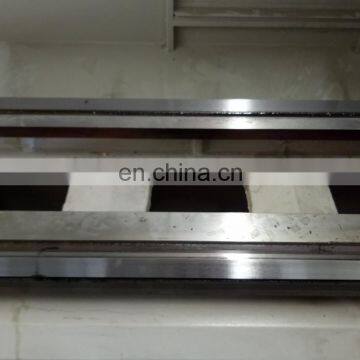

1)The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT250 cast iron. The lathe feet are the structure of box type, The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts, which guarantees the rigidity and precision of Z axis effectively when it is cutting. The castings adopt the type of resin sand molding and have been processed by the aging treatment, The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.
2)The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.
3)The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe.
4)The design of spindle box is high gear and low speed rotation, which greatly increased the torque in the process of chipping. It uses spindle unit which is high speed, high precision, and high rigidity. The bearing capacity of axial and radial is very strong, the top speed can reach to 2000 RPM.
5)The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail. It also ensures the accuracy of drive and motion and machine service life;
6)The outer protective device of the whole lathe is of the full protective structure. It is easy to operate, safe and reliable, beautiful and generous.
7)It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating conditions.
8)The operating system of the lathe adopts the principle of human body engineering so the operation is very convenient
Standard configuration
1. Full enclosed cover
2. One piece body structure
3. 4-station electric tool post
4. Automatic Lubrication
5. NSK spindle bearing of Japan
6. Manual chuck and tail stock
Optional configuration
1.CNC controller : SIEMENS/FANUC/KND/MITSUBISHI/SYNTEC
2.Hydraulic chuck and tailstock
3.Electric 6/8 station turret
With automatic bar feeder, convenient to operate and work more faster.
1. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing.
2. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
Packing Details : Packing by woodenbox or depend on request
Delivery Details : 7-45 days
It was set up by the former Jinan Machine tools factory employees. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.
“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
