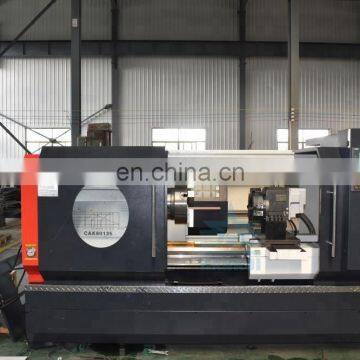

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool photo-2

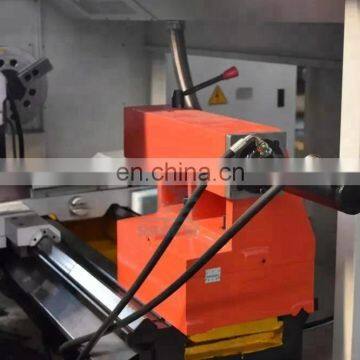

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool photo-3

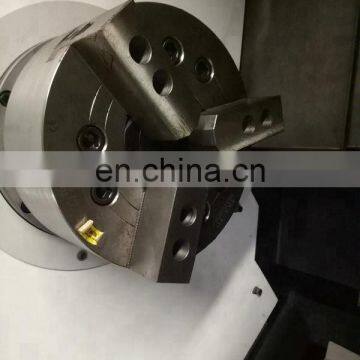

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool photo-4

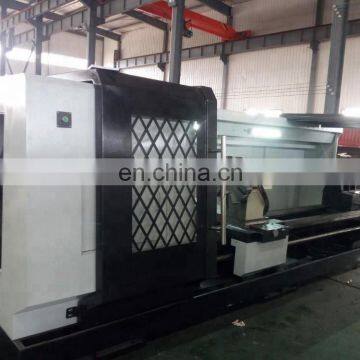

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool photo-5

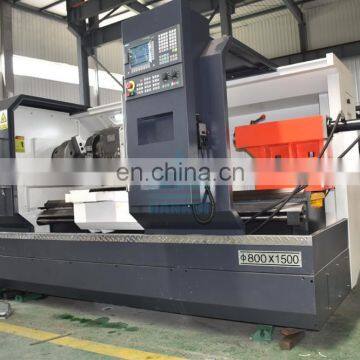

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool photo-6
US$ 10,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

China New Flat Bed Cnc Metal Grinding Lathe Machine Tool CKNC6180

1. This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo.

2. All the two axis are the sliding (hard) rail.

3. The structure and dimension of axis are compact and reasonable.

4. Spindle is gear transmission and fvariable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once.

Configuration

Standard configuration

1. Full enclosed cover
2. One piece body structure
3. 4-station electric tool post
4. Automatic Lubrication
5. NSK spindle bearing of Japan
6. Manual chuck and tail stock

Optional configuration

1.CNC controller : SIEMENS/FANUC/KND/MITSUBISHI/SYNTEC
2.Hydraulic chuck and tailstock
3.Electric 6/8 station turret

With automatic bar feeder, convenient to operate and work more faster.

Detailed Images
Technical Parameter
Parameter
Unit
CKNC6163
CKNC6180
CKNC61100
CKNC61125
Max. swing over bed
mm
630
800
1000
1250
Max. swing over slide
mm
350
480
600
850
Max. processing length
mm
1500
1500/3000/6000
1500/3000/6000
1500/3000/6000
Guideway width of bed
mm
550
550
660
660
X axis travel
mm
400
400
520
625
Z axis travel
mm
1000,1500,2000,3000
1500,2000,3000,4000
1500,2000,3000
1500,2000,3000
X/Z axis lead screw
m/min
4/7
4/7
4/5
4/5
X/Z axis rapid speed
mm
0.025/0.03
0.025/0.03
0.025/0.03
0.025/0.03
X/Z positioning precision
mm
0.01/0.015
0.01/0.015
0.01/0.015
0.01/0.015
X/Z Repositioning precision
IT6-IT7
IT6-IT7
IT6-IT7
IT6-IT7
Processing precision
0.01
0.01
0.01
0.01
Surface roughness
Ra1.6
Ra1.6
Ra1.6
Ra1.6
Spindle speed range
Three steps frequency, 40-125, 110-350, 290-950
Three steps frequency, 40-125, 110-350, 290-950
Three steps frequency, 15-500
Three steps frequency, 15-500
Spindle head type
C11
C11
C11
C11
Dia. of spindle Thru-Hole
mm
105
105
130
130
Spindle hole tapper
mm
1:20(metric system)120
1:20(metric system)120
1:20(metric system)140
1:20(metric system)  140
Chuck
mm
320(12")/optional 400,500
400(16")
500(20")
500(20")
Spindle motor power
kw
11
11/15
15
15
Tool holder type
Vertical 4 stations ( optional: horizontal 6 stations)
Turning tool size
mm
30*30
30*30
35*35
35*35
Tailstock sleeve travel
mm
250
250
250
250
Tailstock sleeve dia.
mm
100
100
100
100
Tailstock sleeve taper
mm
Morse 5
Morse 5
Morse 6
Morse 6
Controller
Siemens (standard configuration), Fanuc, Syntec, KND, GSK
N.w
kg
3600
3900
600 8500 13500
Dimension
m
3.7*1.5*1.6
3.7*1.5*1.6
4.2*1.92*1.8(1.5m)
4.75*1.92*1.8(2m)
5.75*1.92*1.8(3m)
Packing & Delivery
Our Company
Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
