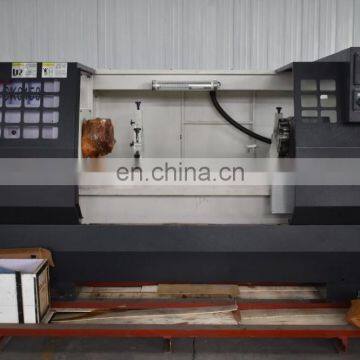

Mini CNC Metal Lathe Machinery Used For Central Parts Machine

FOB Price

USD $12,800 - $27,500 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product Application

Metal parts processing,threading machining, disc parts and bar type parts producing and processing and other related metal and aluminum /steel parts production and making.

Main Products Type Of HUNK
CNC LATHE	Slant Bed CNC Lathe	Linear guideway
	Flat Bed CNC Lathe	Rail way
	Vertical CNC Lathe	Linear guideway
MACHINING CENTER	GMC-Gantry CNC Machining Center	Roller type linear guideway
	VMC-Vertical CNC Machining Center	Linear way
	HMC Horizontal CNC Machining Center	Linear way

Flat Bed CNC Lathe

Parameter	Unite	CKNC6136	CKNC6136A	CK6140	CK6150
Max. swing over bed	mm	360	360	400	500
Max swing over slide	mm	200	200	230	300
Max processing lenth	mm	750	750	1000	1000/1500/2000
Guideway width of bed	mm	280	350	350	390
X axis travel	mm	210	210	220	260
Z axis travel	mm	750	750	1000	1000/1500/2000
X/Z rapid speed	m/min	6/8
X/Z position precision	mm	0.02/0.03
X/Z reposition precision	mm	0.012/0.016
Ellipticity	0.01
Surface Roughness	RA≤1.6
Dia. of spindle through hole	mm	52	56	66	82
Spindle motor power	kw	5.5	5.5	5.5	7.5 (three step frequency)
Tool holder type	vertical 4 stations(horizontal 6 stations)
Spindle hole tapper	mm	MT6	MT6	MT6	105mm, 1:20
Chuck	mm	200	200	200	250
Turning tool size	mm	25*25
Controller	SIEMENS/ FANUC/SYNTEC/KND/GSK
Gross Weight	kg	2000	2300	2500	2600
Dimension	m	2.11.11.7	1.91.11.7	2.51.71.7	2.61.21.7

Detailed Images

Machine Parts

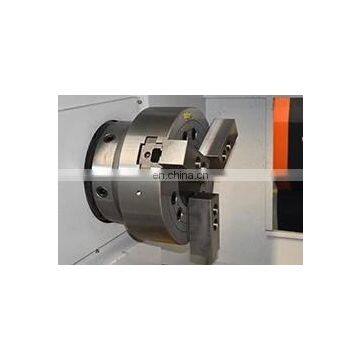

Name: Chucks

Brand: China

Original: China

standard configuration is 3/4 manual self centering chucks

And hydraulic chucks for option

Main Features

Name: Tool turret
Original: China
Standard : 4 station electric tool turret

Option: 6/8 station tool turret

8 station hydraulic tool turret

Machine Parts

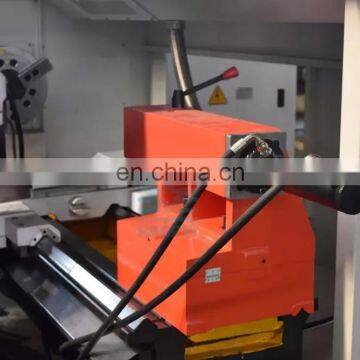

Name: Tailstock
Original: China
Standard : manual operate tailstock

Optional: hydraulic and electric moving tailstock

Main Features

Name: Casting body
Original: China &Taiwan

High hardness rail way and large ball screw

Also can be customized as client's detailed requirements

Packing & Delivery

Inner use protective material to make the packages

Outer use wooden box and steel frame to make the immobilization

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Technology support.

* View our Factory.

* Other necessary services

* Certificates showing and supply as requirements

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 12 months warranty for whole set machine and all life consulting services
