CK6140 Mitsubishi 70 Cnc Turning Lathe Machine with Automatic Bar Feeder and Hand Wheel

FOB Price

USD $11,000 - $18,000 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port Qingdao Port China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

CK6140 Mitsubishi 70 Cnc Turning Lathe Machine with Automatic Bar Feeder and Hand Wheel

1. This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo.

2. All the two axis are the sliding (hard) rail.

3. The structure and dimension of axis are compact and reasonable.

4. Spindle is gear transmission and fvariable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once.

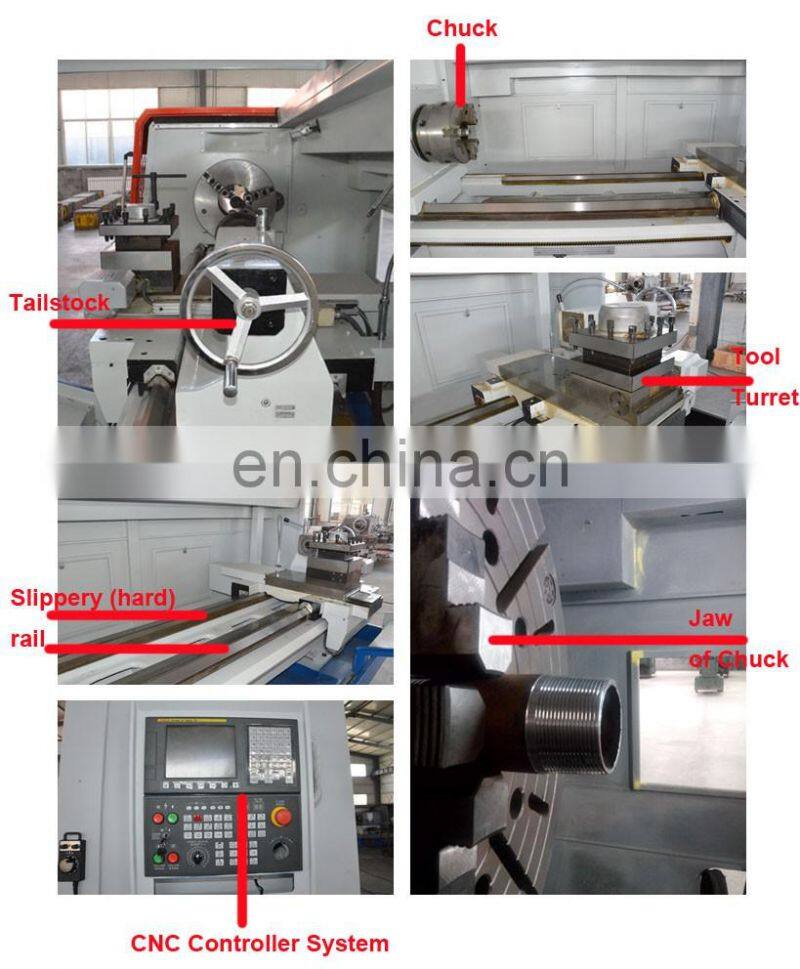

Detailed Images

Technical Parameter

Parameter	Unite	CKNC6136	CKNC6136A	CK6140	CK6150
Max. swing over bed	mm	360	360	400	500
Max swing over slide	mm	200	200	230	300
Max processing lenth	mm	750	750	1000	1000/1500/2000
Guideway width of bed	mm	280	350	350	390
X axis travel	mm	210	210	220	260
Z axis travel	mm	750	750	1000	1000/1500/2000
X/Z rapid speed	m/min	6/8
X/Z position precision	mm	0.02/0.03
X/Z reposition precision	mm	0.012/0.016
Ellipticity	0.01
Surface Roughness	RA≤1.6
Dia. of spindle through hole	mm	52	56	66	82
Spindle motor power	kw	5.5	5.5	5.5	7.5 (three step frequency)
Tool holder type	vertical 4 stations(horizontal 6 stations)
Spindle hole tapper	mm	MT6	MT6	MT6	105mm, 1:20
Chuck	mm	200	200	200	250
Turning tool size	mm	25*25
Controller	SIEMENS/ FANUC/SYNTEC/KND/GSK
Gross Weight	kg	2000	2300	2500	2600
Dimension	m	2.11.11.7	1.91.11.7	2.51.71.7	2.61.21.7

Usage & Application

1. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing.

2. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

Packing & Delivery

RFQ:

Q1. How can I get a quotation of the high precision cnc lathe machine?
A. Leave us message with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.

Q4. How about your price?
A. Send me details about what you need, you will get the best price. The price is competitive over the world.

Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 13 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Hunk sales representative for details.

Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
