Factory Direct Sales Cnc Lathe Machines With Taiwan Linear Guide

Universal Mecanico Factory Direct Sales Cnc Lathe Machines with Taiwan Linear Guide

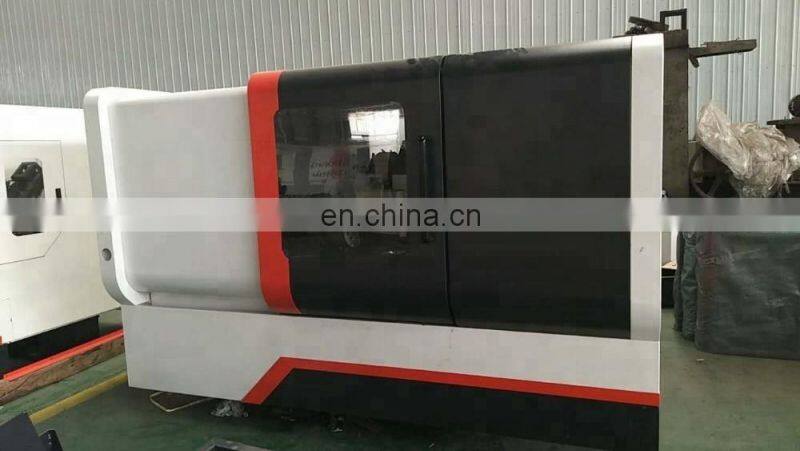

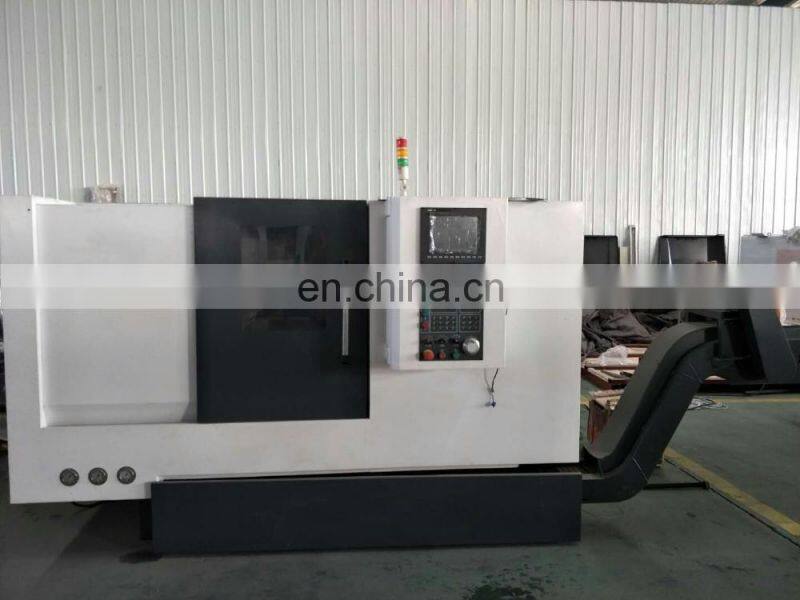

The machine is applicable to automobile,motorcycle,electronics,aerospace,millitary industry,oill and other industries,could turn the conical surface,circular arc surface,end face of the rotary parts and could turn the various metric and inch threads,etc,with higher efficiency in bulk and high precision automatic processing.The machine adopts 45 degrees highest rigid integrated bed,high precision spindle unit,Taiwan linear guide way,this ensures the machine higher rigidity,higher precision and higher speed.Spindle center close to the operator makes loading and unloading workpieces more convenient.

1)The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

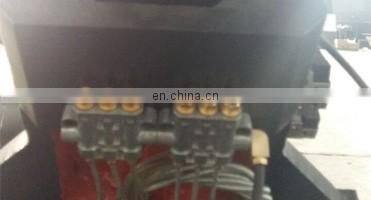

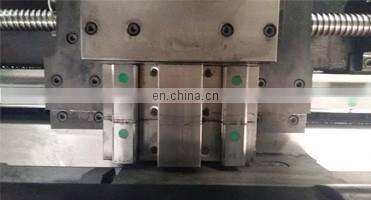

The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.

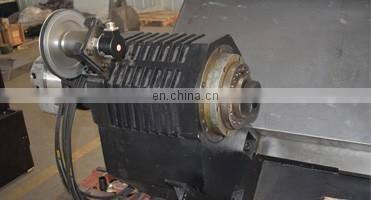

The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
