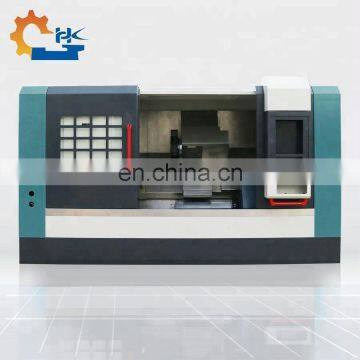

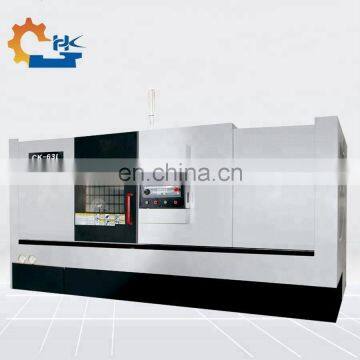

New Universal Lathes Cnc Lathe Machine With Imported Turret

1)The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics.

2)The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly .

3)The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle. In terms of lubrication, it adopts the Germany special lubricating oil of bearing, which greatly reduces the thermal deformation of spindle unit and improves the thermal stability and accuracy.

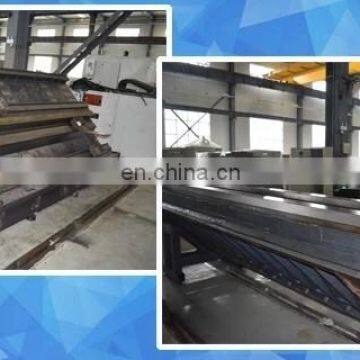

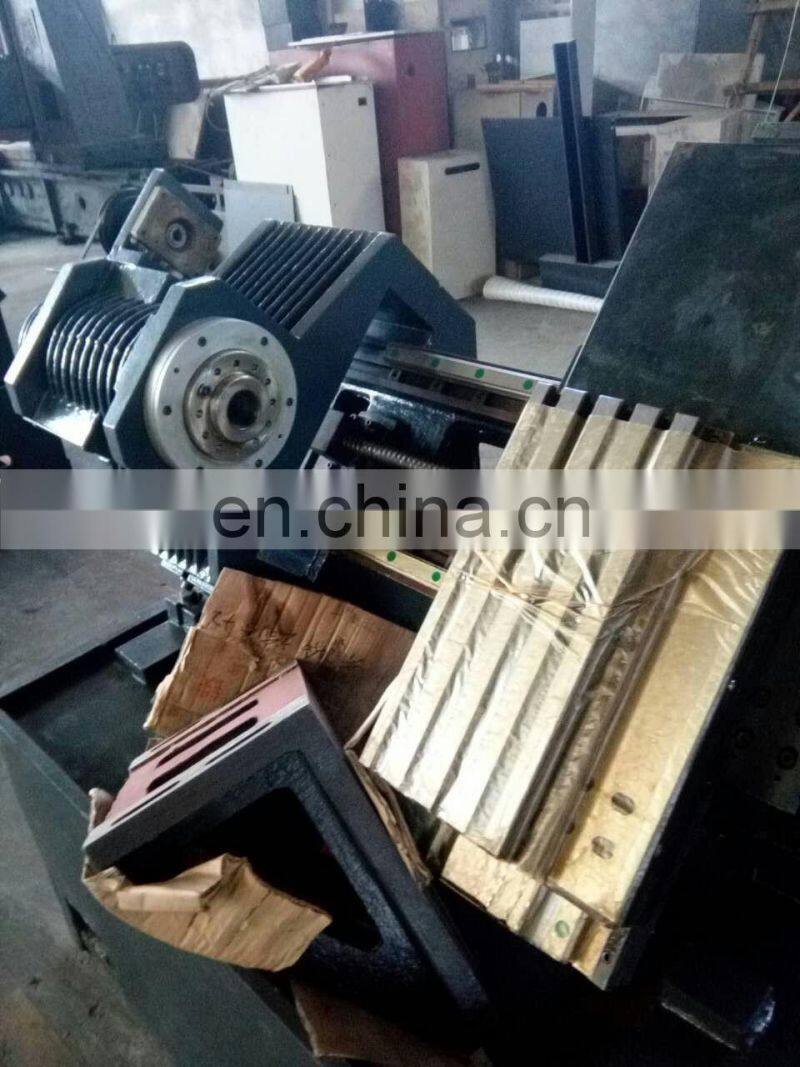

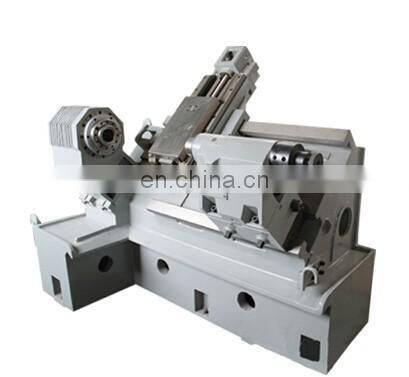

Name: Casting body

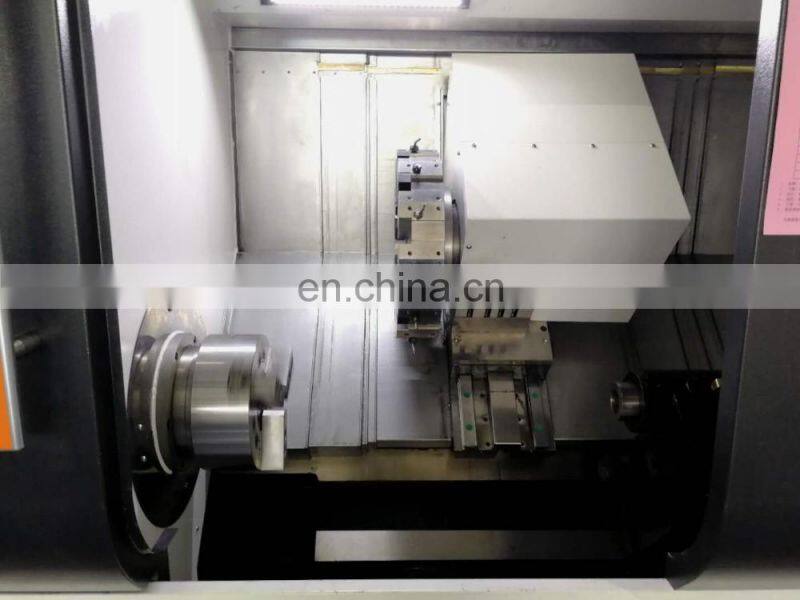

Name: Chuck and Inner cover

Brand: China

Original: China

3 / 4 jaw hydraulic chucks,economize on manpower and inner cover used to protect the lathe bed.

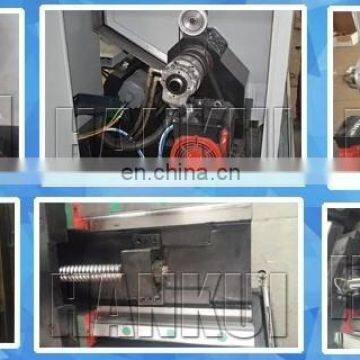

Name: Spindle hole and linear guide way and ball screw

Brand:Taiwan

Original: Taiwan,China

We adopt world famous Hiwin screw and PIM linear guideway made in Taiwan,China,which with highly accuracy and quality of the lathe. And the spindle hole also own good quality in rigid demand and other necessary demand field.
