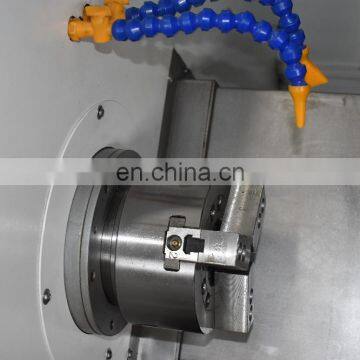

CK32L China Mini Integrated Cast Iron CNC Lathe Machines Prices photo-3

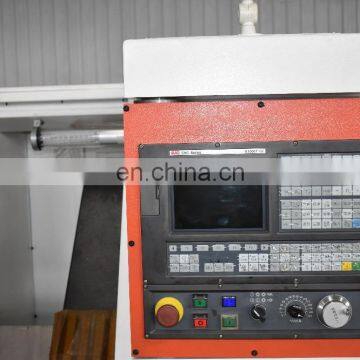

CK32L China Mini Integrated Cast Iron CNC Lathe Machines Prices photo-4

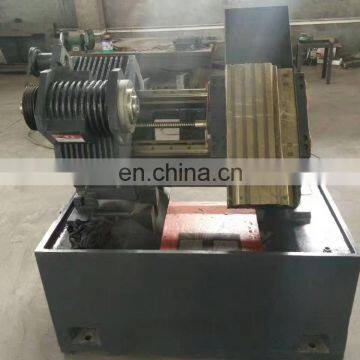

CK32L China Mini Integrated Cast Iron CNC Lathe Machines Prices photo-5

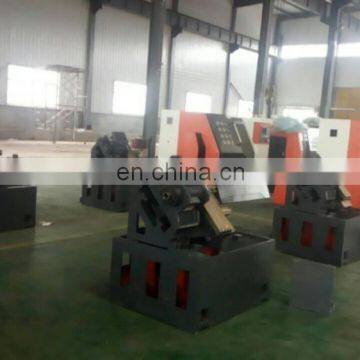

CK32L China Mini Integrated Cast Iron CNC Lathe Machines Prices photo-6
CK32L China Mini Integrated Cast Iron CNC Lathe Machines Prices photo-7
US$ 16,000 - 22,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Turn Mill CNC Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

CK32L Alibaba China Mini Integrated Cast Iron CNC Lathe Machines Prices


1. Integrated slant bed structure.
2. High Spindle speed at 4000r/min. First-class precision spindle bearing.
3. High precision ball screw Hiwin/Rexroth, fast feeding for high working efficiency.
4. All-closed stainless steel protection, strong liquid protection without any water leak.
5. Gang feed tool structure, quickly changing tool, and high repeated positioning accuracy.

Detailed Images

Standard Equipment:

CNC control system: Fanuc, KND, Mitsubishi, Syntec, GSK or Siemens as you select
Spindle bearing: Japan NSK or P4 class spindle bearings, Germany
Guideway: Taiwan Hiwin or Germany Rexroth precision linear guide
Leadscrew: Taiwan Hiwin precision ball screw
Spindle chuck: Hollow Hydraulic Chuck
Oil cylinder: hollow hydraulic cylinder
Turret: Precision gangtools
Hydraulic station: Made in Taiwan famous brand
Alarm lamp
Auto-lubricating system
Cooling system


Optional Accessories:
Servo Turret
10/12-Station Hydraulic Turret
Auto chip conveyor
Auto bar feeding

Technical Parameter
Specification
Unit
CK32
CK36
CK40
CK50
CK63
CK80
Max swing   over bed
mm
320
360
400
500
630
800
Max swing over   slide
mm
160
220
320
320
500
640
Max processing   length
mm
350
350
450
550
890
890
Max cutting         diameter
mm
200
254
360
420
630
800
Max bar dia.
mm
40
45
51
51
75
90
Spindle speed
rmp
4000
4000
3500
2500
2200
1500
Through hole dia.
mm
41
56
56
66/82
86
112
Chuck dia.
mm
160
200
200
250
320
380
Motor power
kw
3.7
3.7/5.5
3.7/5.5
5.5/7.5/11
11/15
18/22
Body structure
     30º integrated
    45º integrated
      30º integrated
X axis travel
mm
200
200
210
260
410
410
Z axis travel
mm
350
350
450
550
860
860
Tool size
mm
20*20
20*20
20*20
25*25
25*25
25*25
Tailstock sleeve    dia.
mm
52
52
52
75
150
150
Tailstock sleeve     travel
mm
60
60
60
100
150
150
Process precision
                                                                          IT6
Tailstock sleeve       taper
MT4
MT4
MT4
MT5
MT5
MT5
Main components
NO
ITEM
Model No.
Origin
Quantity
Note
1
The top
Domestic
1 set
2
X screw pair to the ball
2505
Taiwan
1 pair
3
Z screw pair to the ball
3210/P3
Taiwan
1 pair
4
Angular contact ball bearings
NSK
1 set
With screw
5
X, Z line rail
Taiwan
6
Angular contact ball bearings
NSK
2 sets
With screw
7
Double grinding coupling
Domestic
2
8
Cooling pump
Domestic
1
9
Lubrication system
Domestic
1 set
10
The hydraulic power tool turret of 8 stations
Taiwan
1 set
Our Company
Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.
Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.


“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
