Help Center3d CNC Lathe and Milling Machine Kit CK50L
Related Products
-
Desktop Small CNC Mill Lathe Machine Price CK36LUS$ 22,500 - 23,000MOQ: 1 Set -
CK40 Lathe Cnc Machine Mini With 5.5kw Servo MotorUS$ 12,000 - 12,999MOQ: 1 Set
-
China Cnc Lathe and Milling Machine(CK63)US$ 12,000 - 12,999MOQ: 1 Set
-
CK40L CNC Portable Lathe Machine PriceUS$ 10,900 - 21,900MOQ: 1 Set
-
Desktop 3d CNC Aluminum Milling Machine Cutters Cost CK50LUS$ 32,000 - 35,000MOQ: 1 Set
standard configuration:
1) 7.5 kw servo motor, max. spindle speed 3500 rpm, spindle taper A2-6, spindle hole Φ66 mm;
2) 8 station hydraulic tool turret, hollow 10" hydraulic chuck, with tail stock;
Optional configuration:
1) 8 station servo VDI(live tool) turret;
2) tool head,if more tool heads needed; 3) Servo 8 station tool turret; 4) 12 station hydraulic tool turret; 5) chip conveyor;

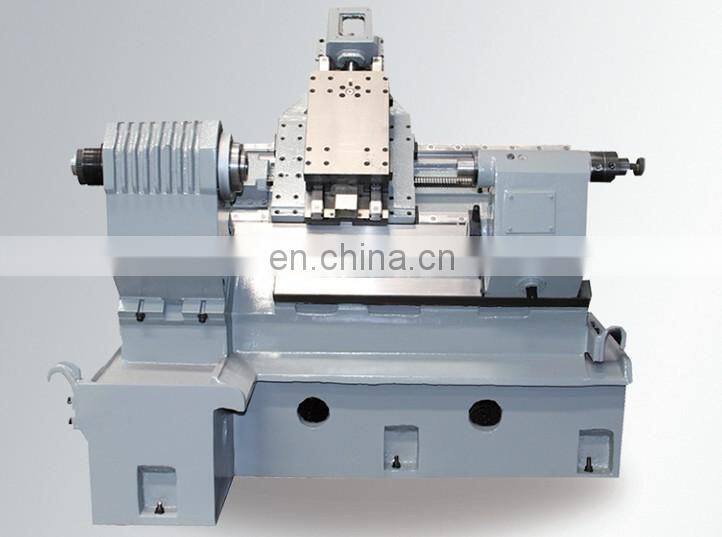

The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

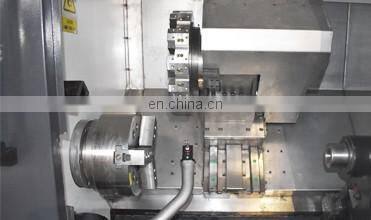

In-line tools
The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail.
Siemens 828D CNC boring metal lathe machine price CK50L
This product uses 45 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the sliding (hard) rail.
