Automatic CNC Wood Lathe CNC1503S Turning Machine

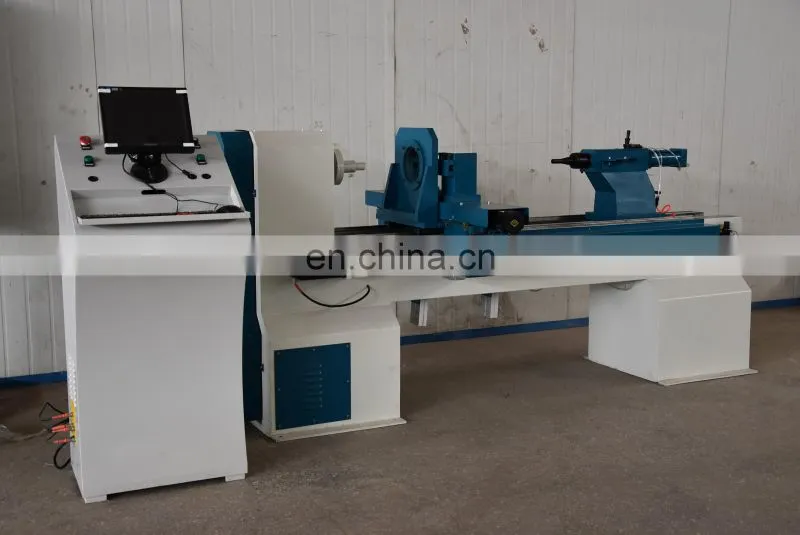

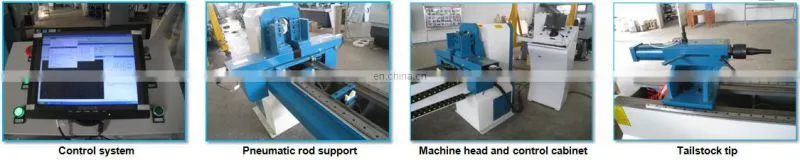

Automatic CNC Wood Lathe CNC1503S Turning Machine Appearance:
Automatic CNC Wood Lathe CNC1503S Turning Machine Description:
Automatic CNC Wood Lathe Turning Machine (also called Wood CNC Machine) are widely used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children’ s bed column, etc.
Automatic CNC Wood Lathe CNC1503S Turning Machine Technical parameter:
Item name |
unit |
parameter |
||
CNC1503S |
CNC1504S |
|||
Max process size |
mm |
Φ300×1500 |
Φ400×1500 |
|
Z axis max travel |
mm |
1500 |
||
X axis single direction max travel |
mm |
200 |
250 |
|
Main transmission form |
|
Independent spindle, frequency change speed |
||
Spindle speed range |
r/min |
0-3500 |
||
Feed bar speed |
mm/min |
3000 |
||
Chuck diameter |
mm |
Φ160 |
||
Motor power |
kw |
5.0 |
||
Electric power |
|
380V/50HZ |
||
Machine size(l*w*h) |
mm |
2700×900×1300 |
||
Machine net weight(Kg) |
kg |
1200 |
||
Automatic CNC Wood Lathe CNC1503S Turning Machine Features:
1. Horizontal flat bed structure
2. Spindle frequency step change speed
3. XZ axis use step drive
4. Machine bed guide is high precision linear guide
5. Precision ball screw, auto lubrication
6. Two positions turret, rough turning, finish turning, one time finished.
7.Controller system use mature CNC control, 12inch color screen,international standard cnc language G code, support for multiple software, support technical function extension
Automatic CNC Wood Lathe CNC1503S Turning Machine Usage:

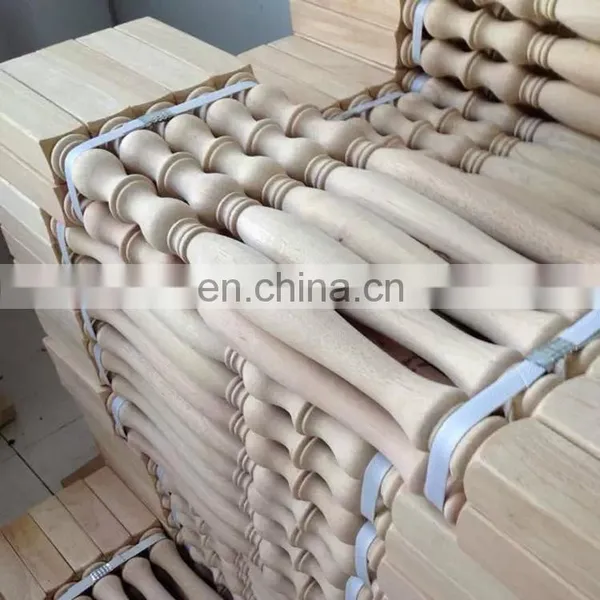

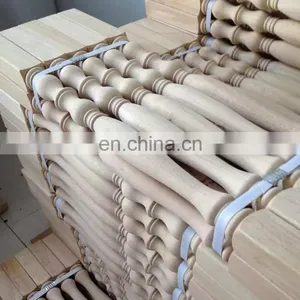

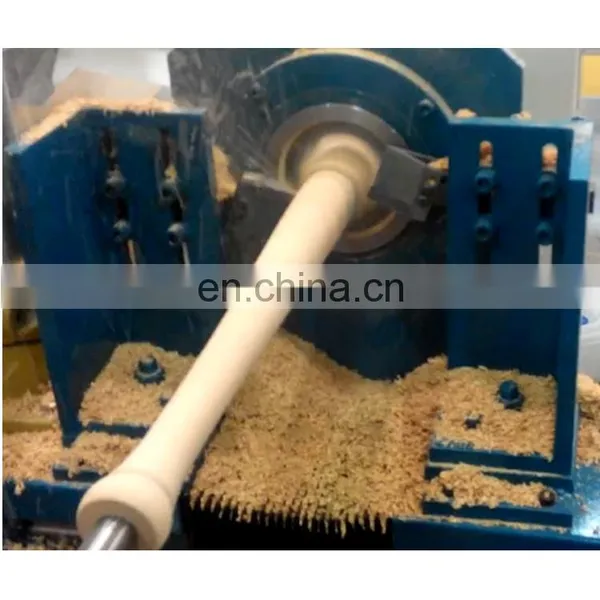

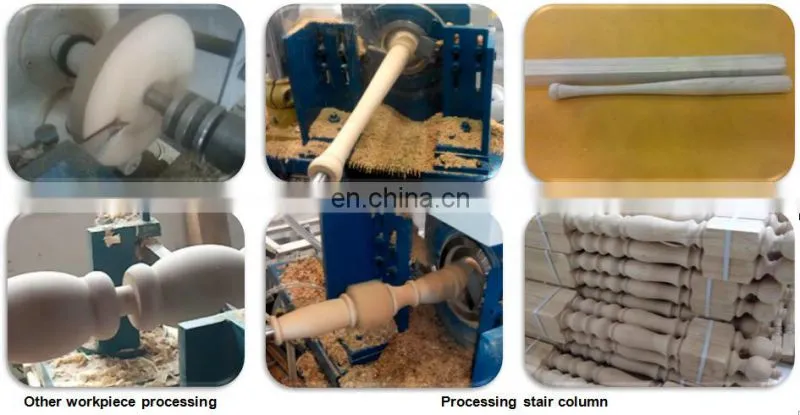

Processing: staircase column, bending round, vases, table legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator wood products or semi-finished wood products.
Automatic CNC Wood Lathe CNC1503S Turning Machine Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, the rotation center with the knife (5CM wooden, 6CM wooden);
4, pneumatic feeding, automatic centering;
5, pneumatic material thimble;
6, V-type front steel tools;
7, with controls easy to use software, the basic pattern software;
8. Random accompanied.
Automatic CNC Wood Lathe CNC1503S Turning Machine Select configuration:
1, φ160 four jaw chuck linkage;
2, engraving spindle and pull trough multifunction control section;
3, woodworking special vacuum cleaner;
4,220V constant power frequency spindle control;
5, universal swivel joints;

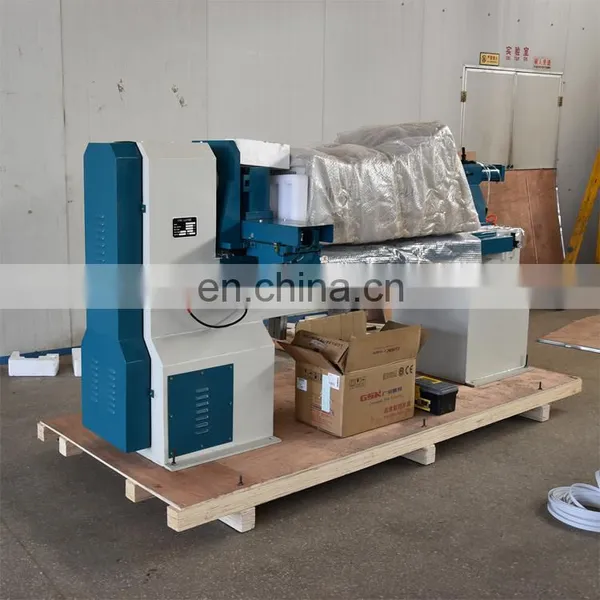

Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian Haishu Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathes, CNC milling machine, CNC machining center, CNC turn mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC machine products but also providing custom product design, fabrication and after sale services. Welcome contact us for detailed information.
