Multifunctional CNC Wood Turning Lathe CNC2504SA

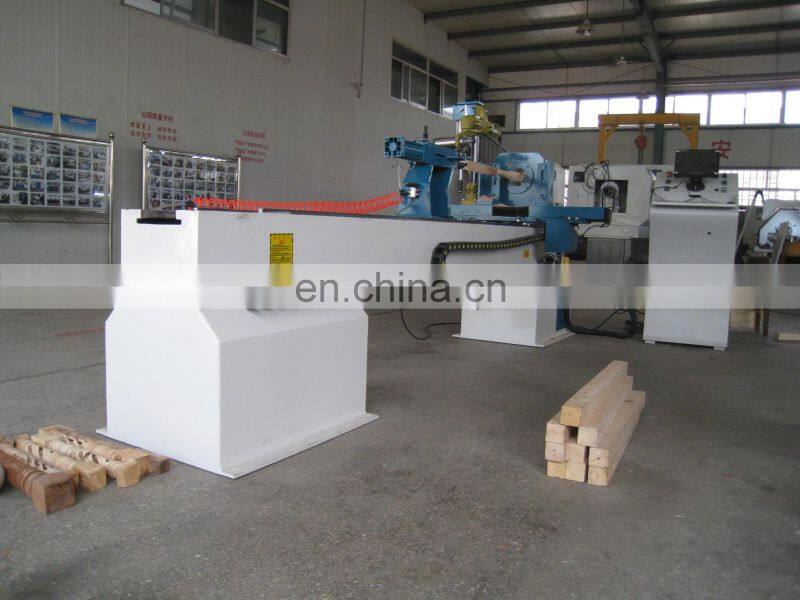

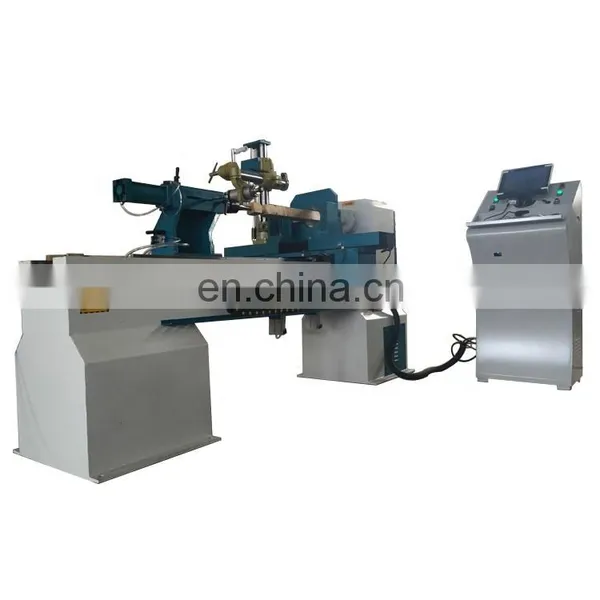

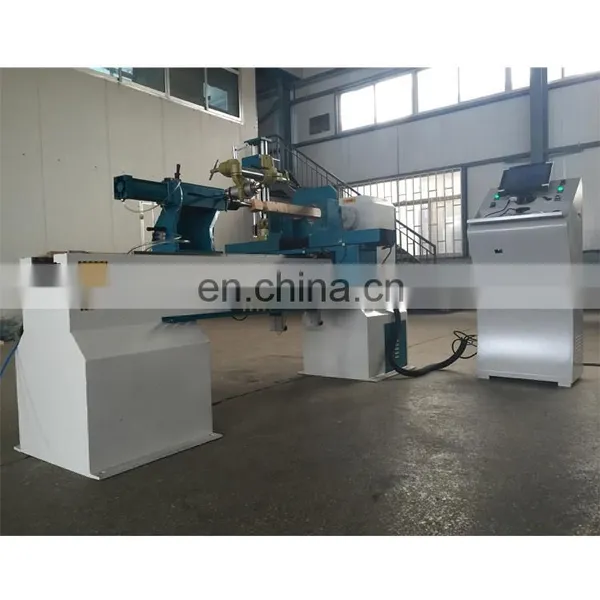

Multifunctional CNC Wood Turning Lathe CNC2504SA Appearance:
Multifunctional CNC Wood Turning Lathe CNC2504SA Description:

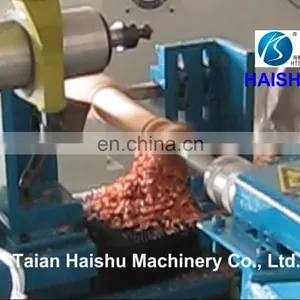

CNC Wood Turning Lathe (also called Wood CNC Machine) CNC1503SA and CNC2504S are the 5 axis multi-functional CNC wood lathe that can finish urning, drilling, engraving and slot processing in one machine. HAISHU Brand CNC wood turning lathe CNC1503SA and CNC2504S are widely used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children’ s bed column, etc.
Multifunctional CNC Wood Turning Lathe CNC2504SA Technical parameter:
Item name |
unit |
parameter |
| CNC2504SA | ||
Max process size |
mm |
Φ400*2500 |
Z axis max travel |
mm |
2520 |
X axis single direction max travel |
mm |
220 |
Main transmission form |
|
Independent spindle, frequency change speed |
Spindle speed range |
r/min |
0-3500 |
Feed bar speed |
mm/min |
3000 |
Chuck diameter |
mm |
Φ160 |
Motor power |
kw |
5.5 |
Electric power |
|
380V/50HZ |
Machine size(l*w*h) |
mm |
3750*1400*1700 |
Machine net weight(Kg) |
kg |
1800 |
Multifunctional CNC Wood Turning Lathe CNC2504SA Characteristics
1, Horizontal lathe bed structure.
2, Spindle frequency conversion stepless speed regulation.
3, X/Z axis adopts stepper drive.
4, Lathe bed guide rail for high precision wire gauge.
5, Precision ball screw, automatic pressure lubrication.
6, Double location tool post, coarse and fine machining one-time complete.

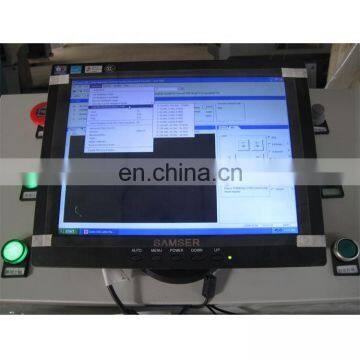

7, Control system adopts the mature CNC controller, 12 inches color screen, the international standard NC language G code, support for multiple software, support technical function extension.
8.Five-axis multi-function, complete car, milling, engraving, groove, and other functions.

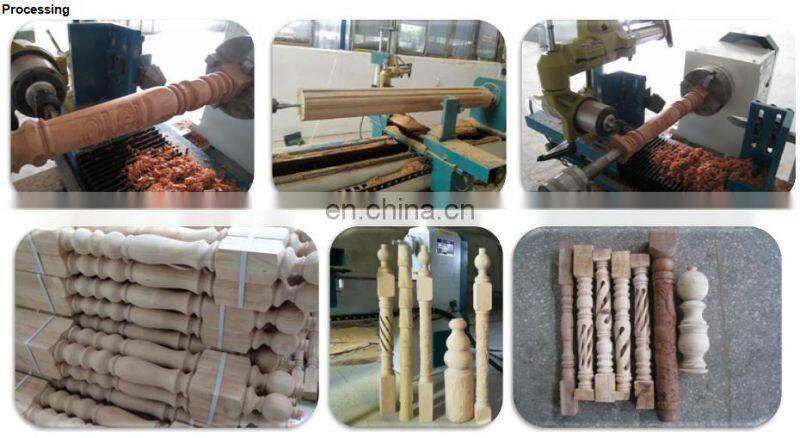

Multifunctional CNC Wood Turning Lathe CNC2504SA Usage:
Processing: staircase column, bending round, vases, table legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator wood products or semi-finished wood products.

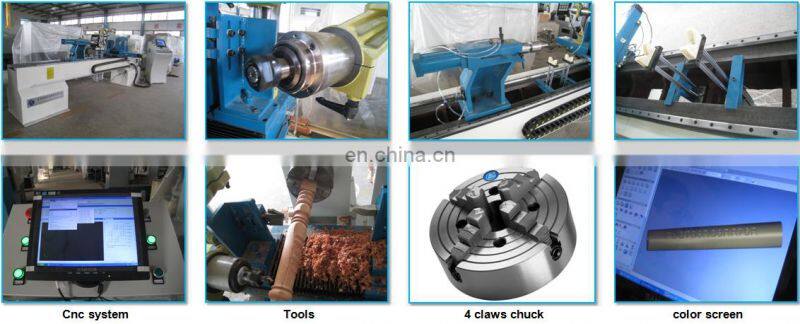

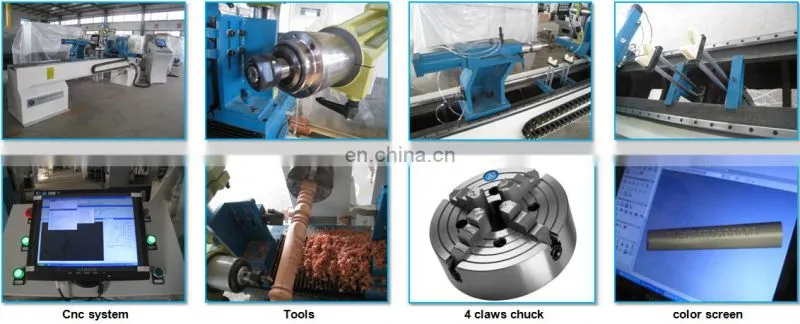

Professional Wood Carving and Turning Machine CNC2504SA Main parts:
Professional Wood Carving and Turning Machine CNC2504SA Standard configuration:

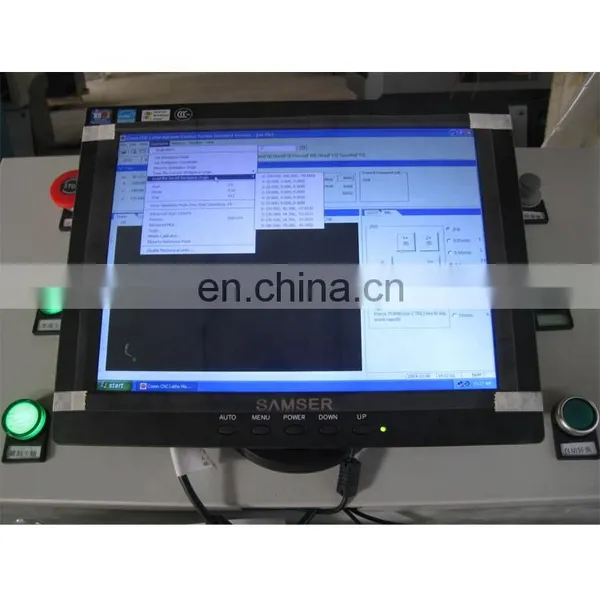

1, 12 inches color screen, built-in CNC computer.
2, Imported linear guide, precision ball screw.

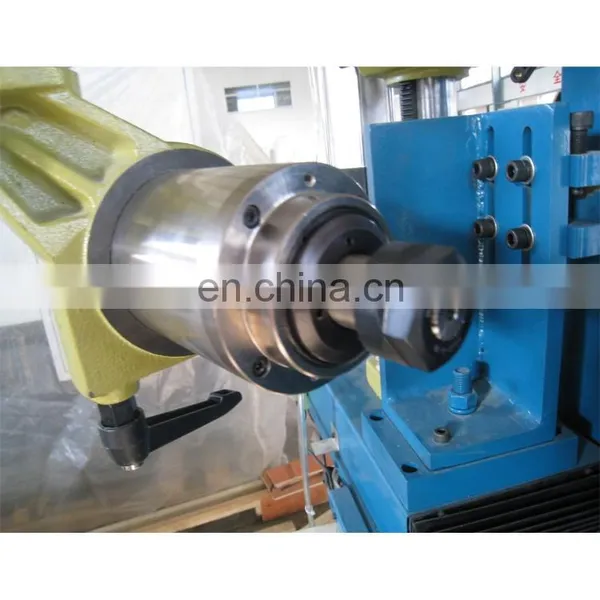

3, Carved slot multiple spindle and the control part.
4, Universal rotary joints.

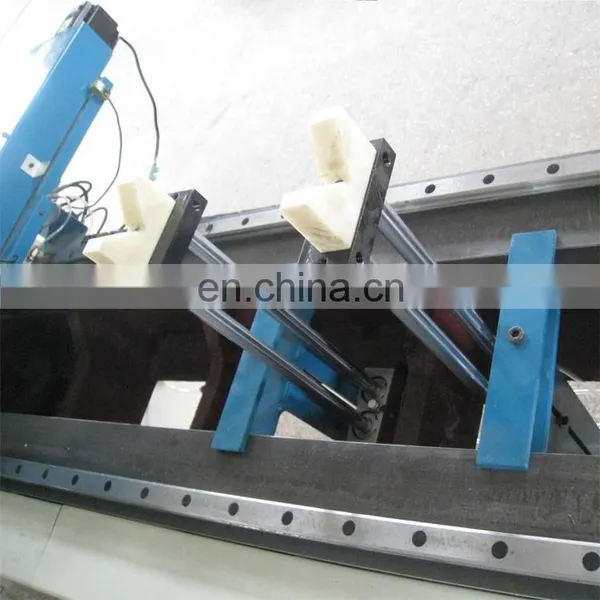

5, Rotary center follow rest (5~6 cm wood square).
6, Pneumatic feeding, automatic centering.

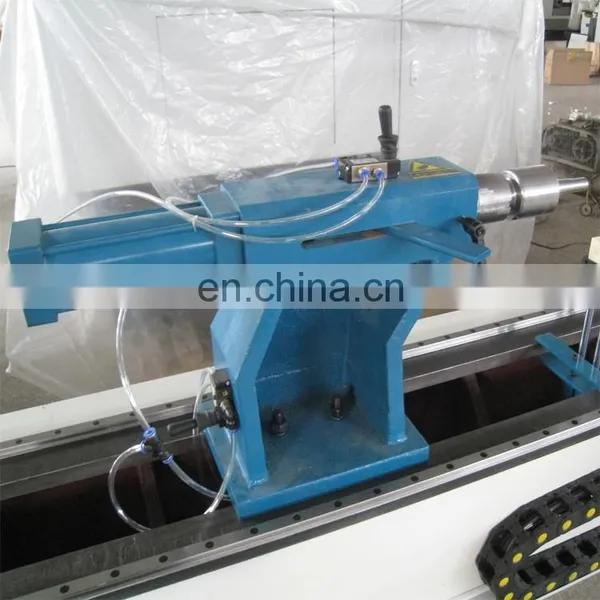

7, Pneumatic pressure plunger.
8, V-shaped front steel lathe tool.
9, Distribution control and easy to use software, the basic design software.
10.Accessories
Professional Wood Carving and Turning Machine CNC2504SA Select the configuration:
1, Four jaw chuck(φ160 mm ).
2, Special vacuum cleaner.
3, 220 V constant power variable frequency spindle control;
Note: Yourself with air, can choose other configuration according to customer's requirement.
Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian Haishu Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative products include CNC lathes, CNC milling machine, CNC machining center, CNC turn mill machine, CNC tool grinding machine, CNC pipe threading lathe, CNC wood lathe, stone CNC machine, CNC root canal file grinder and custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC machine products but also providing custom product design, fabrication and after sale services. Welcome contact us for detailed information.
