VIK-5B Automatic Tool CNC Grinding Machine With Low Price

VIK-5B Automatic Tool CNC Grinding Machine With Low Price thumbnail-1
VIK-5B Automatic Tool CNC Grinding Machine With Low Price thumbnail-2
VIK-5B Automatic Tool CNC Grinding Machine With Low Price thumbnail-3
VIK-5B Automatic Tool CNC Grinding Machine With Low Price thumbnail-4
VIK-5B Automatic Tool CNC Grinding Machine With Low Price thumbnail-5
VIK-5B Automatic Tool CNC Grinding Machine With Low Price photo-1
VIK-5B Automatic Tool CNC Grinding Machine With Low Price photo-2
VIK-5B Automatic Tool CNC Grinding Machine With Low Price photo-3
VIK-5B Automatic Tool CNC Grinding Machine With Low Price photo-4
VIK-5B Automatic Tool CNC Grinding Machine With Low Price photo-5
US$ 150,000 - 85,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAISHU
Place of Origin:
Shandong, China
Model Number:
VIK-5B
Contact Supplier Request Quote Chat Now
Horizontal Lathe Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai ningbo shenzhen dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HAISHU
Place of Origin Shandong, China
Model Number VIK-5B
Type Other
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Weight 5000KG
Voltage 380V50HZ
Condition New
Power(W) 30KW
CNC or Not CNC
Max. Grinding Length 340MM
Max. Grinding Diameter 345MM

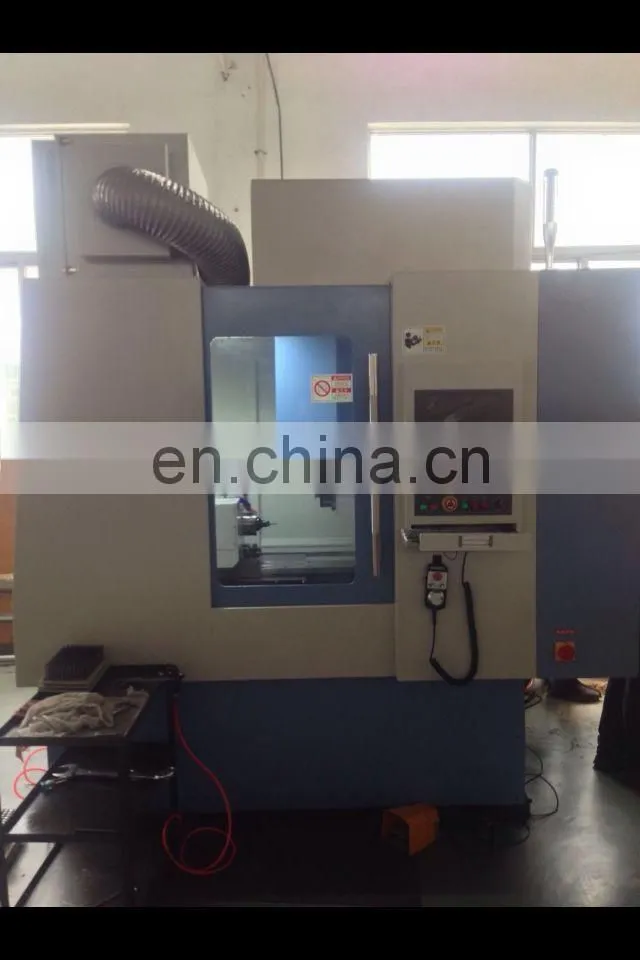

  VIK-5B Automatic tool CNC grinding machine with low price

VIK-5B Automatic tool CNC grinding machine with low price























































Features:

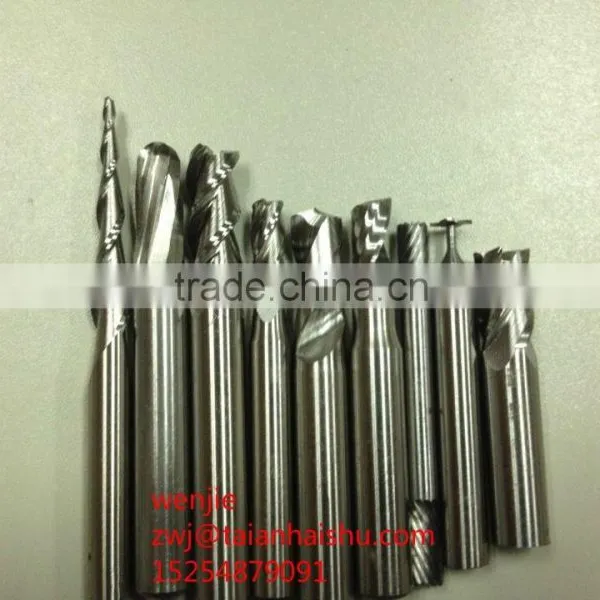

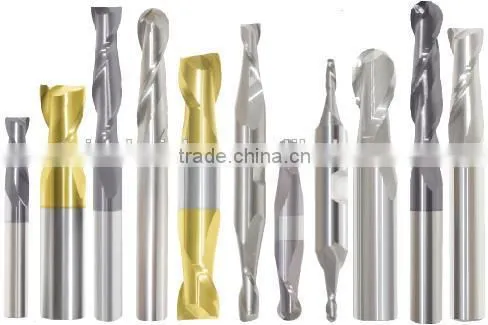

VIK-5B 5 axis CNC tool grinding machine can manufacturing and grinding end mill, ball-cutter, step drills, reamers, Gun drilling, toothed knives, files, medical tools, CNC blades, woodworking tools and more.

VIK-5B Automatic tool CNC grinding machine with low price

Technical parameters:

Linear axis travel

X:340/Y:290/Z:220

Linear axis fast moving speed

15m/min

Linear axis resolution

0.001mm

A-axis travel / speed

360°/30rpm

C-axis travel / speed

215°/16rpm

Rotary axis resolution

0.001°

A axis Pneumatic clamping range

Collet 0.3-28mm(optional)

Max workpiece diameter

345mm

Max workpiece length

500mm

Max grinding wheel diameter

170mm

Grinding electricity Spindle power

12.5KW(20KW)

Grinding electricity Spindle speed

9000rpm

Total power

30kw

Machine size

2255*1650*2400mm

Total equipment weight

6T









 VIK-5B Automatic tool CNC grinding machine with low price



Why choose taian haishu cnc tools machine?

VIK-5B Automatic tool CNC grinding machine with low price



how to buy taian haishu cnc tools machine??

VIK-5B Automatic tool CNC grinding machine with low price
