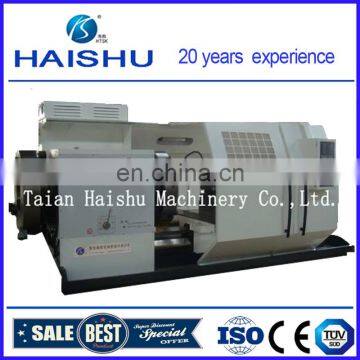

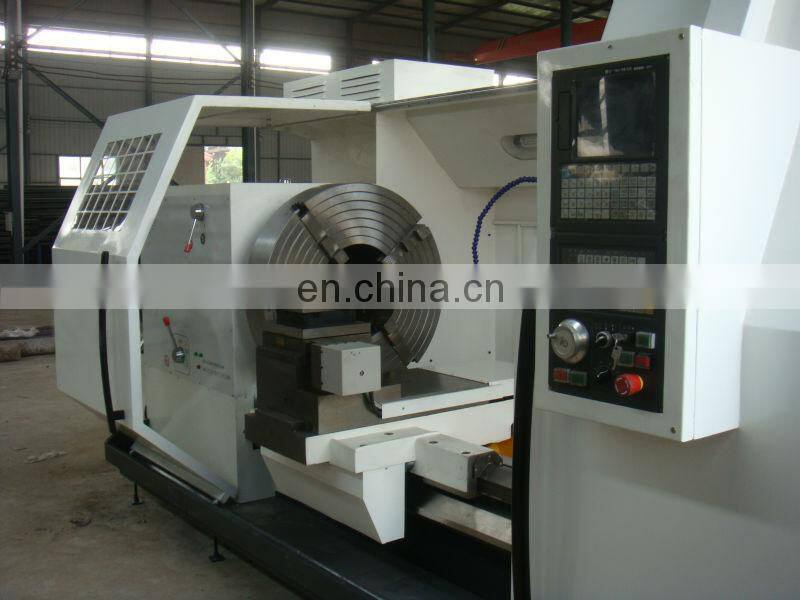

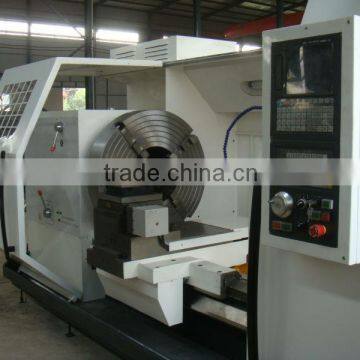

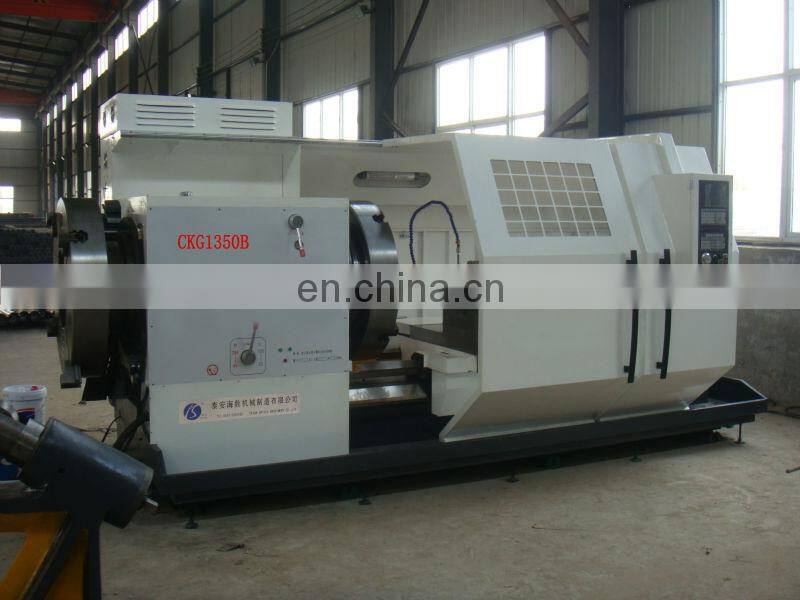

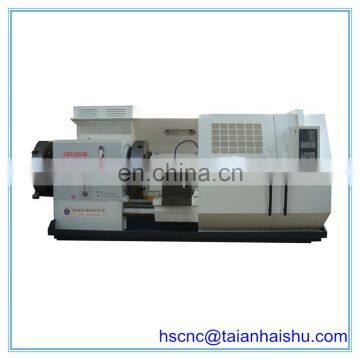

new cnc pipe threading machine CKG1350B for oil country Oilfield drill pipe
Standard configuration
CNC system :GSK980 ,
The spindle two gears frequency conversion speed,

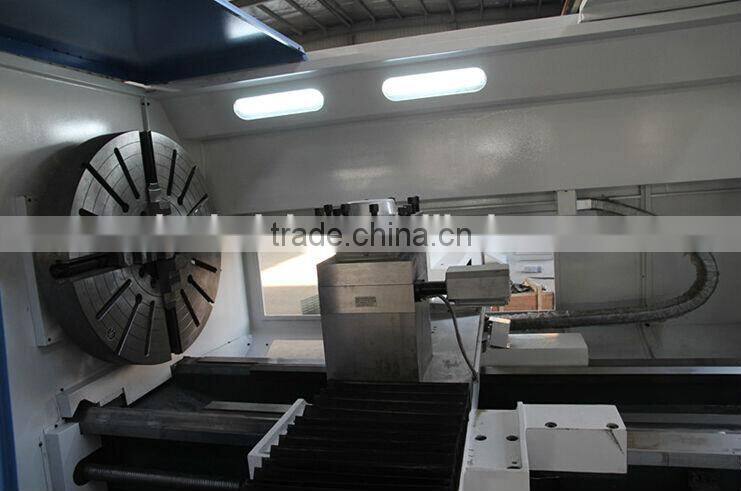

Front and rear four-jaw electric chuck,
Vertical four-position electric turret,
With tailstock,
Automatic lubrication system,
Turning cooling system.
Select Configure
CNC system :KND, Siemens, Fanuc,
Manual chuck, pneumatic chuck, hydraulic chuck,
Horizontal six-position electric turret,
The rear bracket.
Technical parameters
Item | Unit | Specification | |

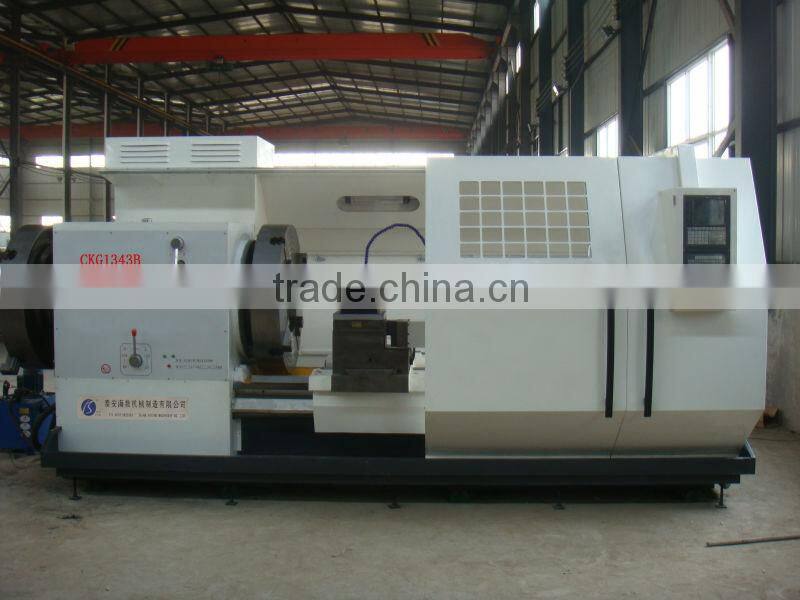

CKG1343B | CKG1350B | ||
Processing pipe thread diameter range | mm | φ270-435 | φ270-500 |
Maximum workpiece swing diameter over bed | mm | 1000 | |
Maximum workpiece swing diameter skateboard | mm | 610 | |
Maximum distance between centers | mm | 1500 | |
Bed rail width | mm | 755 | |
Maximum distance across the dual chuck | mm | 1940 | |
Spindle bore diameter | mm | φ445 | φ510 |
Spindle speed mode | mm | Tow steps,Frequency stepless | |
Spindle speed range | rpm | Low-grade: 23-1 High-grade: 65-340 | |
Main motor power | KW | 22 | |
Clamping motor power | KW | 3 | |
X/Z axis rapid traverse rate | m/min | 4/6 | |
X/Z axis servo motor torque | Nm | 15/22 | |
X/Z axis repeat positioning accuracy | mm | 0.012/0.016 | |
X-axis maximum stroke | mm | 450 | |
Tailstock quill diameter | mm | φ140 | |
Tailstock sleeve taper |
| MT6 | |
Tailstock sleeve maximum stroke | mm | 300 | |
Cooling pump power | KW | 0.125 | |
Automatic lubrication interval time | min | 12 | |
Dimensions (L × W × H) | mm | 5000×2100×1650 | |
machine weight | kg | 13000 | |
